DMA-1275 High Efficiency 12-Channel Amplifier
Details
Here is a quick overview of the product features- the key word is "flexibility":
- 12 channels of full-range digital amplification (operates significantly cooler than most multi-channel amplifiers)
65 watts RMS per channel into 8 ohms with all channels driven
100 watts RMS per channel stable into 4 ohms - Each channel is stable to 4 ohms, so you can safely connect two 8 ohm speakers to each channel for a maximum of 24 speakers; example: 6 stereo zones with up to four speakers in each zone
- 2 side-by-side channels can be bridged to create a single 140 watt channel (8 ohms only)
- You decide the combination of 65 watt and 140 watt channels (up to 6 channels at 140 watts each) into 8 ohm load

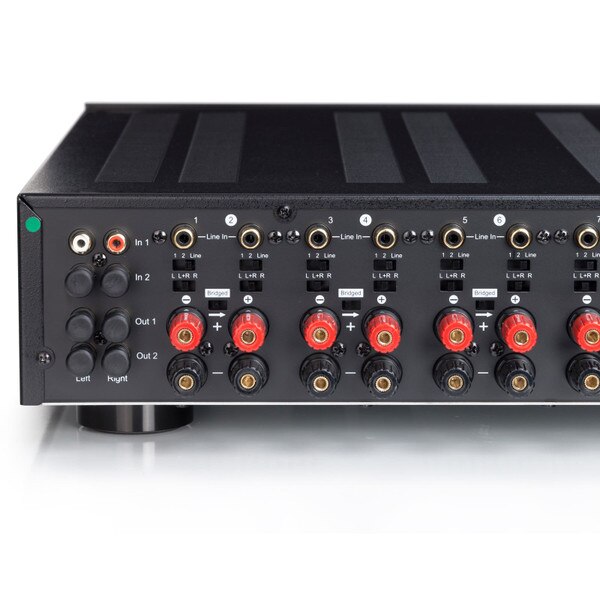

- Two stereo inputs are available to every channel
- A separate input is also available unique to each channel (for whole-house audio)
- Each channel can independently be selected to play the left, right, or combination (mono) of Inputs 1 and 2

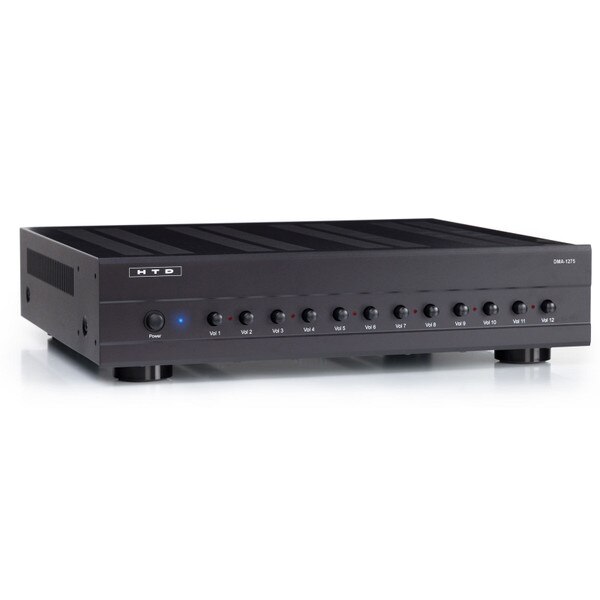

- Maximum volume output for each channel can be easily adjusted from the front panel so that you can balance overall sound levels throughout your home (example- limit how loud the speakers can play in your kids' rooms)
- All connections are gold-plated for optimum performance

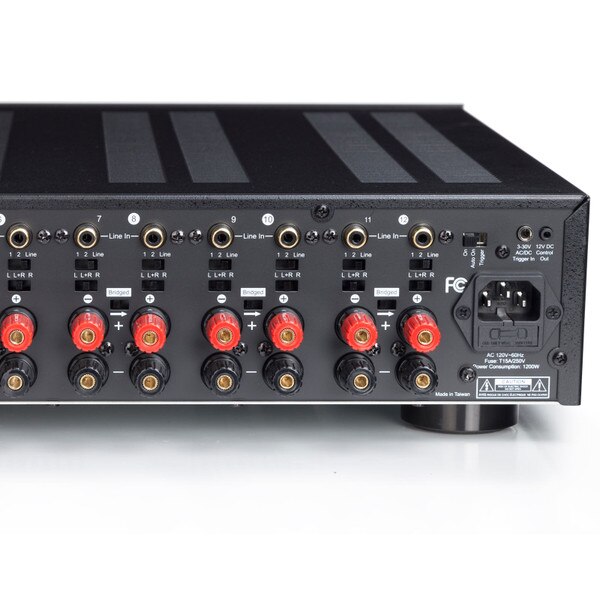

- Amplifier can be turned on and off manually or automatically as needed when an input signal, or trigger (for whole-house audio) is detected
- Protection circuitry and signal lights make sure you don't overload each channel with too many speakers (a channel will go into protect mode if the impedance drops too low)

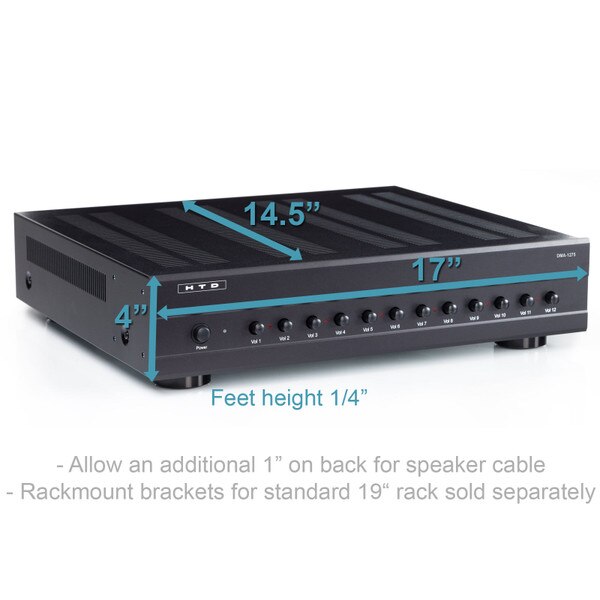

- Dimensions (HxWxD): 4" x 17" x 15.75" not including power cable and volume knobs- Add 1" in back and front for proper clearance
- Weight: 19 lbs

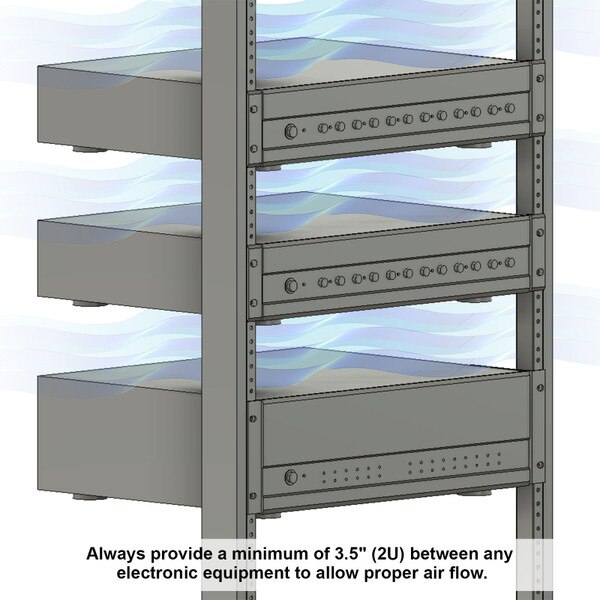

- Top vented: allow 4" of space above and adequate air flow around amplifier
- Stand-by power consumption: 5 watts
- Color: Dark Charcoal Black
- Rack-mount brackets sold separately
