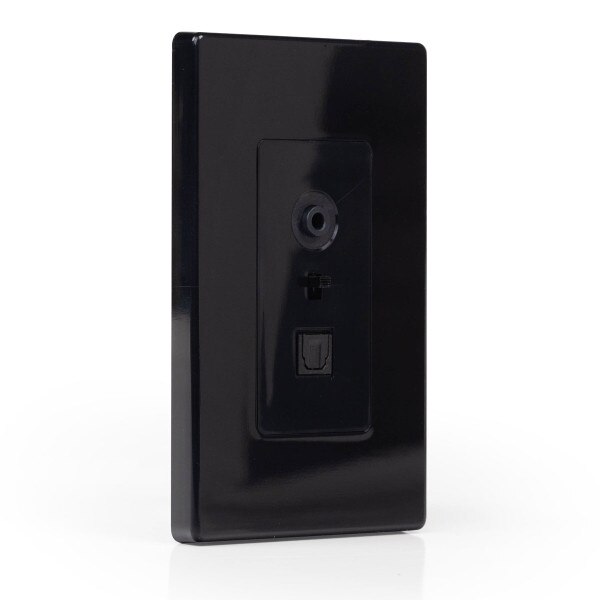

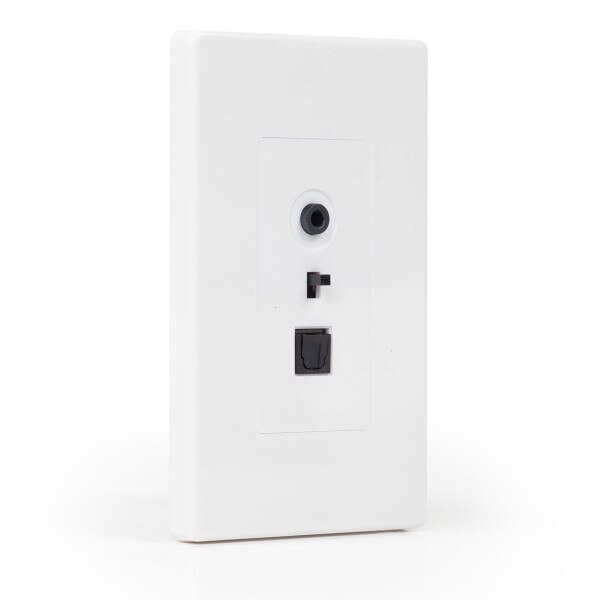

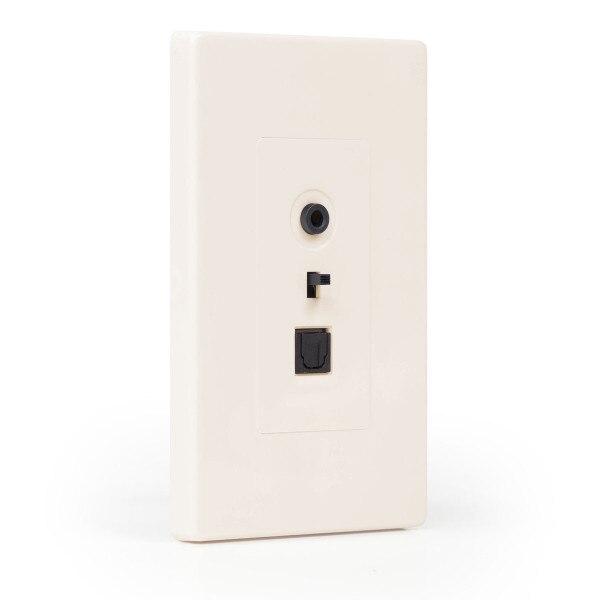

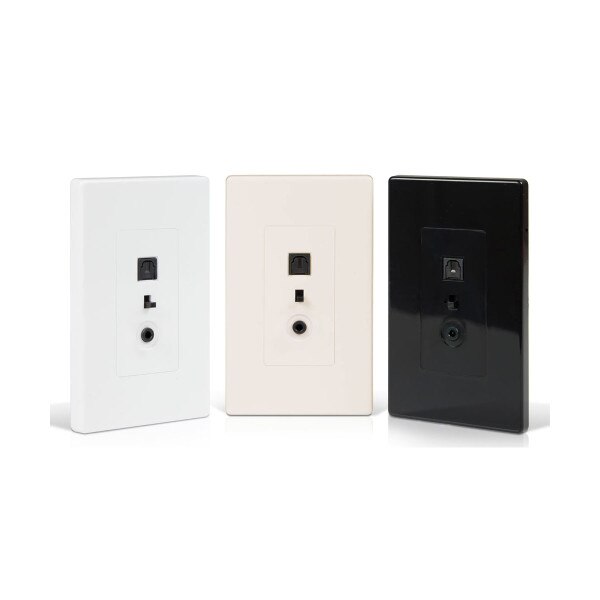

Flexible Input Panel (FLIP)

One of the features that sets Lync apart from other whole-house audio systems is the ability to easily connect audio sources, not only at the central location, but also at convenient connection points spread throughout the home.

You can add analog, digital, or wireless Bluetooth input locations throughout your home. The sources you connect to any of these input panels are then available to all zones in your home.

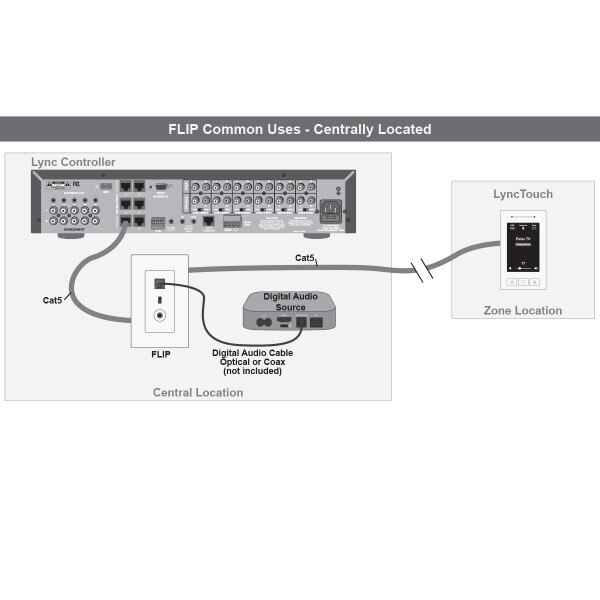

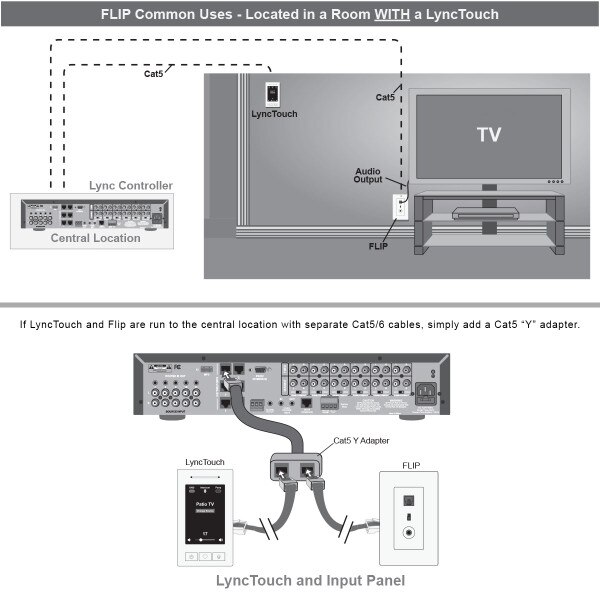

The Flexible Input Panel (FLIP), Analog Input Panel (AIP), and Bluetooth Input Panel (BIP) can be connected directly to the central Lync controller or to the back of a LyncTouch using standard Cat 5 or higher cable.

The FLIP, AIP, and BIP get their power from the centrally located Lync 6 or Lync 12 over the same, single Cat cable that connects the device into the Lync system.

Set the switch on the FLIP to use either the digital or analog input.  In most cases, this is a set-it-and-leave-it setting. However, it is possible to connect one analog and one digital source at the same time and “flip” between the two as needed.  Only the source selected is available to the Lync system.

When connecting a TV to the digital input on this device, set your TV audio output format to PCM stereo.

Only one FLIP, AIP, or BIP can be connected to each zone.

Please read the Owner's Manual or contact us if you need further clarification.
