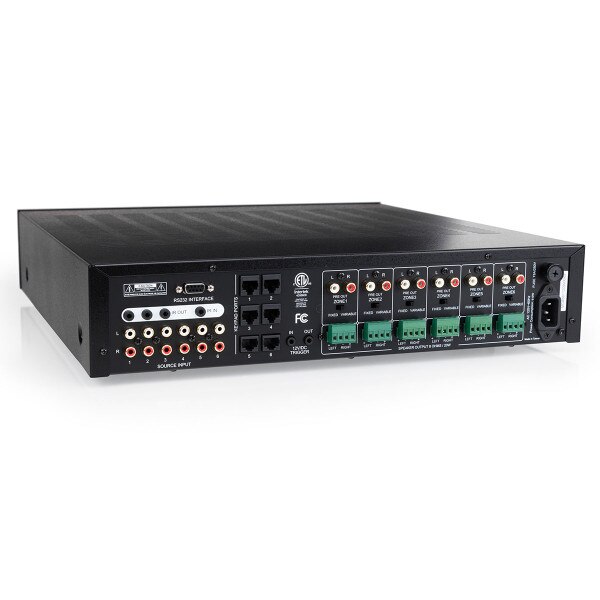

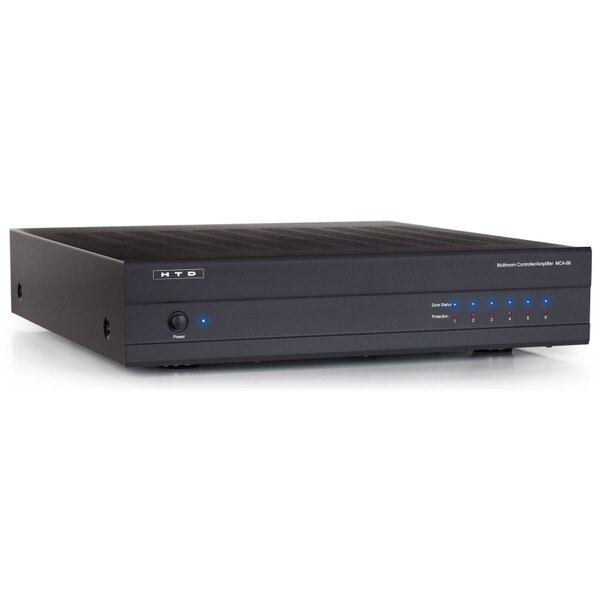

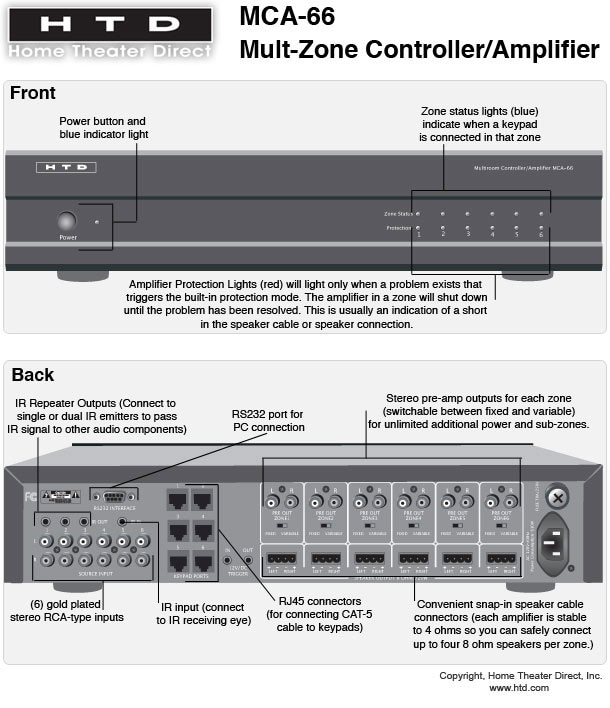

MCA-66 Multi-Zone Controller/Amplifier

Related Videos

Mid-Level Audio System Video
This video contains information related to the Mid-Level Whole-House Audio System and its features.


6 stereo zones

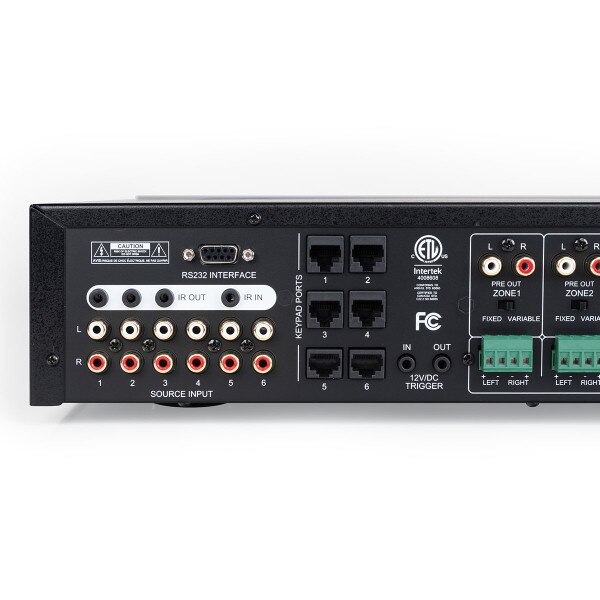

6 RCA-type stereo source inputs
Built-in amplification with 12 channels of 20 Watts RMS per channel into 8 ohms (40 watts per zone);

30 Watts RMS per channel into 4 ohms (60 watts per zone)
Each amplifier channel is only active while the source selected is active, keeping power consumption to a minimum
Amplifier Class A/B design ensures best sound throughout the full frequency range, 20Hz - 20kHz
4 speakers (2 pairs) of 8 ohm speakers can be connected to each zone, without the use of sub-zones

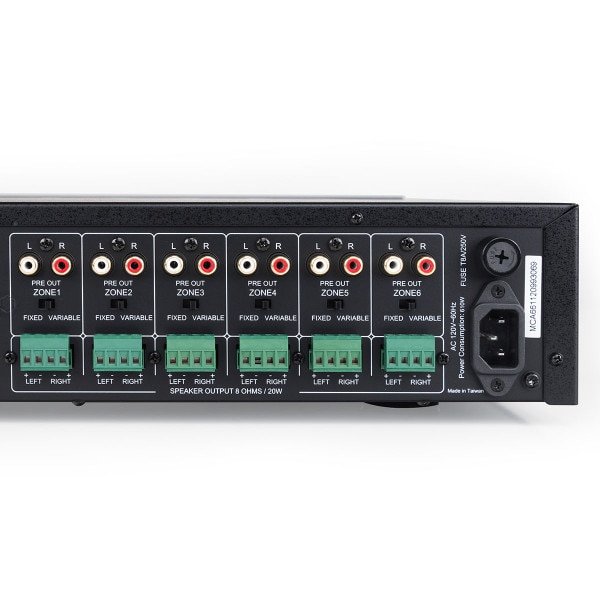

Unlimited number of sub-zones can be added using the stereo RCA-type pre-amp outputs in each zone (switchable between Fixed and Variable)

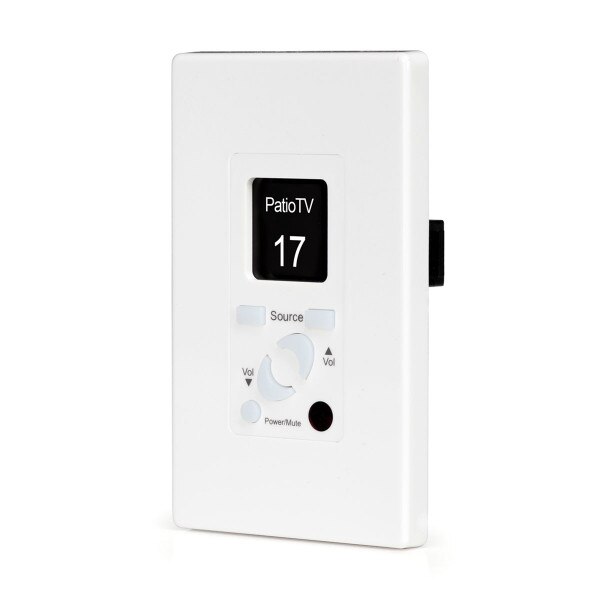

KC6 Keypads (sold separately) connect via Cat-5 cable and RJ-45 connectors
RS232 connection for optional computer software control (FREE software included)
(3) IR emitter outputs - use 3 dual emitters (sold separately) to control up to 6 sources
IR signals sent to the KC6 Keypads are passed through the MCA-66 via the 3 IR emitter outputs
(1) IR input for connecting an IR receiving eye (sold separately) directly to the MCA-66 (for passing IR signals out the IR emitter outputs)

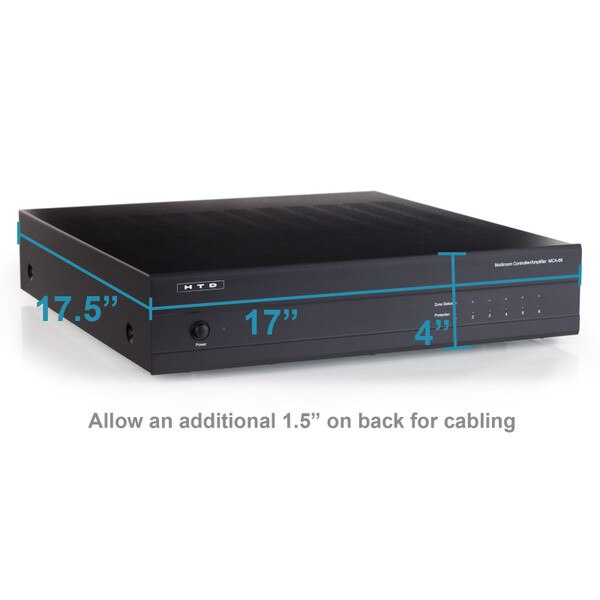

Dimensions (HxWxD): 4" x 17" x 17 1/2"
Weight (per piece): 30 lbs
Includes detachable power cable
