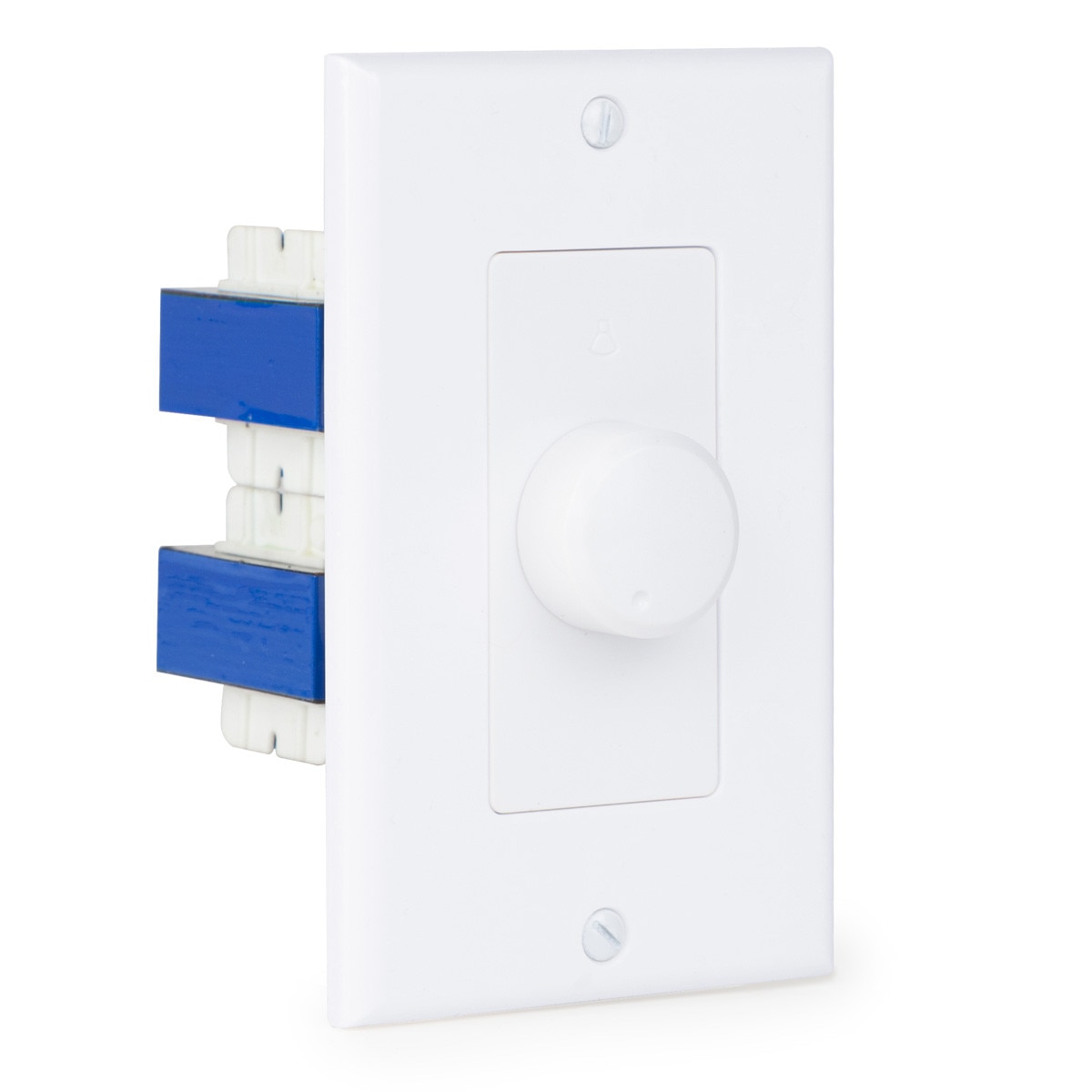

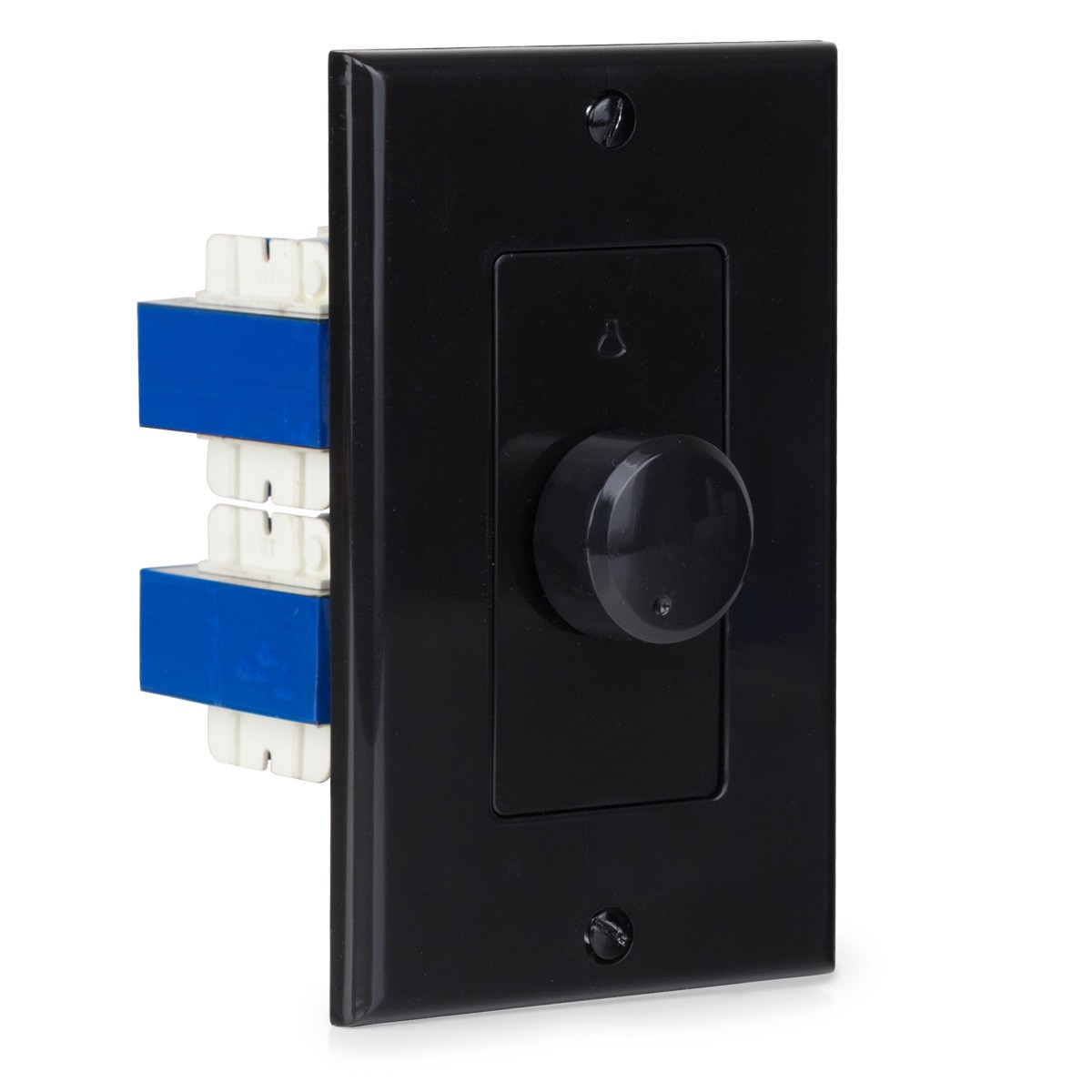

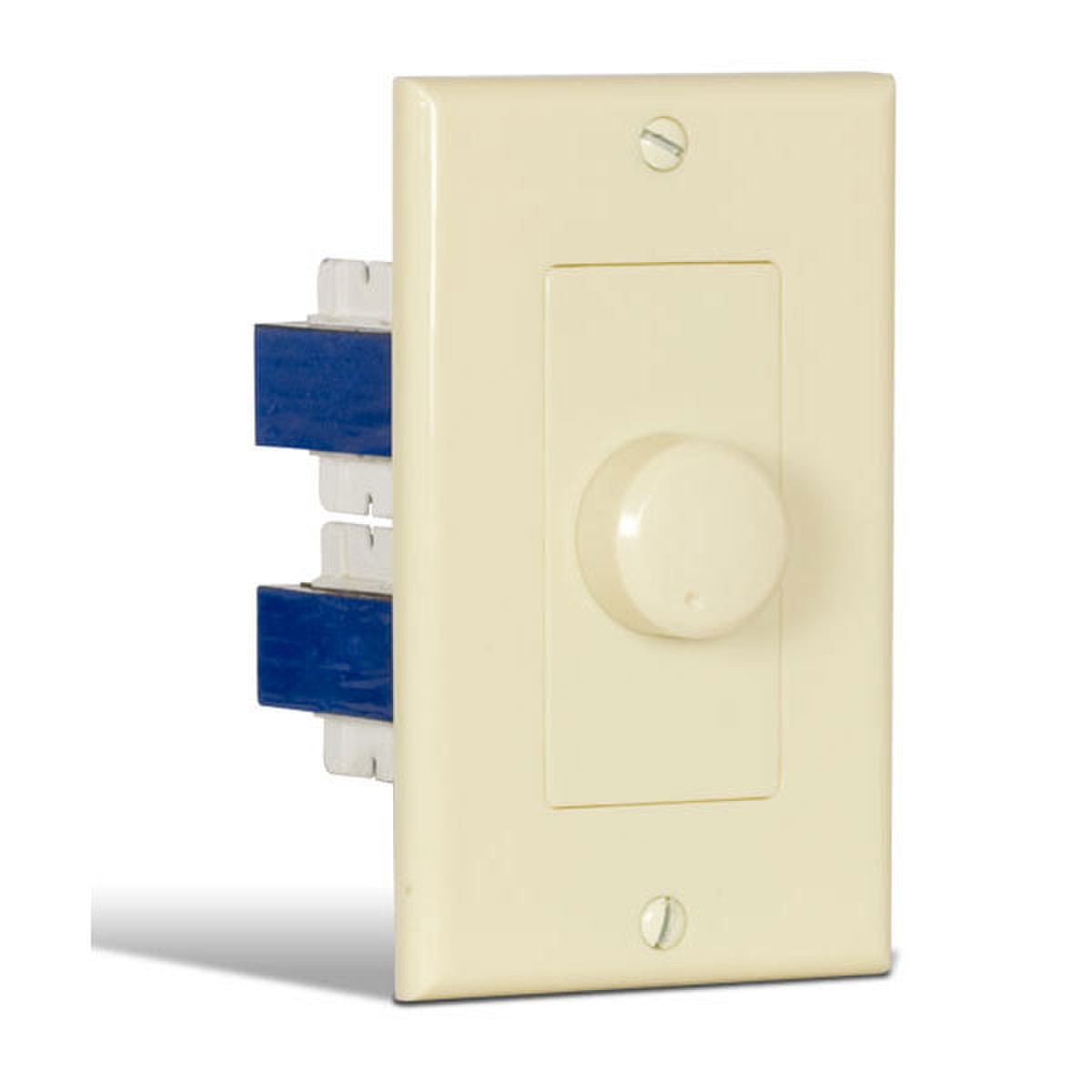

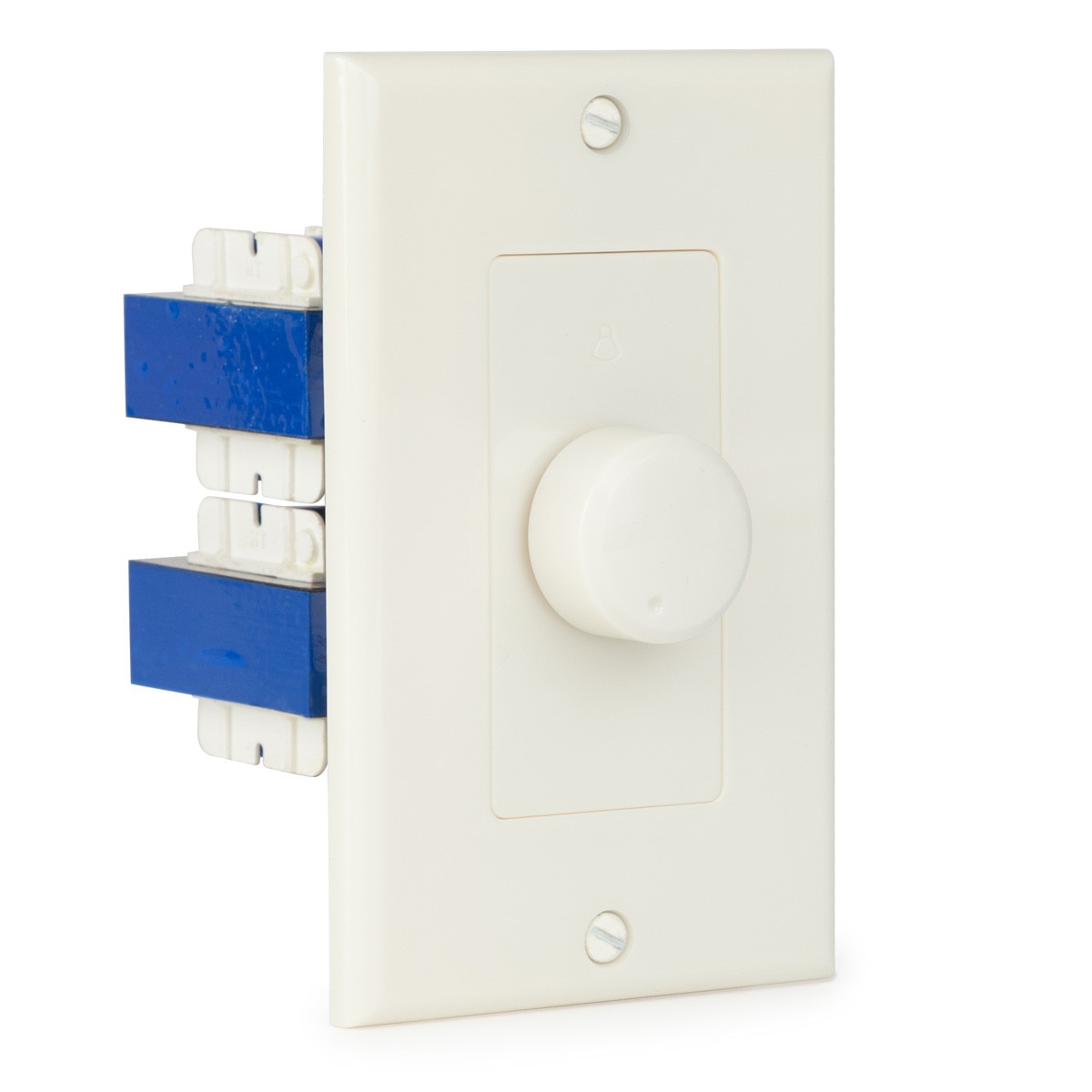

Stereo Volume Control - Rotary Type
Our high-power-handling stereo volume control with a low-profile knob has a tranformer-based design that allows you to connect multiple pairs of speakers to the same volume control, or each pair to its own volume control, while maintaining a safe impedance level for your receiver or amplifier.
Stereo Volume Control - Rotary Type - White is backordered and will ship as soon as it is back in stock.
Warranty
Warranty
All HTD speakers carry a FIVE YEAR WARRANTY on both parts and labor. All HTD electronics, including our whole-house audio products and subwoofer amplifiers, carry a TWO YEAR WARRANTY on both parts and labor. Visit our Warranty Page for details.
Guarantee
Guarantee
You have 30 days to audition our equipment and return for a full refund. Visit our Guarantee Page for details.
Returns & Exchanges
Returns & Exchanges
HTD products are proudly backed by our 30-Day Guarantee and our 2-5 Year Warranty. Visit our Returns Policy Page for additional returns information.
Delivery and Shipping
Delivery and Shipping
Get *FREE FedEx Ground shipping, including FedEx Home Delivery, on orders over $750 that are delivered to the contiguous 48 states. Ground shipments to Canada are capped at $60. Visit our Shipping Page for details.
Local Pickup available at our Wylie, TX location:
2750 Capital St
Wylie, TX 75098
Usually ready in 2 hours
Contact Us for more information
Stereo Volume Control - Rotary Type
Detailed Description
Detailed Description
This impedance matching stereo volume control is designed for attenuating the volume of one to eight pair of speakers connected to the same stereo amplifier.

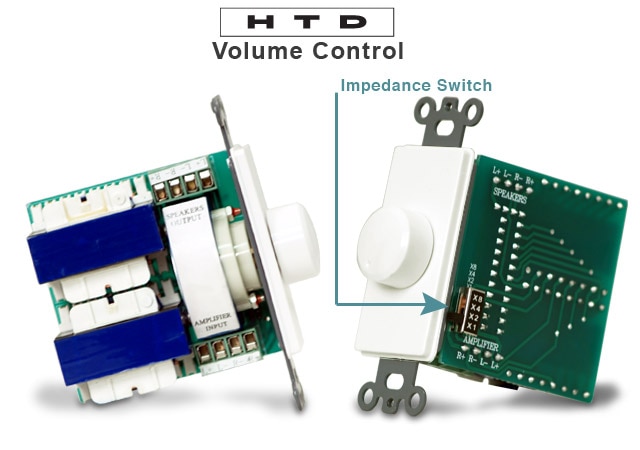

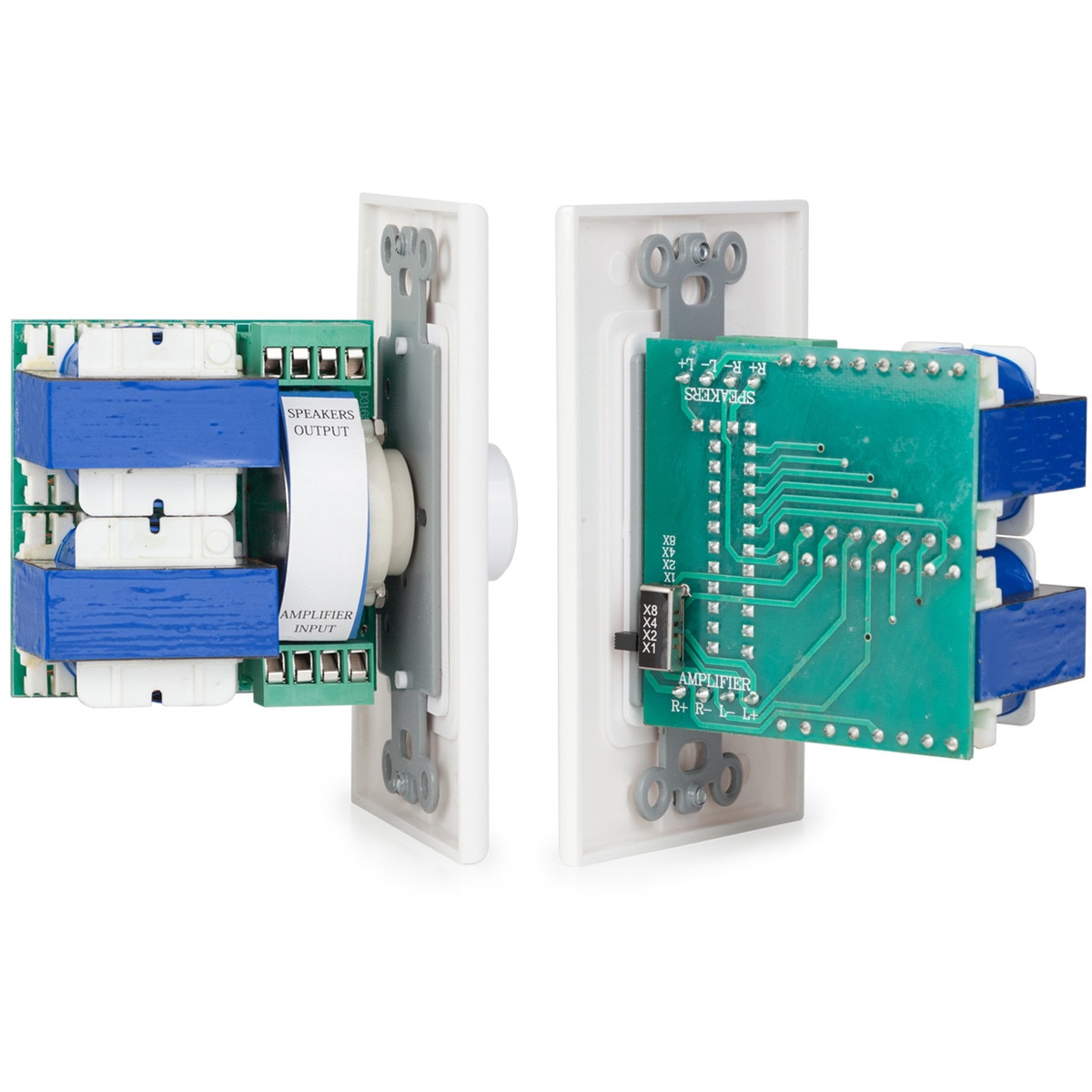

A four position switch, located just behind the Decora-style wall plate, allows you to easily adjust the impedance in multiples of X1, X2, X4, and X8. See the Owner's Manual for details.
Most amplifiers are optimized for 8 ohm speakers but are stable down to 4 ohms. As you combine multiple speakers in parallel (+ to + and - to -) to the same amplifier, the impedance level drops. A properly planned impedance matching scheme utilizing these volume controls, will bring the impedance back up to a safe level for your amplifier.

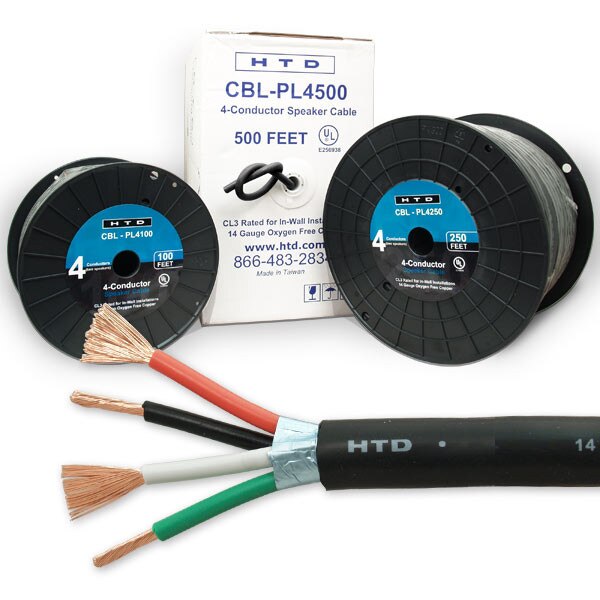

Volume controls are installed "in-line" between an amplifier and speakers. For convenience, 4-conductor speaker cable is often run from the amplifier to the volume control, and separate 2-conductor speaker cables are used to connect the volume control to each speaker.
Volume controls are often utilized with sub-zones of whole-house audio systems, as well as with traditional 4-room and 6-room systems where every room in the home listens to the same source.
Specifications
Specifications
- Control the volume in individual rooms or zones
- Transformer-based design allows you to connect multiple pairs of speakers to the same volume control, or each pair to its own volume control, while maintaining a safe impedance level for your receiver or amp.
- 75 watts RMS power handling, 300 watts program
- Attractive, low-profile knob
- 12 steps of attenuation: all the way counter-clockwise is completely off: all the way clockwise is completely open
- Improved connections for firmly holding up to 14 gauge cable
- Instructions for easy installation included.
- Price includes Decora-style wall plate and hardware

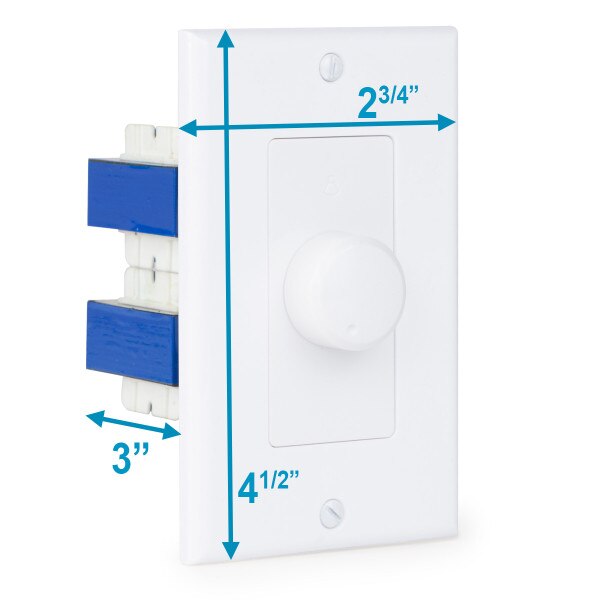

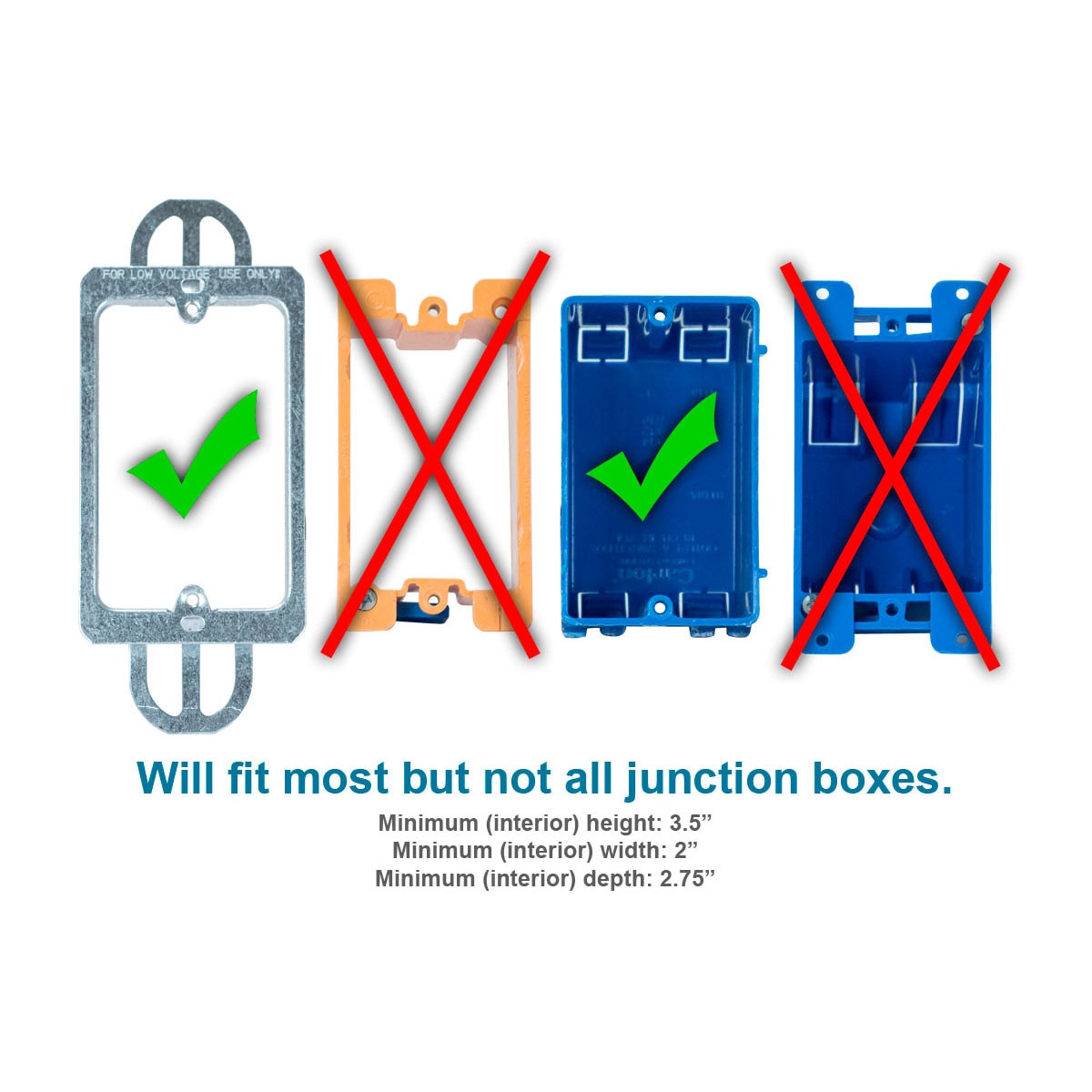

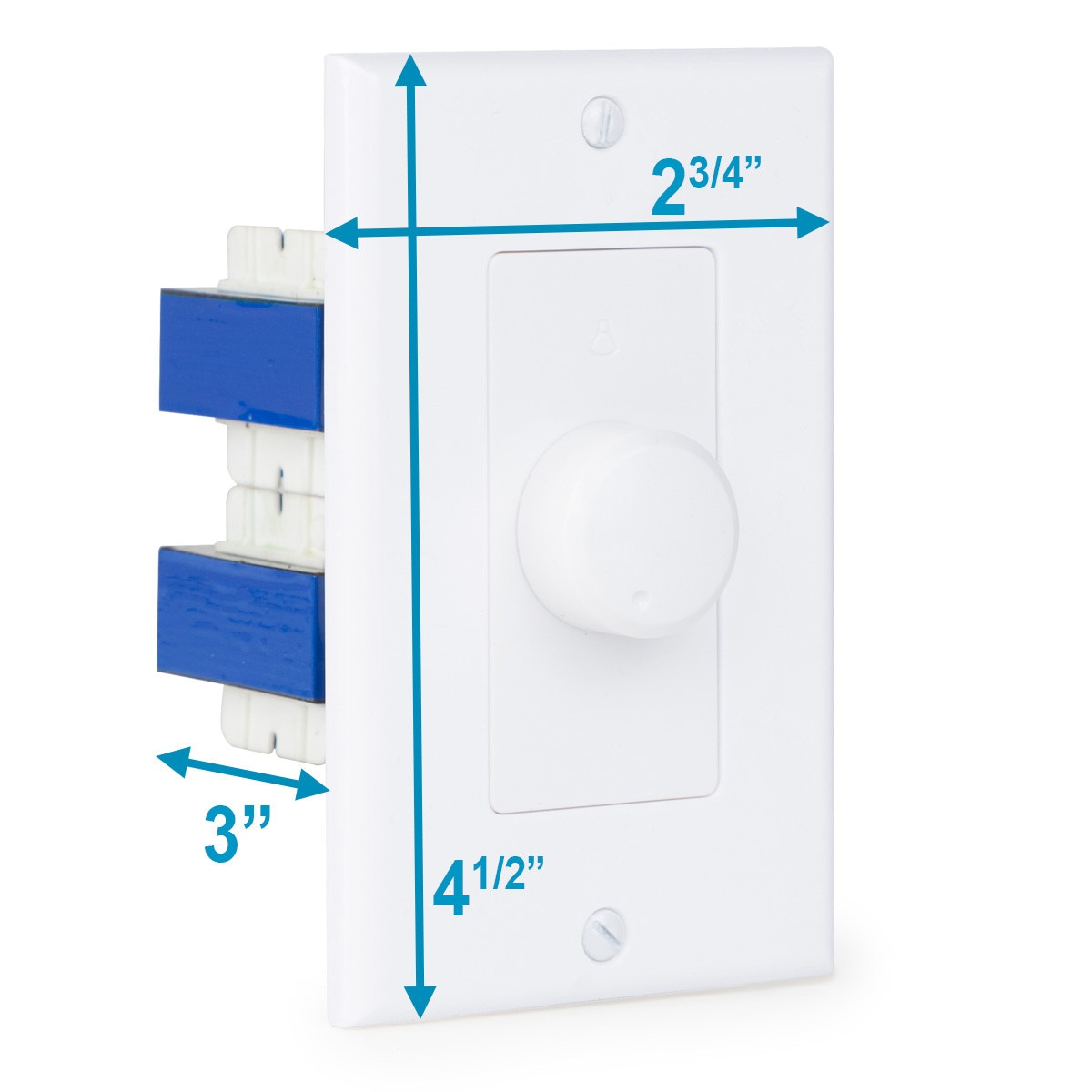

- Fits most plastic electrical boxes with at least 3 1/4" depth
