MC-66 Multi-Zone Controller
Our new MC-66 is a 6-source, 6 zone controller. Add a 12-channel amp and KC6 or KC7 keypads for a feature rich, great sounding system.  Each zone independently selects the source it wants to hear.

This controller is easy to install and is amazingly affordable considering all of the features, including:
  • Stylish backlit keypads, model KC6 or KC7 (sold separately)
  • Variable AND Fixed ouputs for every zone
  • IR control and pass-through
  • Party mode (turn all zones on/off from any keypad)
  • Tone control (bass, treble, balance) for each zone
  • Optional computer interface and free software
  • And much more . . .


$399.00



bullet   Tell a friend
bullet   View Complete Systems
bullet   Download Software
owner's manual icon   Owner's Manual


The MC-66 is the most affordable whole-house audio controller available that includes these features and this high level of build-quality. Add a KC6 or KC7 keypad into each zone and/or use a computer with the built-in RS-232 interface to send and receive signals to and from the controller.

Add an HTDNET-MC to your home's existing wifi network and multiple users can control individual and groups of zones from any device with an HTML browser, including smart phones and tablets.

Use the pre-amp outputs in each zone to connect to one of our multi-channel amplifiers and easily connect up to four 8-ohm speakers into any zone. Use the "variable" outputs to allow volume control from the keypads or HTDNET-MC. Use the "fixed" outputs in combination with additional amplifier channels and in-line volume controls to achieve independent volume control of speakers added to as many sub-zones as you need. You can also use the fixed outputs to send the source selected in a zone into your existing stereo or home theater receiver.

If you need more than six unique zones, simply add an additional MC-66, multi-channel amplifier and keypads. In fact, there really is no limit to the number of zones achievable with this system.

The MC-66 gives your home a high-tech and easy-to-use way of controlling the audio ambience throughout different zones in your home. A whole-house audio system will add value to your home and with our low direct pricing, it's an especially good investment.

30-day guarantee; 2-year warranty
6 stereo zones
6 stereo source inputs
Pre-amp outputs (switchable between Fixed and Variable) for each zone
KC6 Keypads (sold separately) connect via Cat-5 cable and RJ-45 connectors
RS232 connection for optional computer software control (FREE software included)
(3) IR emitter outputs - use 3 dual emitters (sold separately) to control up to 6 sources
IR signals sent to the KC6 Keypads are passed through the MCA-66 via the 3 IR emitter outputs
(1) IR input for connecting an IR receiving eye (sold separately) directly to the MCA-66 (for passing IR signals out the IR emitter outputs)

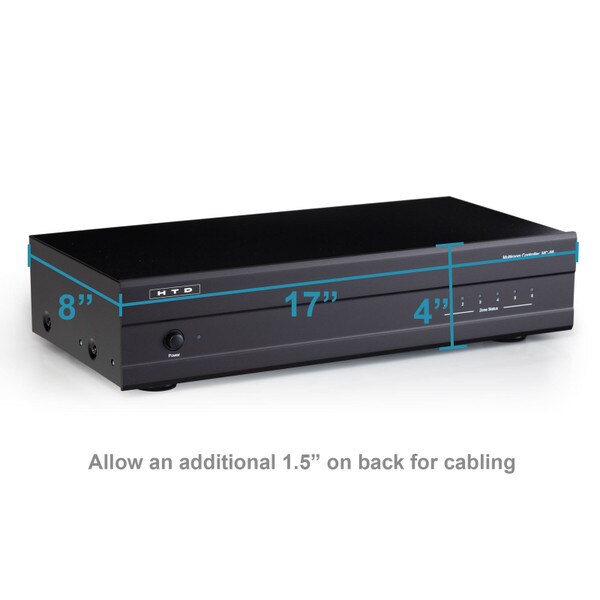

Dimensions (HxWxD): 4" x 17" x 8"
Weight (per piece): 10 lbs
Includes detachable power cable
