LyncTouch

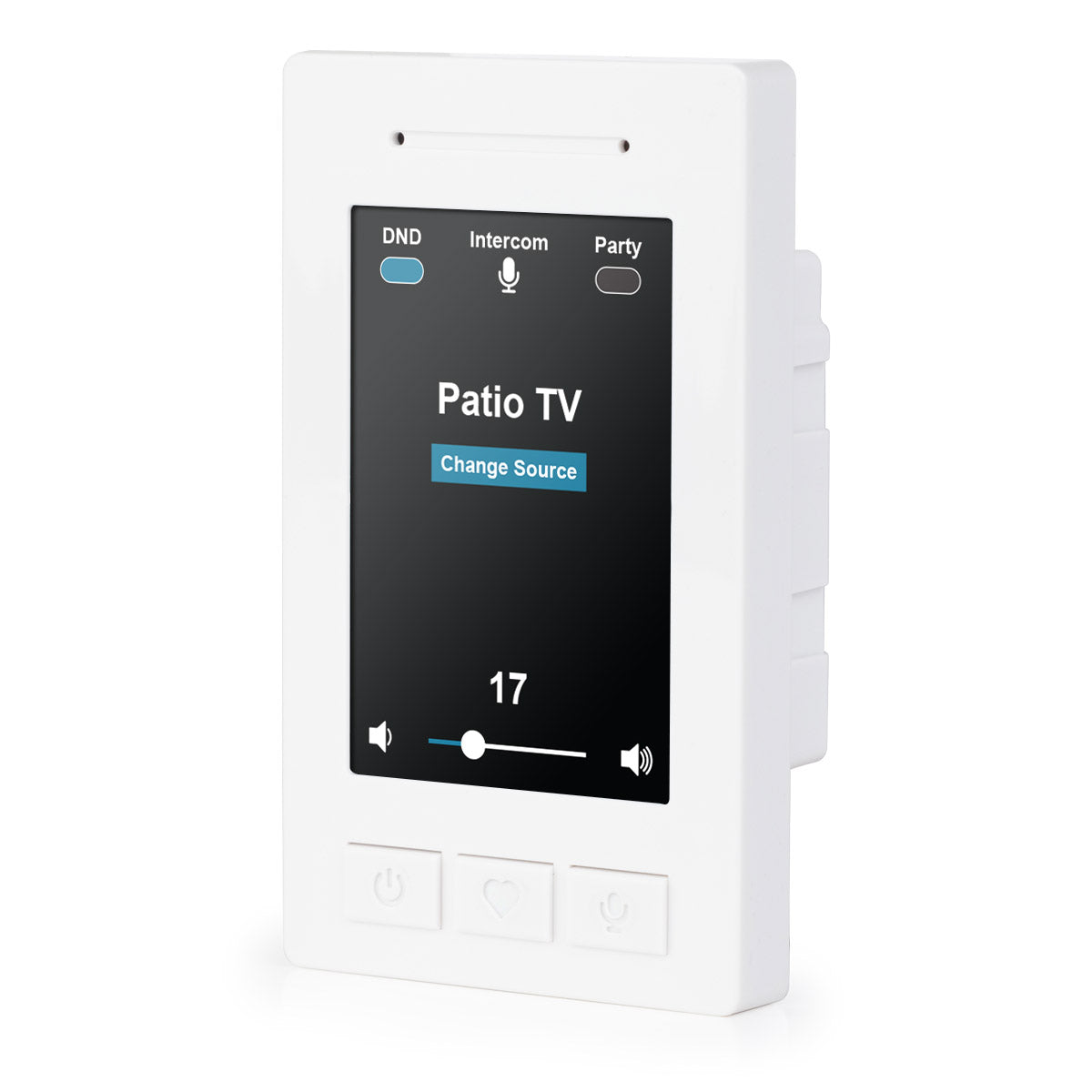

As the name implies, LyncTouch is our wall-mounted, touch-based control pad for use with all Lync whole-house audio systems. Use Cat 5 or higher cable to connect the LyncTouch to the keypad port of the zone you want to control on your centrally-located Lync 6 or Lync 12 controller.
Select a source, adjust the volume, and intercom with individual or all zones. Other key features include: mute, "party mode", all-off, and DND.
A single press of the center button quickly powers the zone on to your favorite source at your preferred volume. Select a unique color scheme and separately set the brightness of the screen when active and in sleep mode (including the option for the screen to be completely dark).
Use Cat 5 or higher cable to easily daisy-chain a second LyncTouch and/or attach a Lync Input Panel (sold separately) anywhere in the zone.
If you already have a hole cut for a double-gang junction box, please select the LyncTouch - Double Gang
LyncTouch - White is backordered and will ship as soon as it is back in stock.
Warranty
Warranty
All HTD speakers carry a FIVE YEAR WARRANTY on both parts and labor. All HTD electronics, including our whole-house audio products and subwoofer amplifiers, carry a TWO YEAR WARRANTY on both parts and labor. Visit our Warranty Page for details.
Guarantee
Guarantee
You have 30 days to audition our equipment and return for a full refund. Visit our Guarantee Page for details.
Returns & Exchanges
Returns & Exchanges
HTD products are proudly backed by our 30-Day Guarantee and our 2-5 Year Warranty. Visit our Returns Policy Page for additional returns information.
Delivery and Shipping
Delivery and Shipping
Get *FREE FedEx Ground shipping, including FedEx Home Delivery, on orders over $750 that are delivered to the contiguous 48 states. Ground shipments to Canada are capped at $60. Visit our Shipping Page for details.
Local Pickup available at our Wylie, TX location:
2750 Capital St
Wylie, TX 75098
Usually ready in 2 hours
Contact Us for more information
LyncTouch
Detailed Description
Detailed Description
Patent No. U.S. 11,437,755

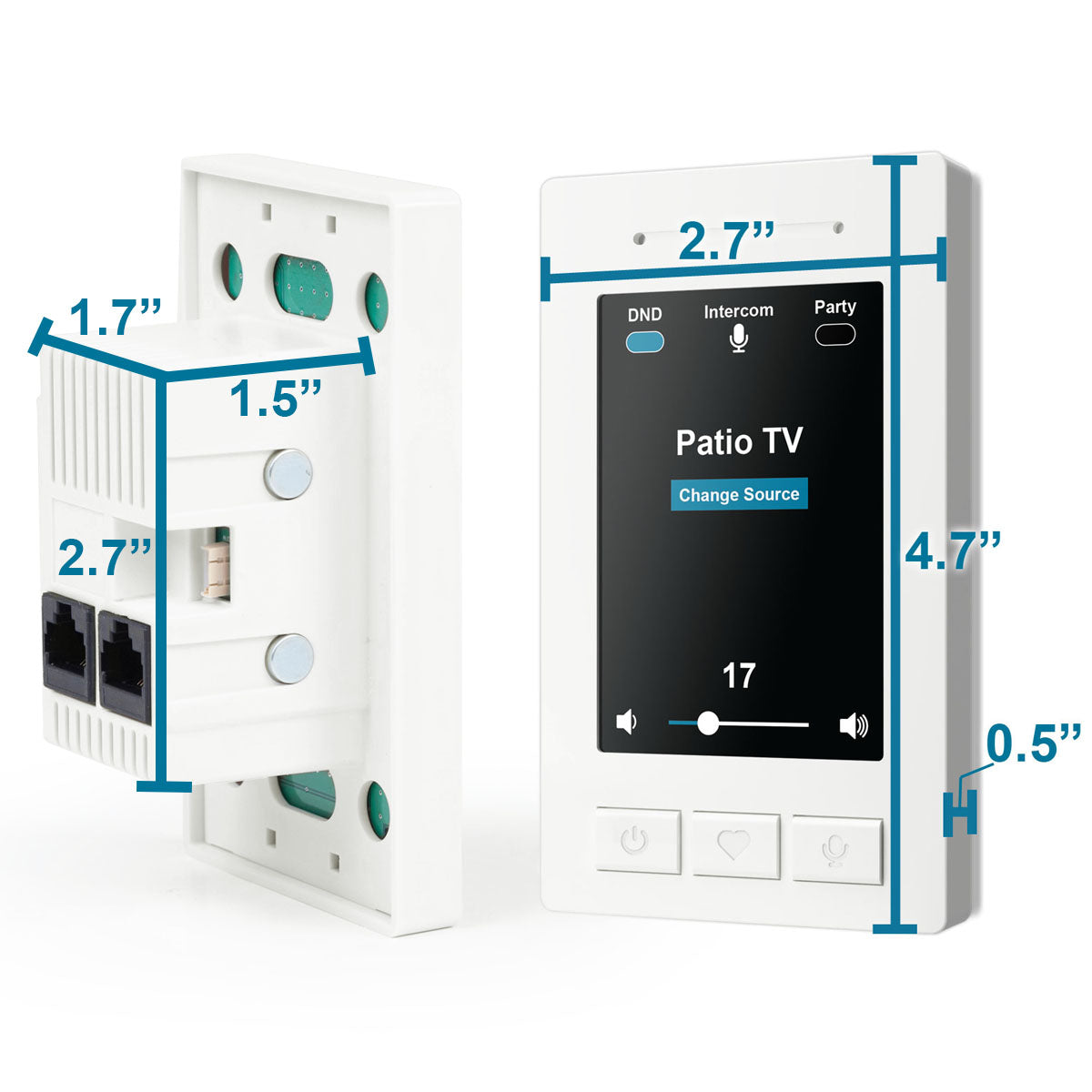

LyncTouch is about the size of a typical light switch and requires a dedicated single-gang space. LyncTouch can be installed in most existing single gang, open-back junction boxes or with a post-construction mud-ring.
As the name implies, LyncTouch is controlled mostly using a touch screen. There are only three physical buttons providing a minimalist aesthetic that easily blends with nearly every décor.
Key Features of LyncTouch:

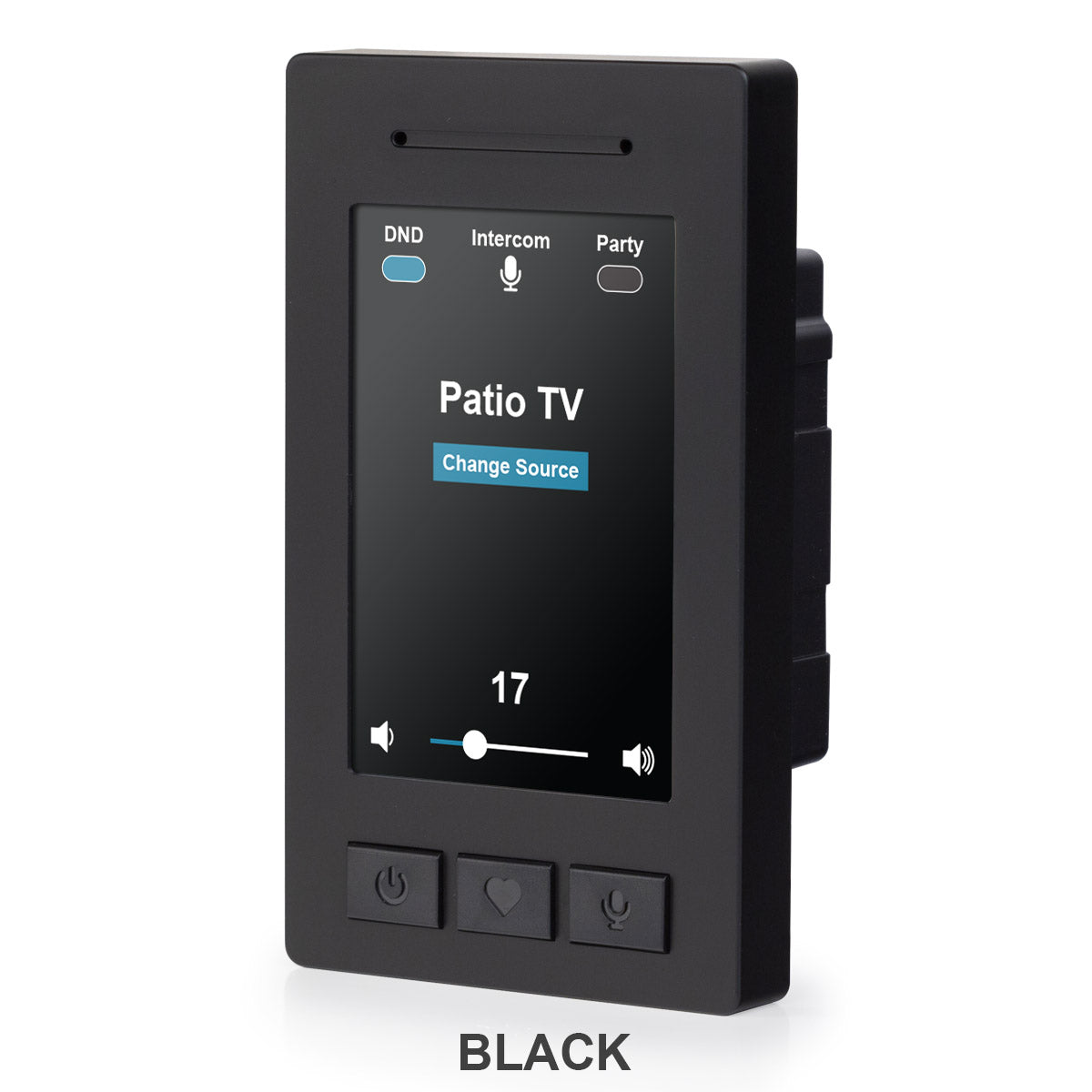

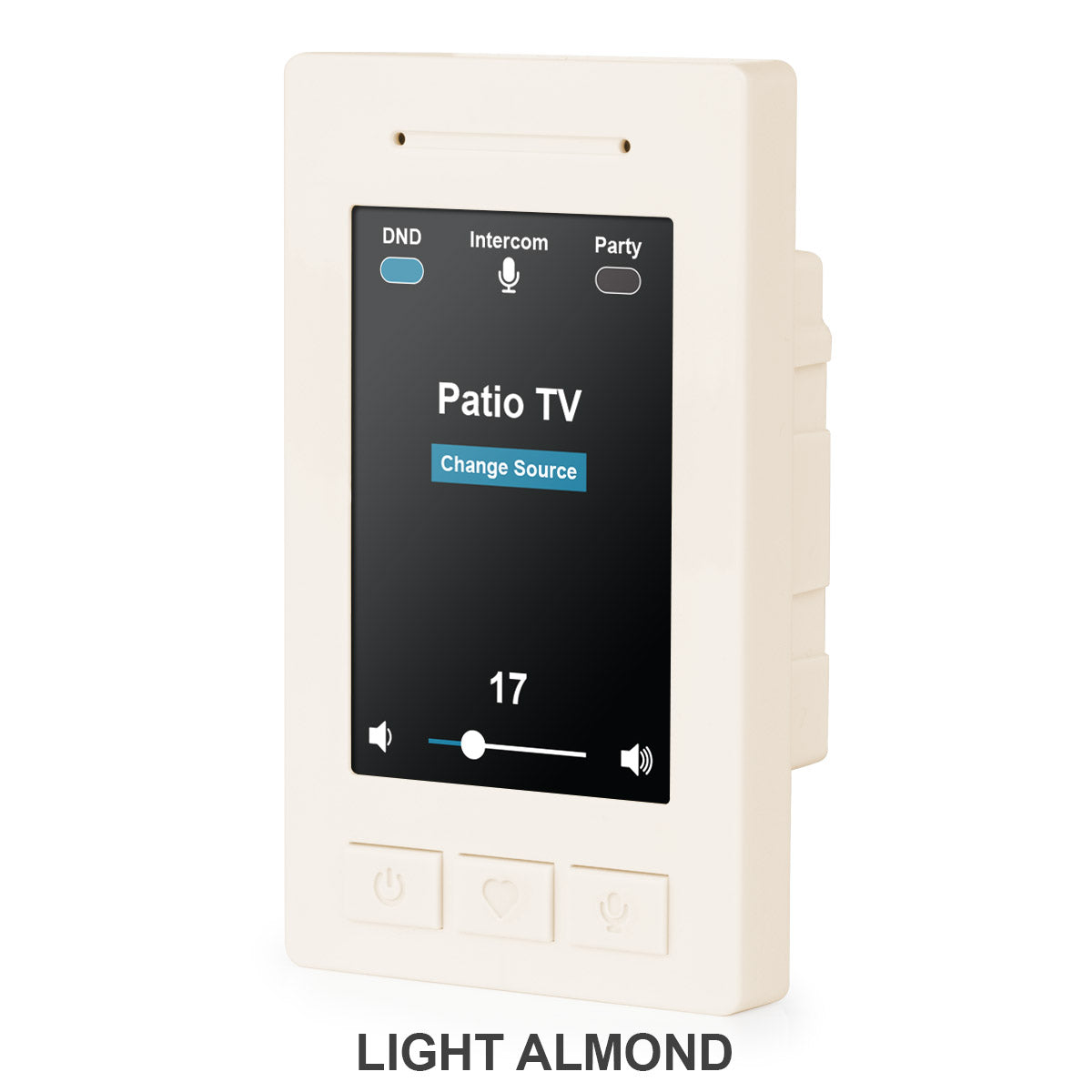

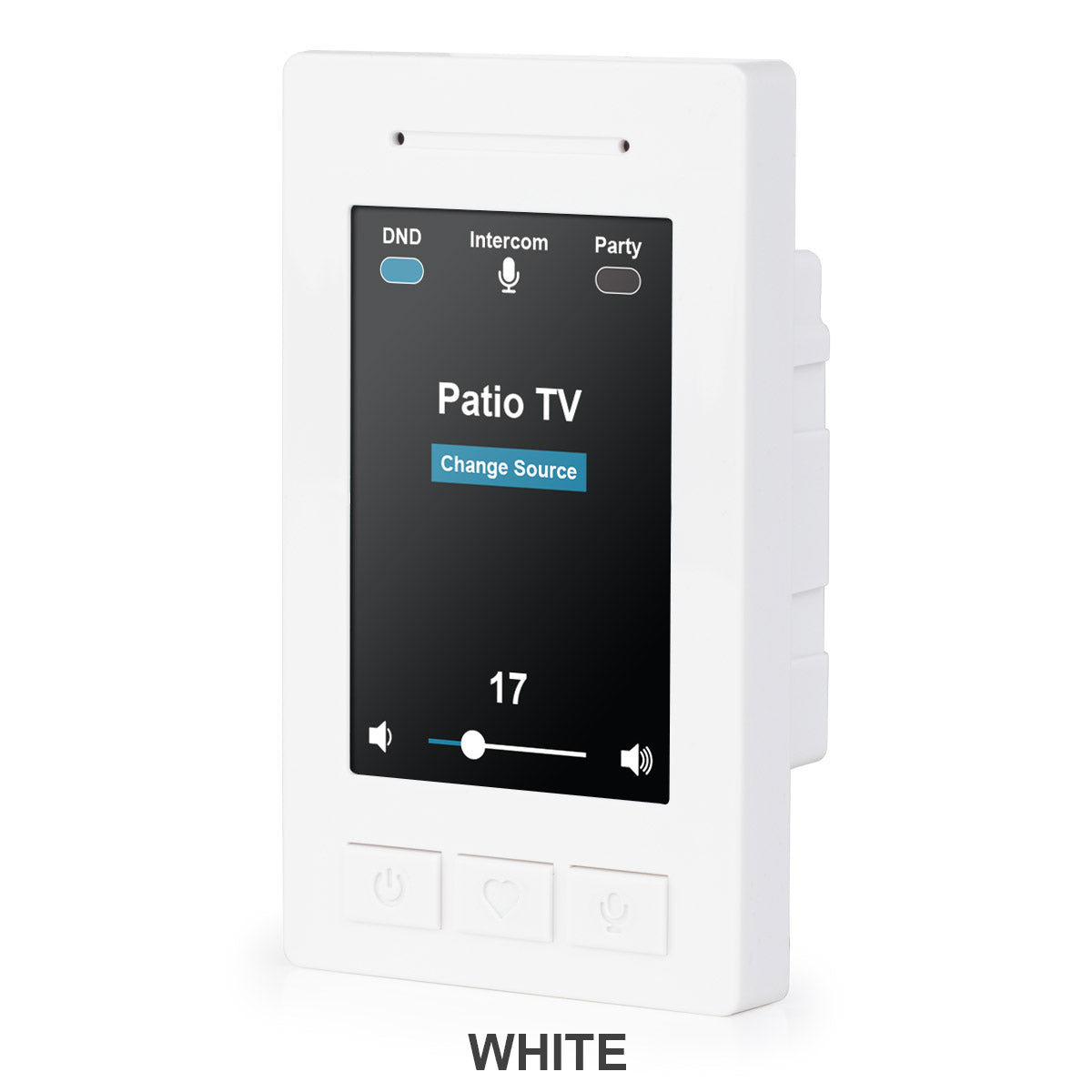

- Single gang, minimalist aesthetic, available in White, Black, and Light Almond
- Brilliant, multi-color 3.5” diagonal, HVGA touch screen
- Select source, adjust volume, mute, control the built-in MP3 player, place the zone in “Do Not Disturb” mode, quickly turn on all zones to the same source for “Party” mode
- Select a single zone or all zones to communicate with using intercom. Intercom audio is crystal clear since it uses stereo microphones built into the LyncTouch and the same speakers as your whole-house audio system.
- Set treble, bass, and balance for the zone
- Select a unique color scheme and separately set the brightness of the screen when active and in sleep mode (including the option for the screen to be completely dark)
-

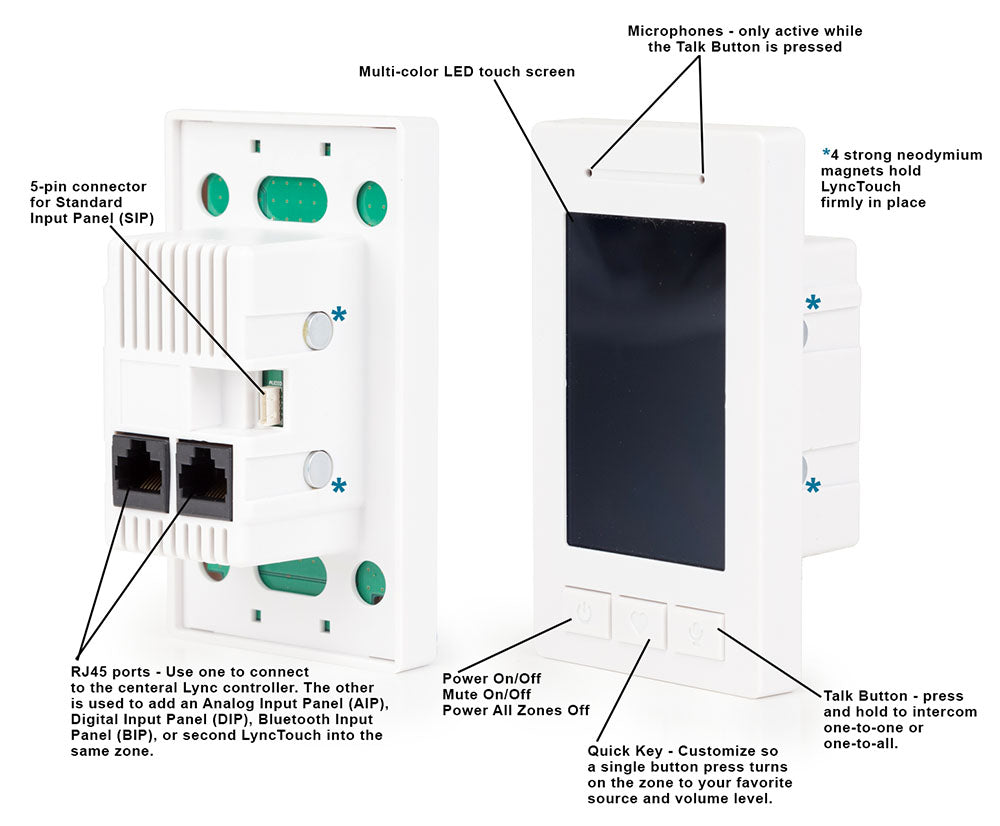

Three physical buttons for common controls:
- Button 1- power on/off, mute, power off all zones
- Button 2- create a unique “favorite” for every LyncTouch. A single touch can turn on the zone, select your favorite source, and set volume to a predefined level
- Button 3- press to talk (intercom) with all zones or any single zone
- Use Cat cable to connect a nearby Input Panel to the back of the LyncTouch. A source connected to that input is available to every zone in the home.
- Add a Decora-style Infrared (IR) receiving eye (sold separately) anywhere in the room and connect it to the back of the LyncTouch using Cat cable. IR signals can then be passed-through the Lync 6 or Lync 12 to control your IR-based equipment that is centrally located
- Can be daisy-chained with Cat cable to a second LyncTouch in the same zone

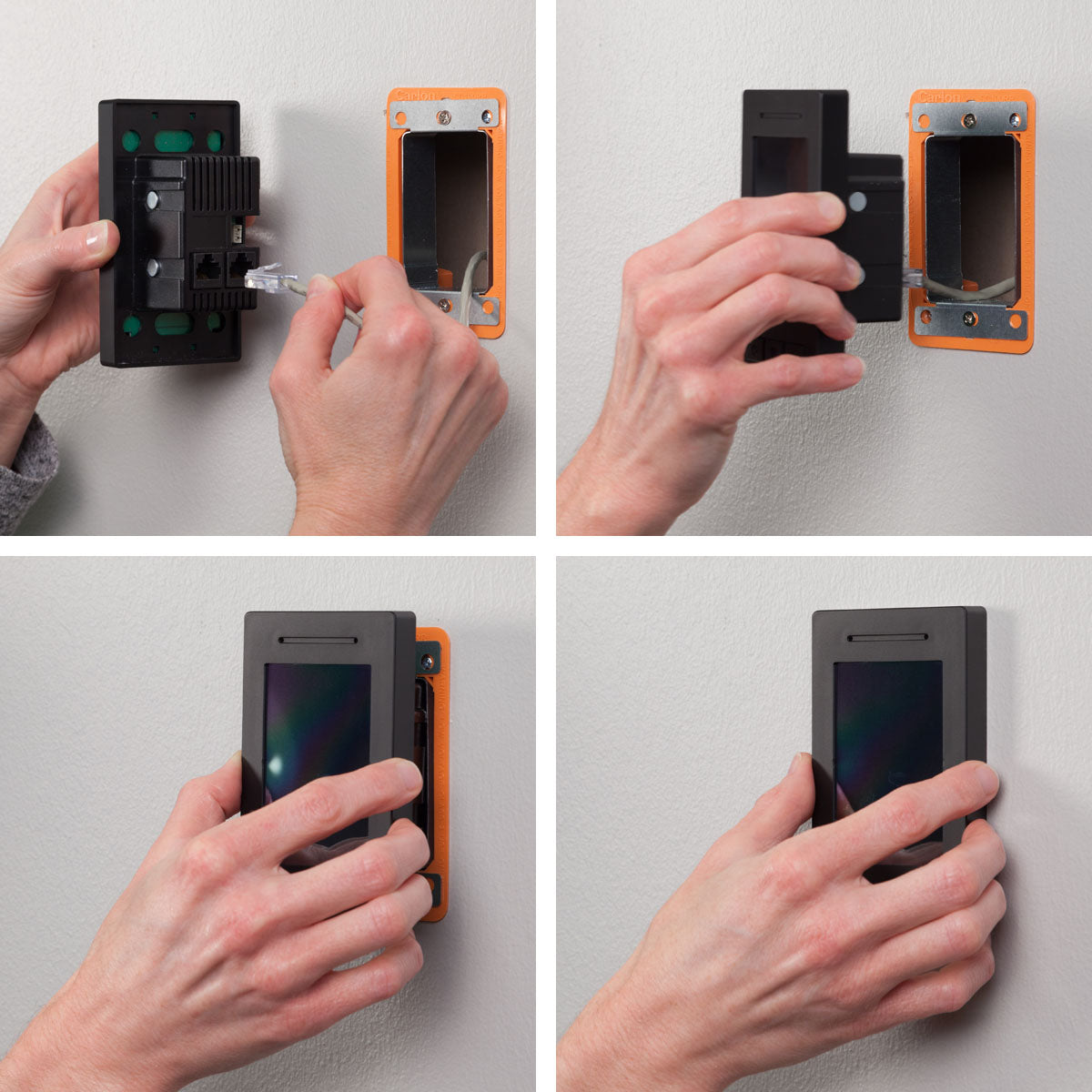

- Designed to quickly and easily mount firmly against the wall without any visible screws or seams
- Please note that some features of LyncTouch, such as the ability to force another zone to power on when using intercom, will only work when used with a version 3 (V3) central Lync Controller.
