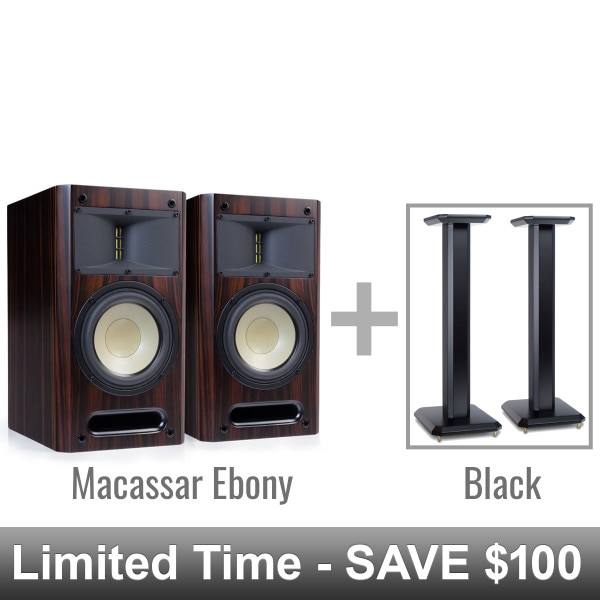

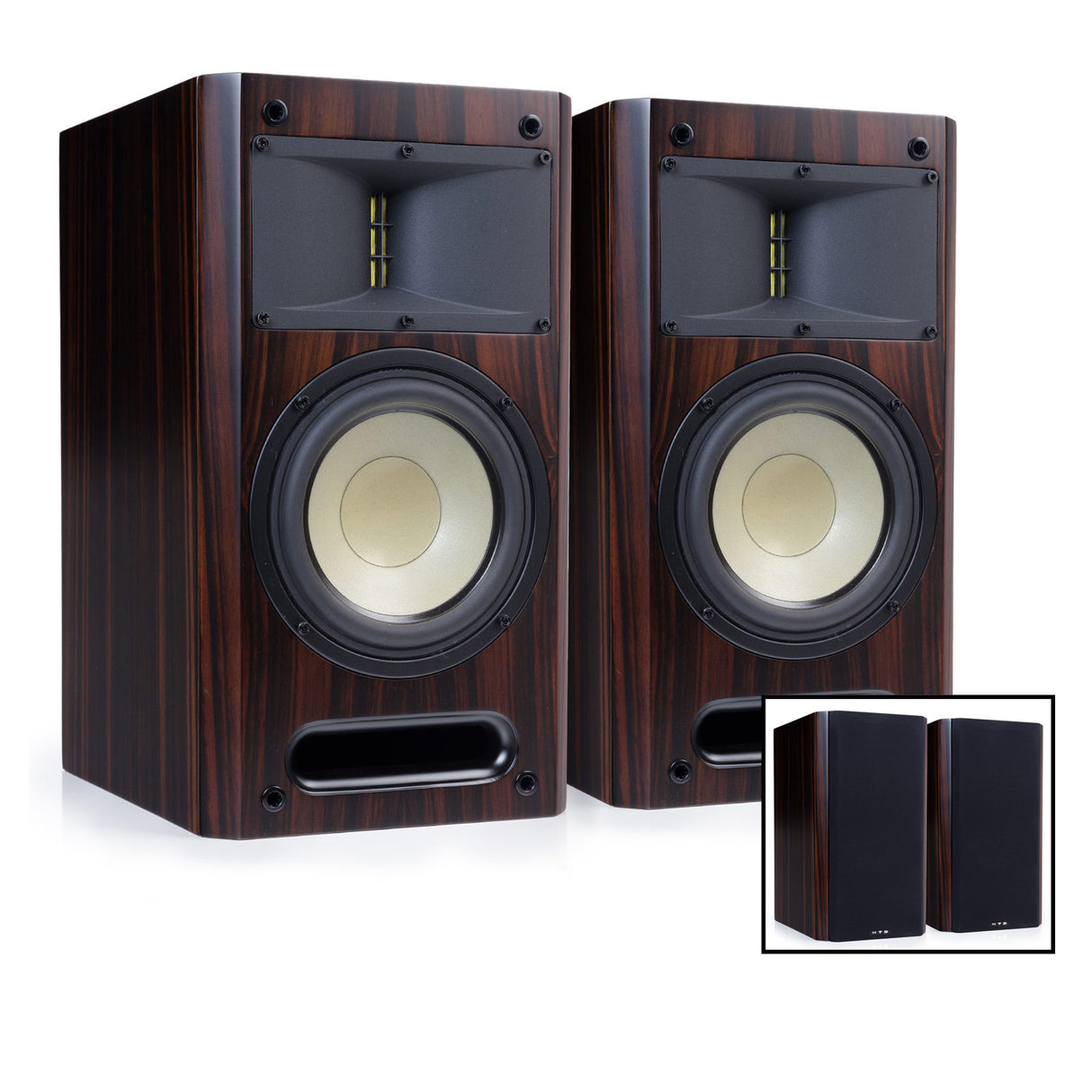

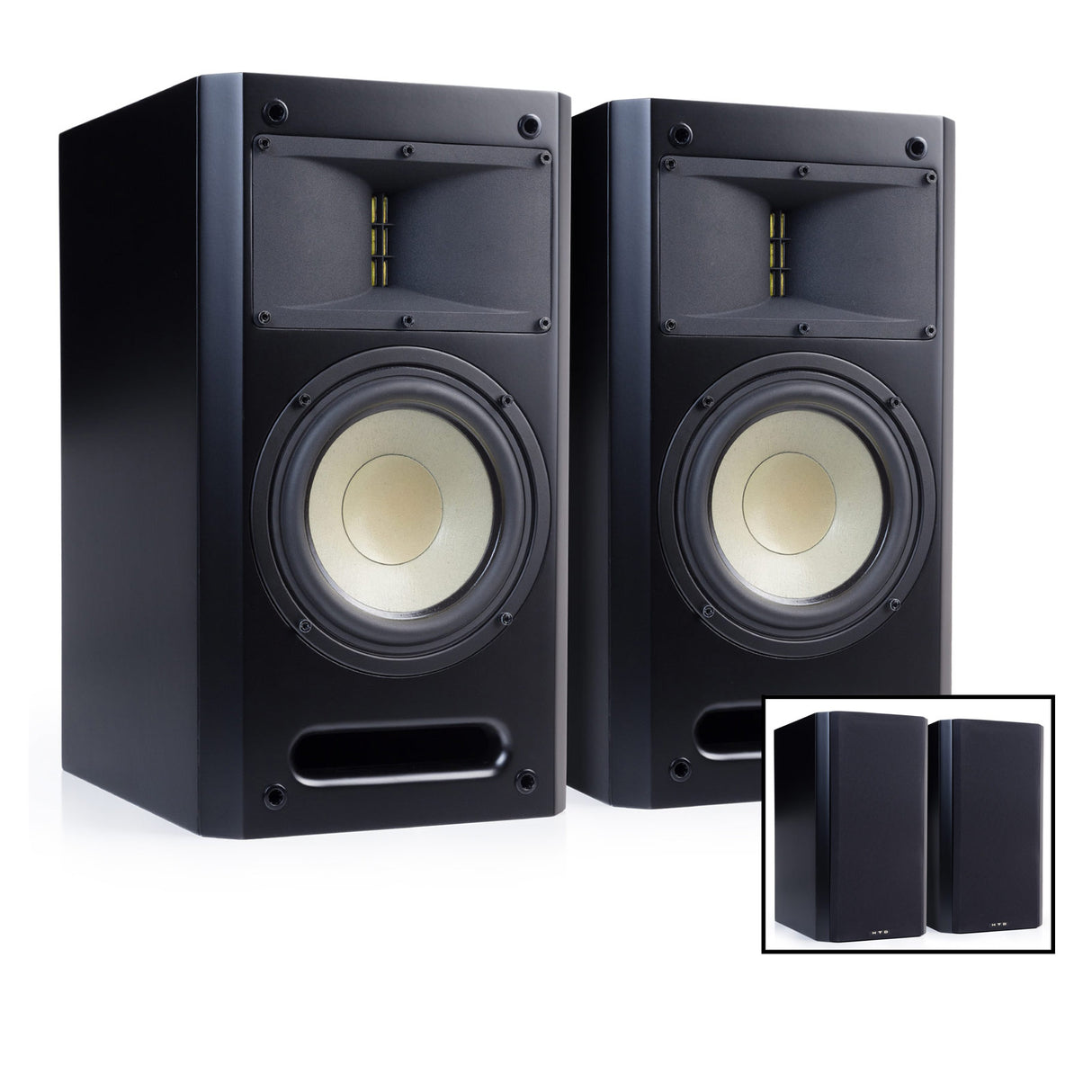

Level THREE Bookshelf Speakers

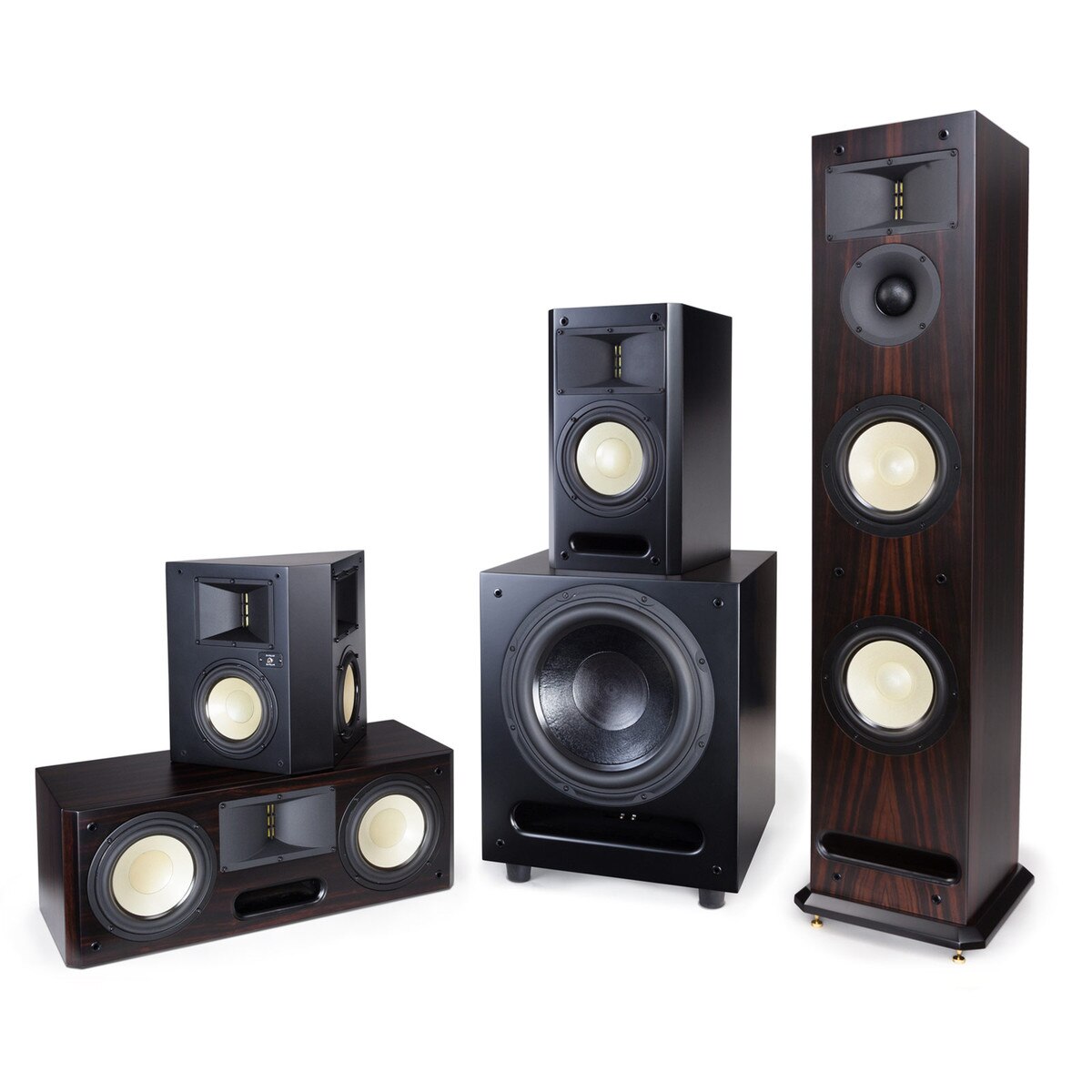

Our Level THREE Bookshelf speaker is designed to blend perfectly with other Level THREE speakers. Level THREE utilizes the latest in high-end component technology.

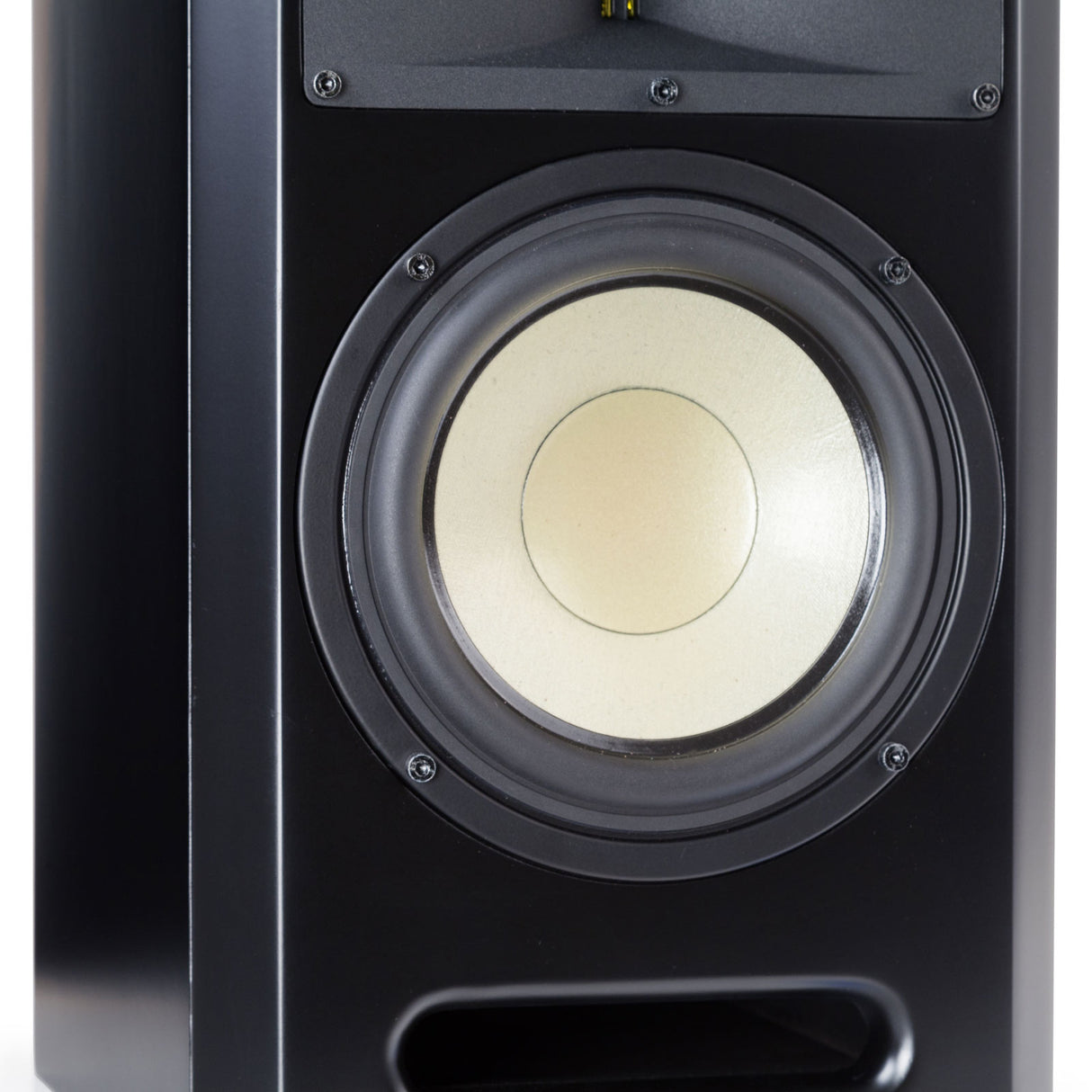

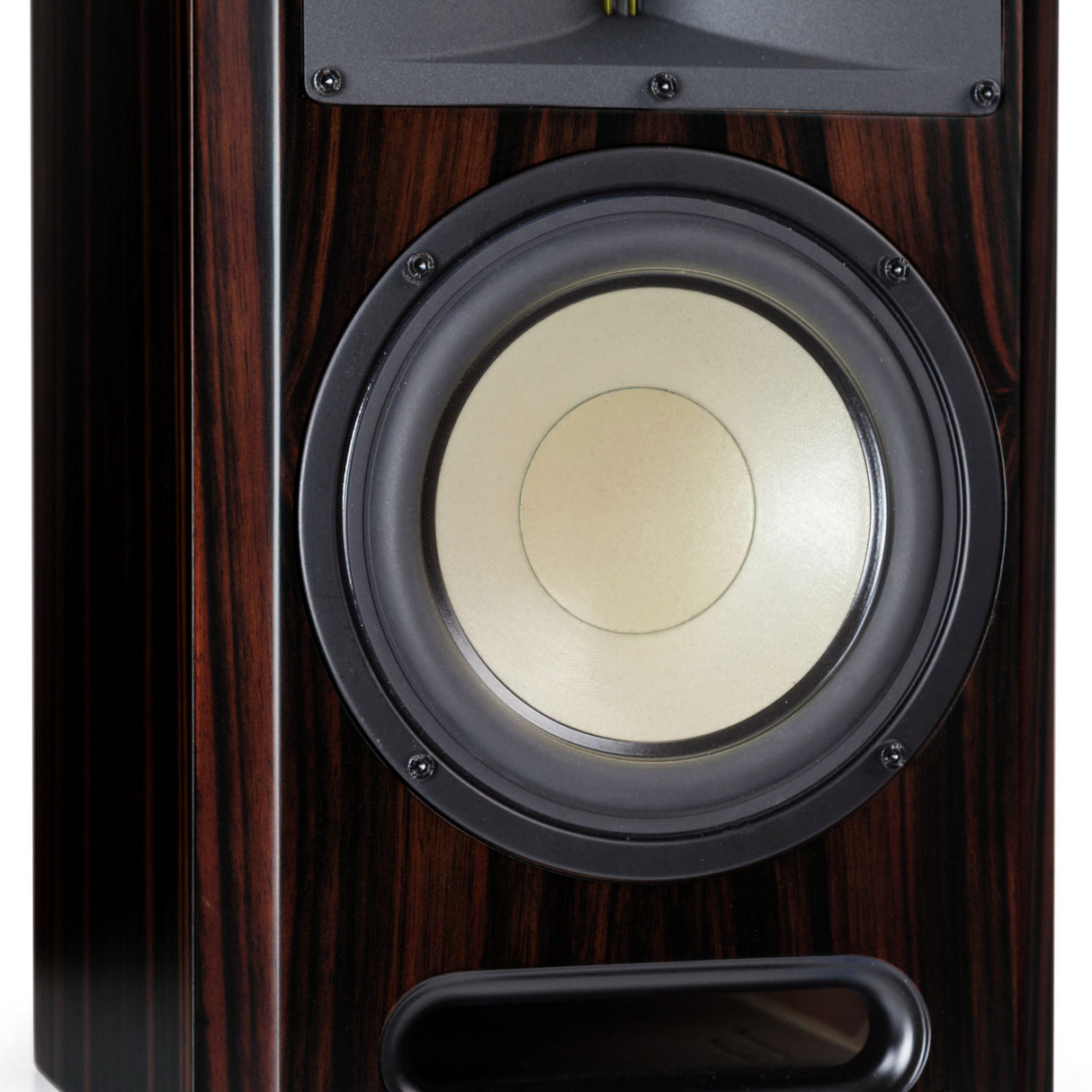

The low and mid-range is reproduced by a 6.5" driver. FCD stands for Fabric, Ceramic, Doping. A lightweight fabric is used to create the cone's shape. A ceramic coating is then hand applied, heated, and hardened to give the cone its stiffness. Finally, a slightly sticky polymer coating (doping) is also hand applied that helps increase bass response and add warmth to the overall tone. Bottom line: it provides the best sounding mid-range drivers we've ever produced.

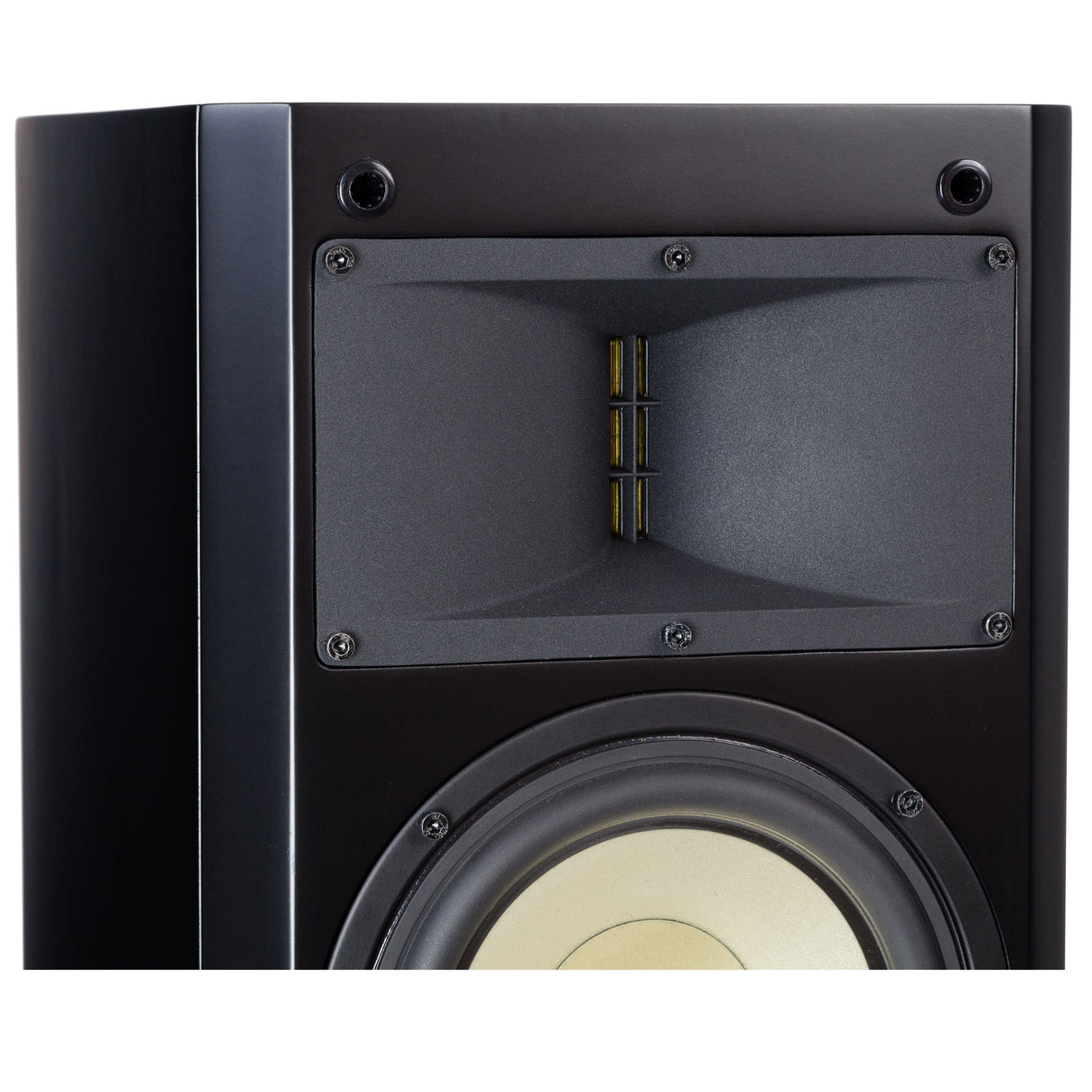

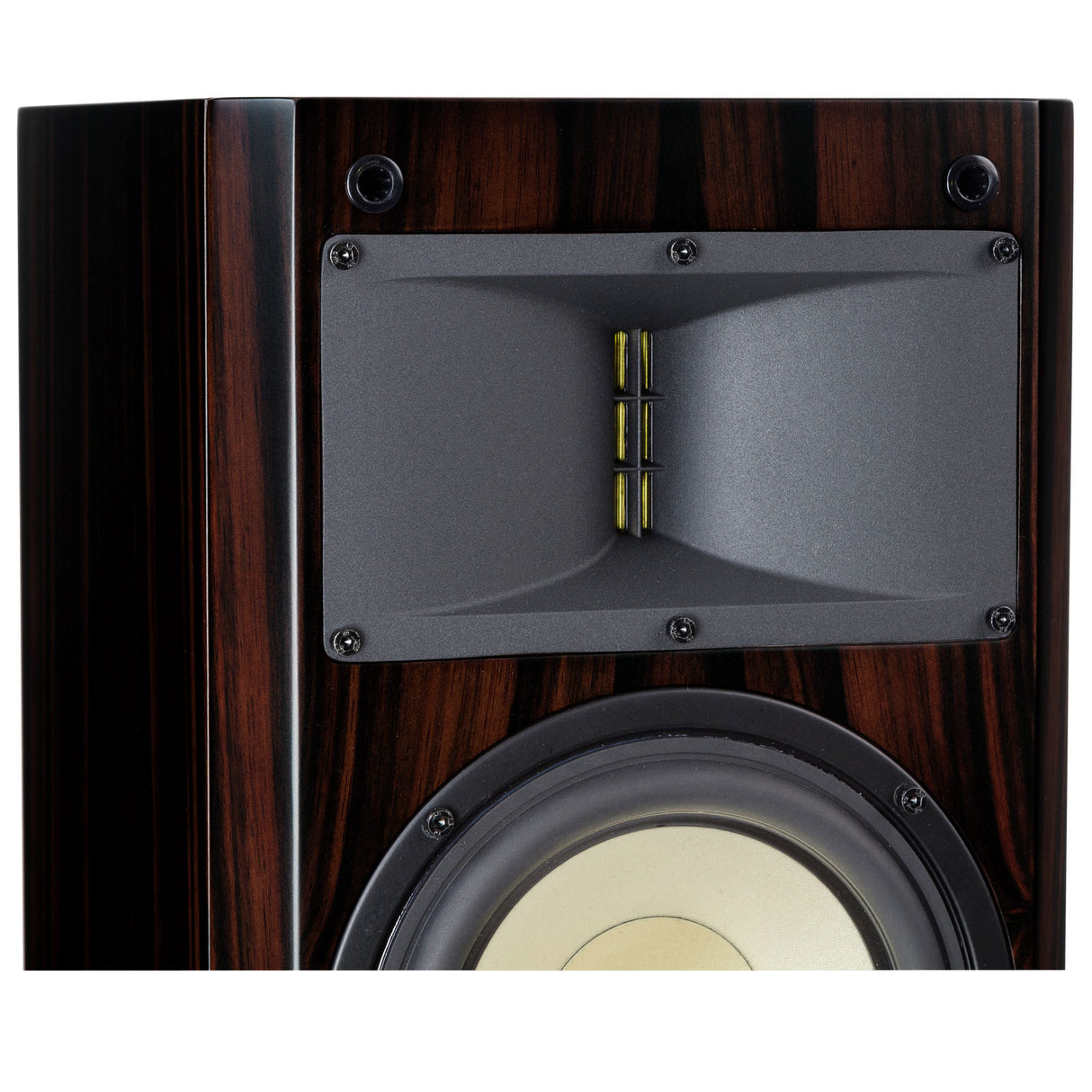

A third order, high slope crossover (18dB/18dB), seamlessly directs the highest frequencies into the Kapton ribbon tweeter. Kapton, a material invented by Dupont, has been around a while but has only recently become affordable for home audio use. Kapton is an ideal material for reproducing high frequencies because it is very strong and extremely heat resistant, even at only .01mm thick (the human hair is about .07mm in diameter). Aluminum powder is carefully laid out and "fused" directly on to the ribbon (similar to the way a printed circuit board is "etched") to create the .02mm thick "voice coil" that interacts with a pair of neodymium magnets mounted both in front, and behind, the ribbon.
The result is a tweeter that does an incredible job of reproducing the highest frequencies (up to 40 kHz) without distortion and without sounding harsh or "in your face". Dialogue in movies is extremely natural sounding and music can be enjoyed for hours without the listener experiencing any fatigue.
Cabinets are cut using computer-controlled machines and made of quality 3/4" MDF with internal bracing to minimize unwanted cabinet resonance. Unlike many of our competitors, we never cover our cabinets in cheap imitation-wood grain vinyl. Instead, our cabinets are painted black with mid-gloss lacquer or expertly covered in gorgeous real wood veneers.

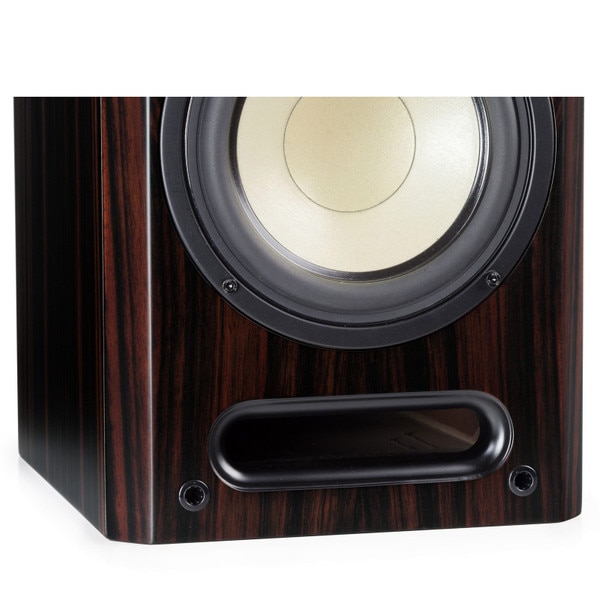

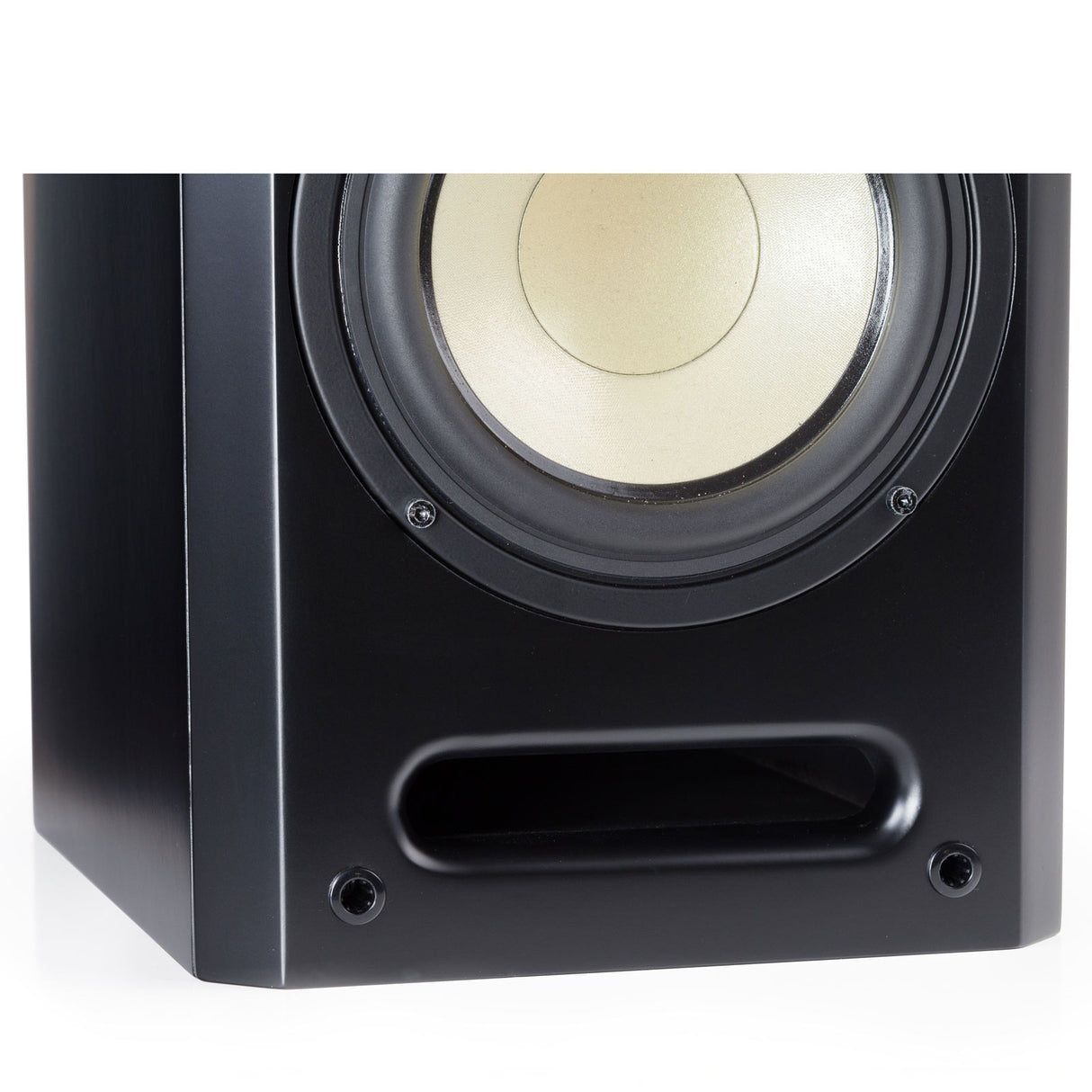

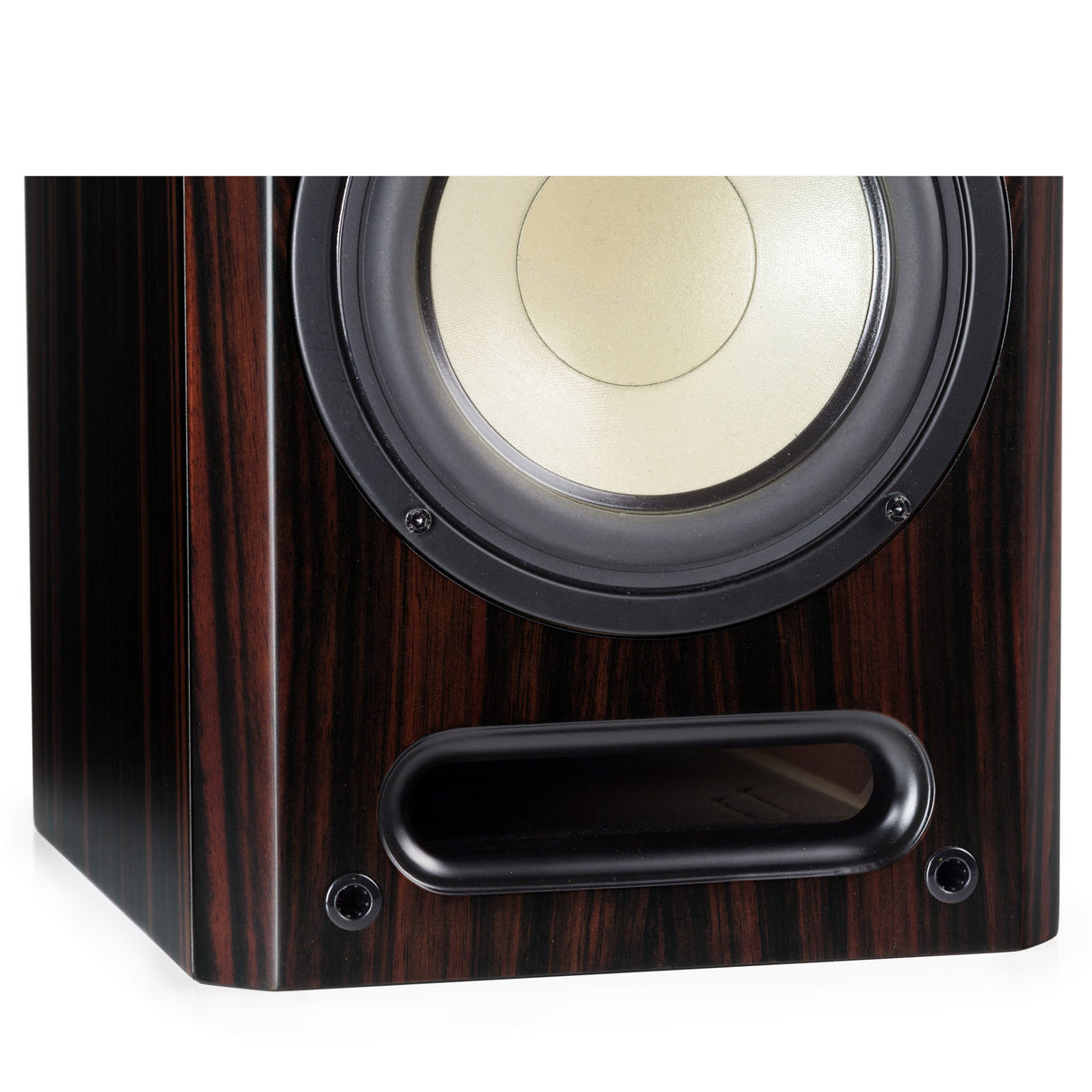

As opposed to a simple port tube, our Level THREE speakers include a tuned port with a 1/12 wave internal transmission line. This allows our speakers to produce a warmer tone with more bass than other speakers of similar size.
As with all of our speakers, our Level THREE speakers include a 5-year warranty and 30-day no-risk guarantee.
- Max. Power Handling: 120 watts
- Frequency Response: 47 Hz - 40 kHz
- Impedance: 8 ohms
- Sensitivity: 88dB
- Voice Coil: 1.5"
- Magnet: woofer: 21 OZ ferrite; tweeter: .7 OZ neodymium
- Crossover: 3rd order at 2500Hz

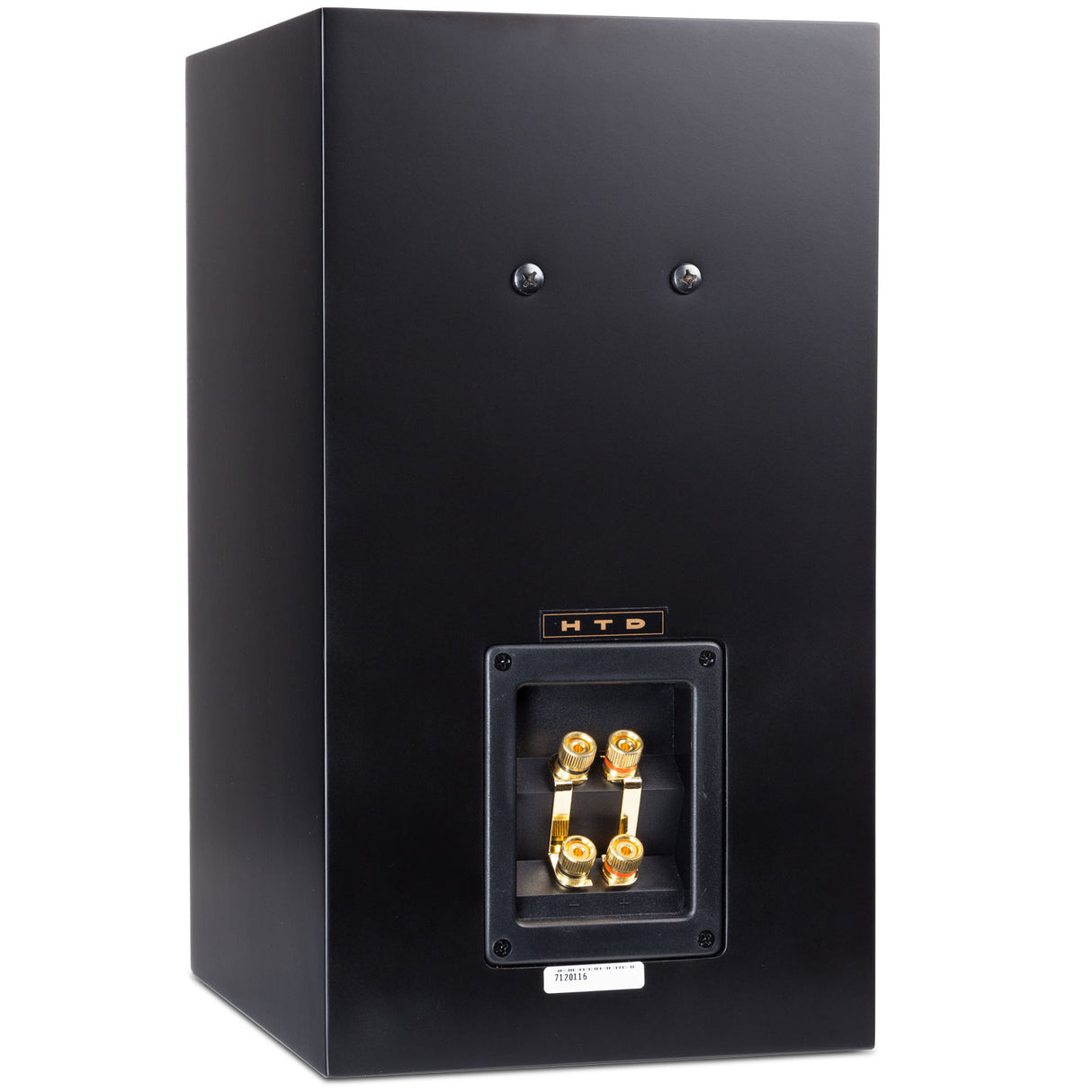

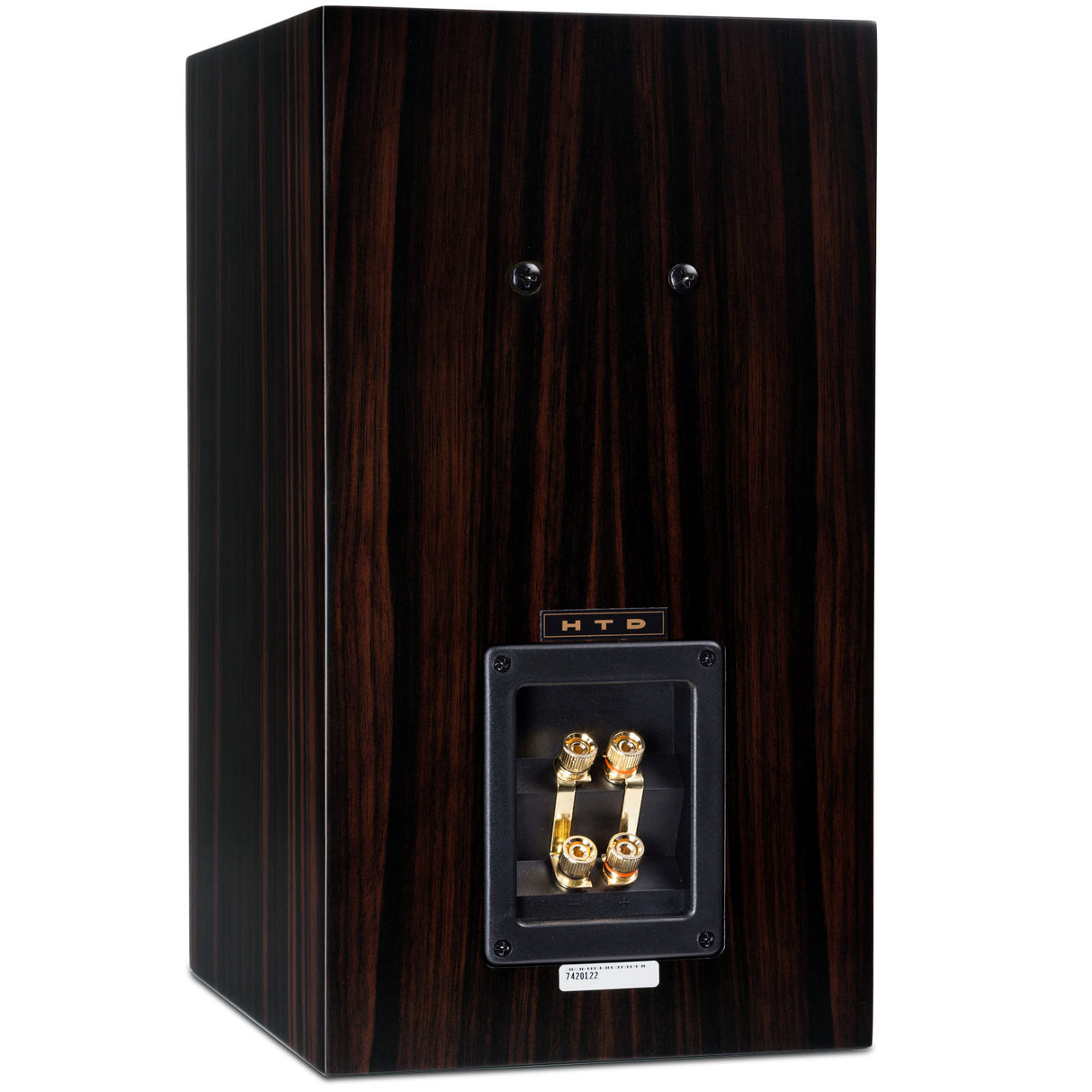

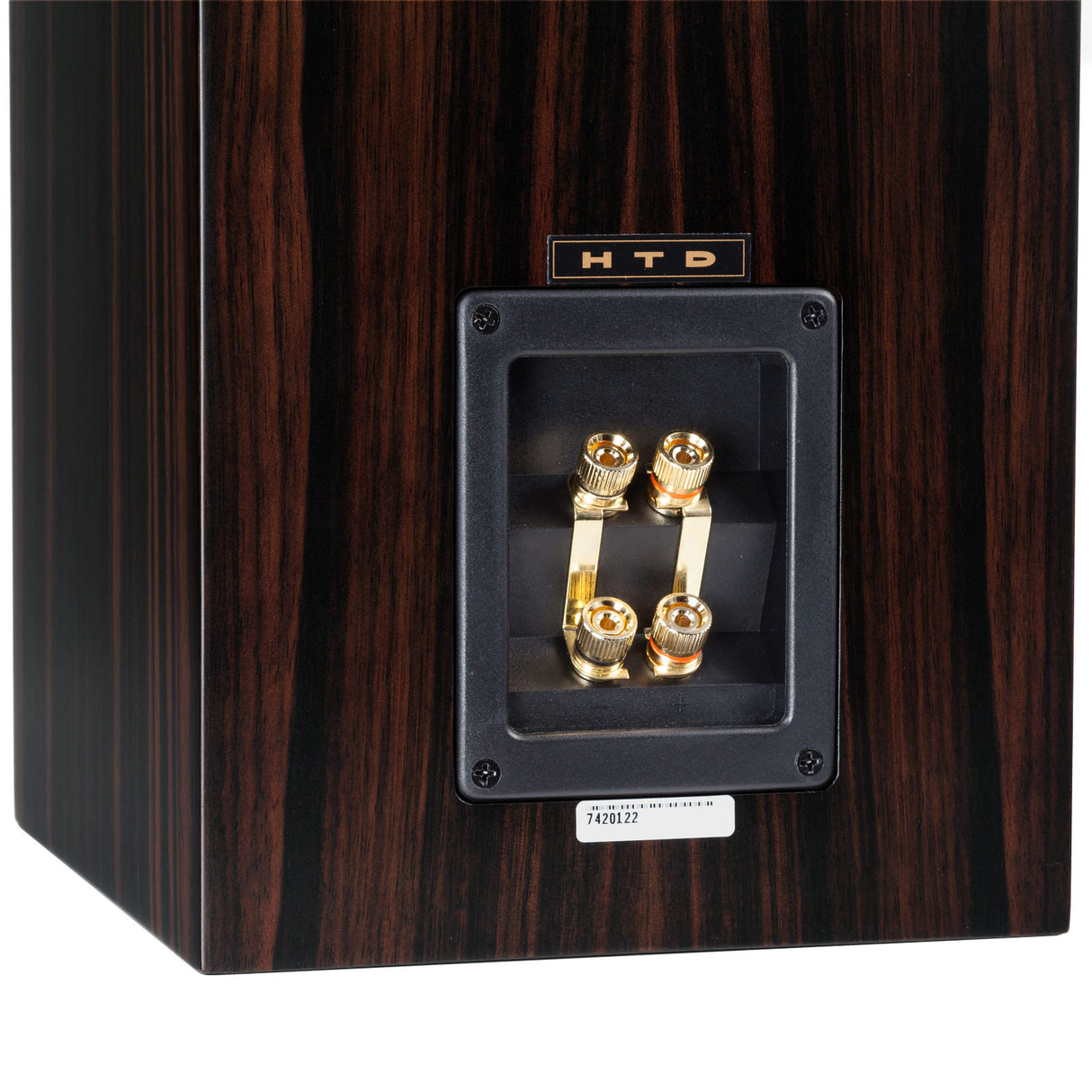

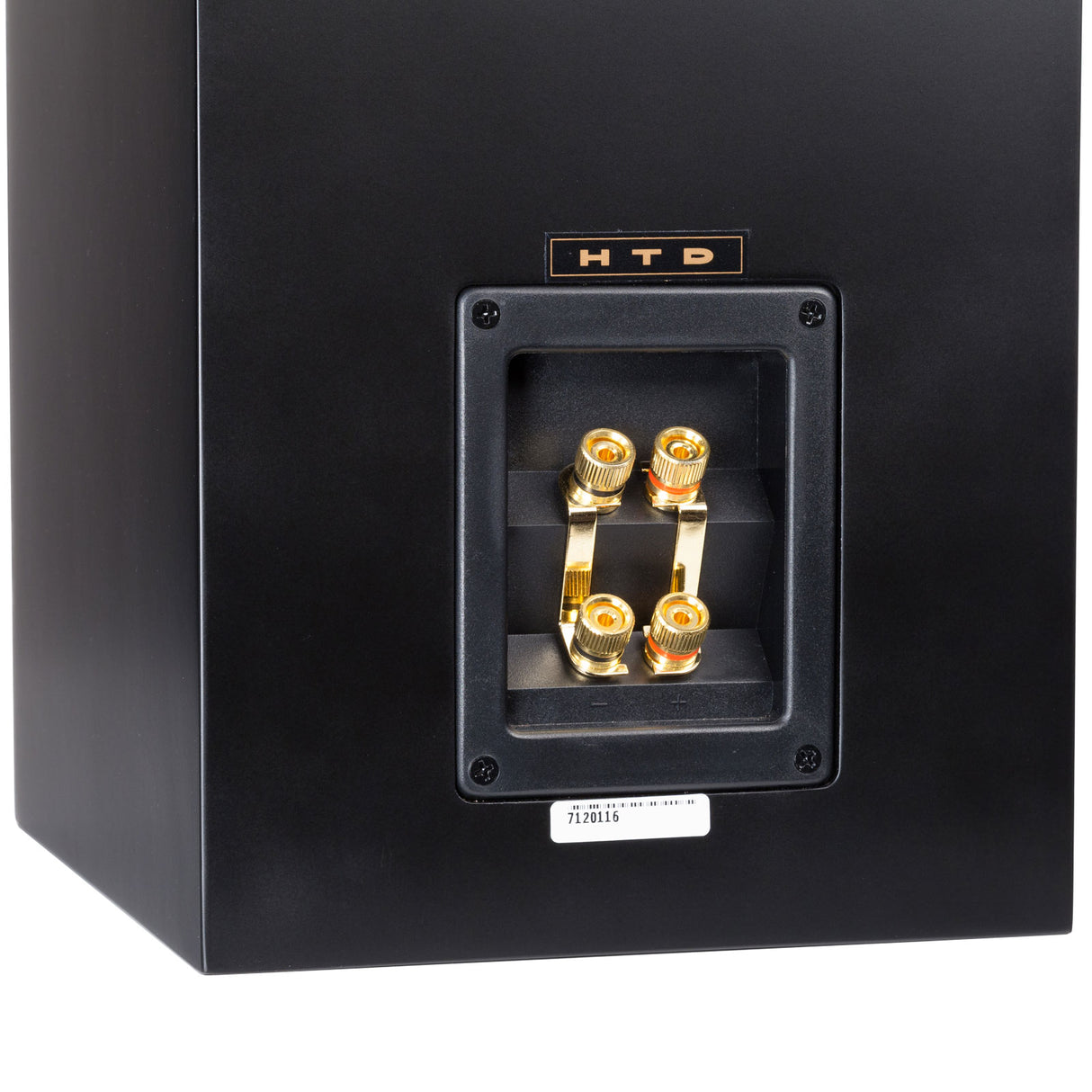

- Speaker connections: Dual gold-plated binding posts for regular one-cable connection or optional bi-wire/bi-amp connection using bi-wire speaker cable

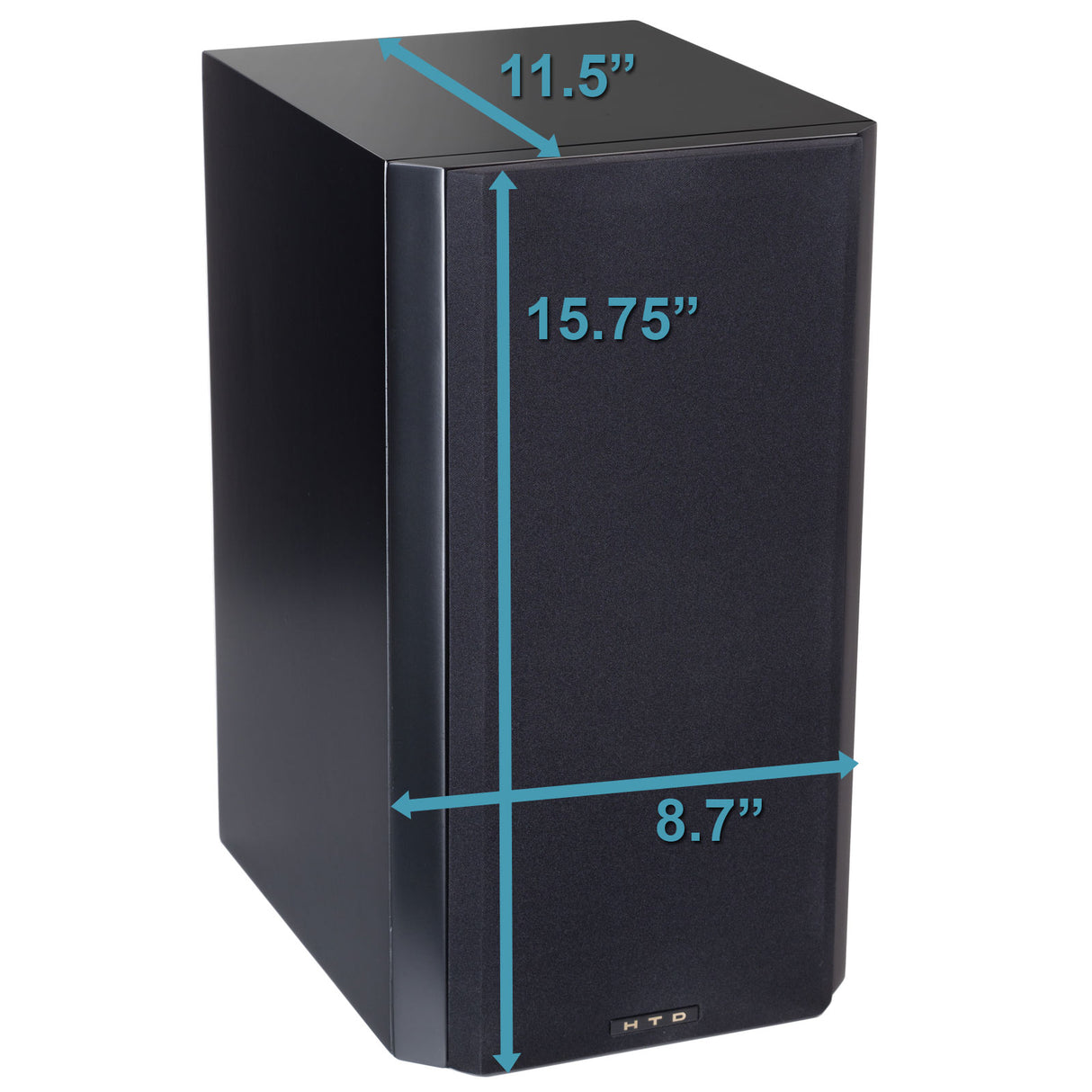

- Dimensions (HxWxD): 15.75" x 8.675" x 11.5"
- Weight (per piece): 19 lbs
