Powered Subwoofer Cable

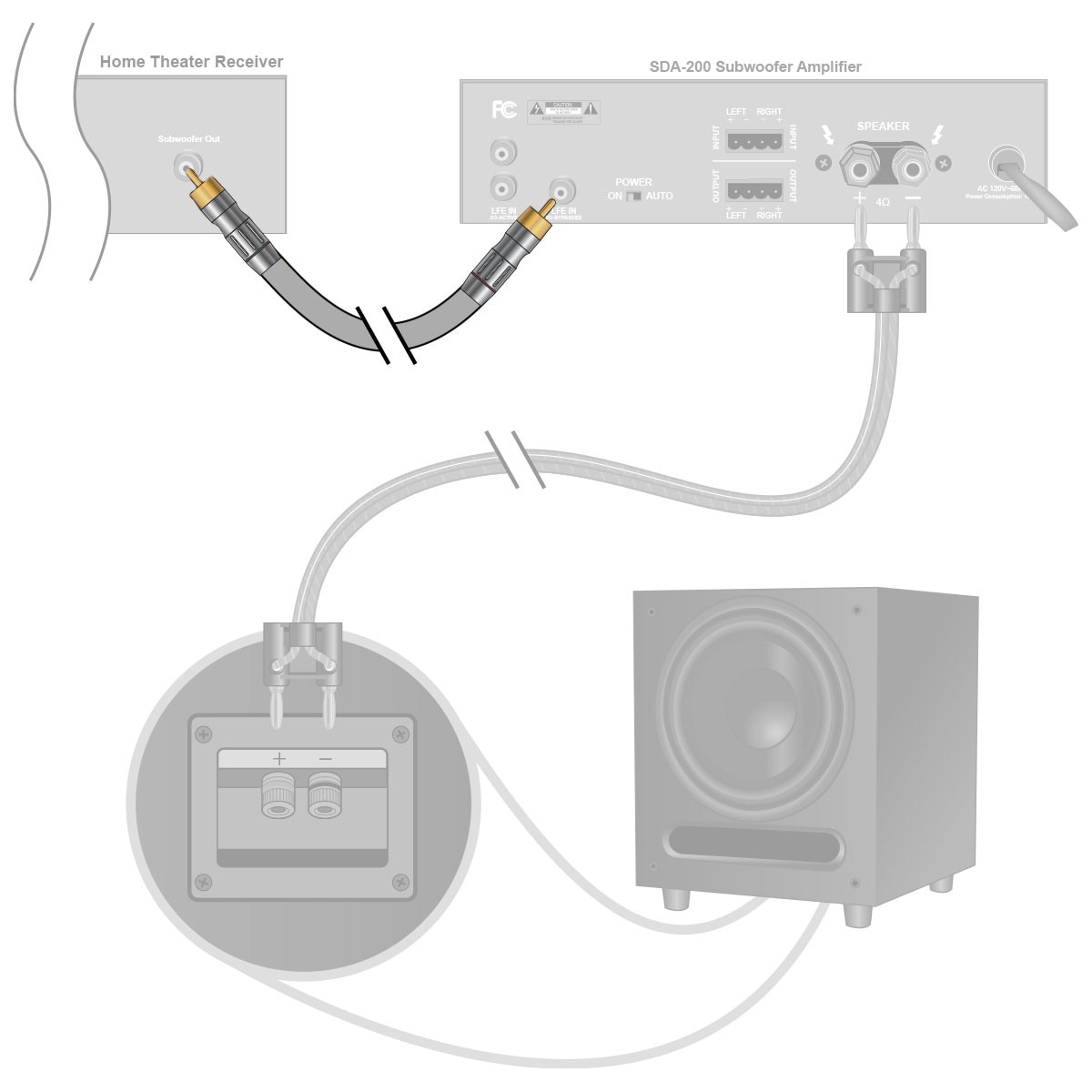

Use the short 3 foot cable when you want to connect one of our subwoofer amplifiers near your home theater receiver and other equipment (you then run standard 14 gauge speaker cable to connect the subwoofer amplifier to the subwoofer). Use the longer cables when the subwoofer amplifier is built-in or located close to, or under, the subwoofer.
Unlike speaker cable which conducts a powered signal, a powered subwoofer cable transmits an unpowered signal from your home theater receiver or decoder to the subwoofer's amplifier. This "line level" signal is susceptible to electro-magnetic (EM) and radio frequency (RF) interference from its surroundings.

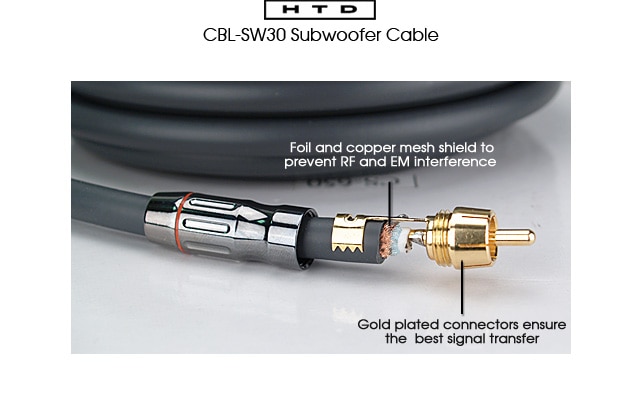

To keep this interference out, a special cable with a braided-copper mesh "shield" and a foil "shield" is used. Our powered subwoofer cable is professionally terminated with gold-plated RCA-type connectors.

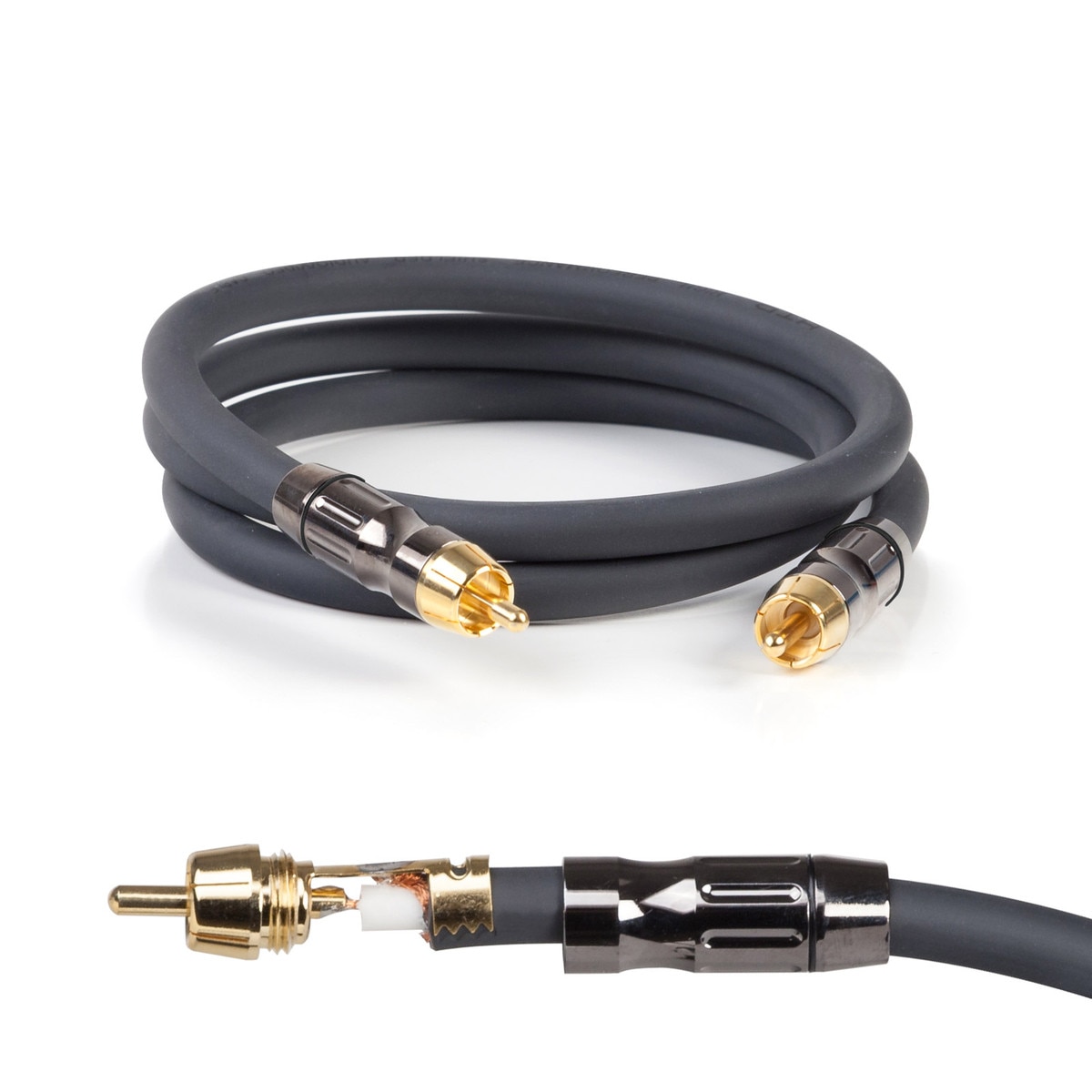

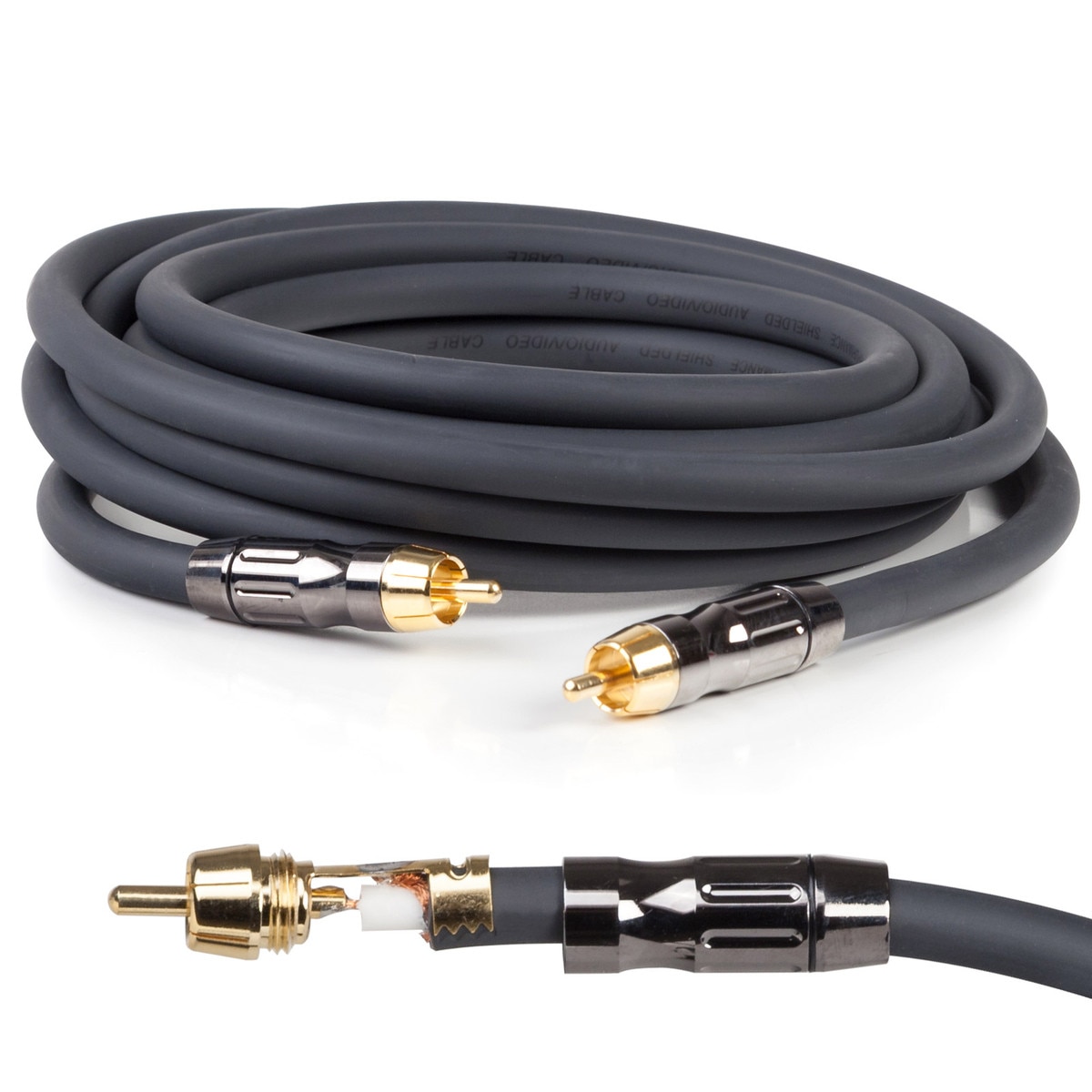

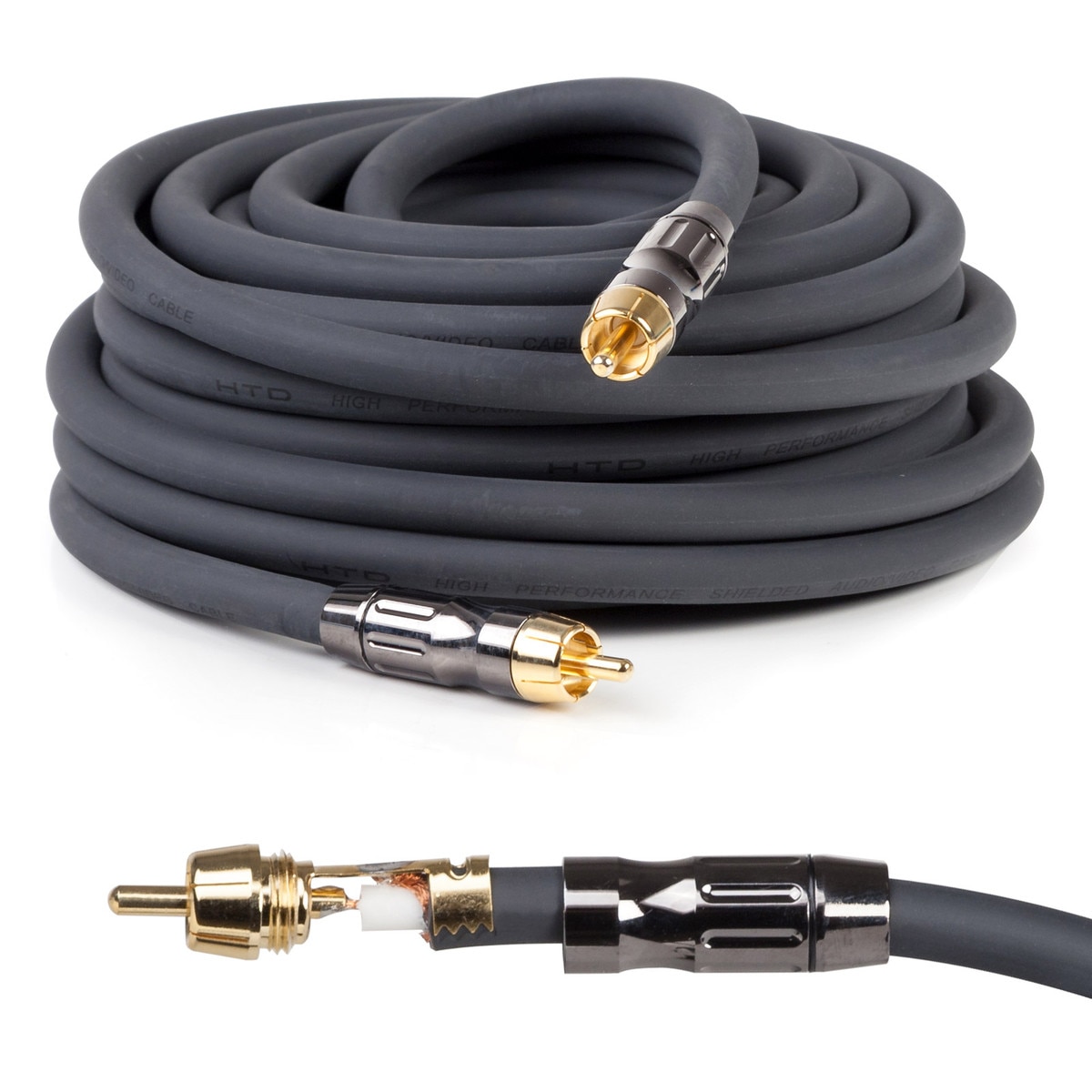

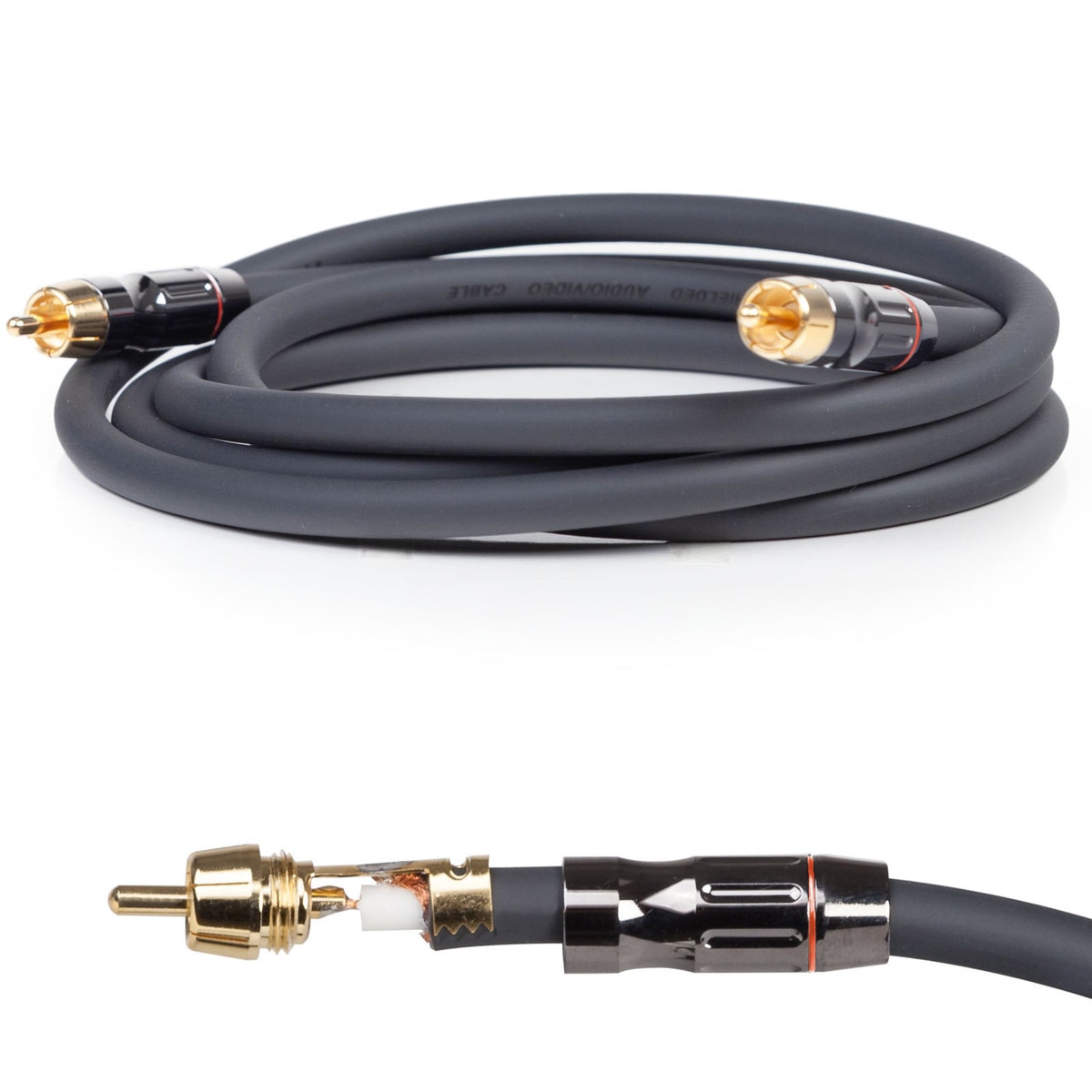

Because powered subwoofers can be placed virtually anywhere in the room, our subwoofer cable is available in a standard 12 foot length as well as an extra long 30 foot length. We also offer a short 3' cable which is used when your subwoofer amplifier (including all current HTD models) is separate from the subwoofer cabinet. This arrangement allows for regular 14 gauge speaker cable to be run from your equipment to the subwoofer cabinet, expanding the potential installation points (a 110V outlet nearby is not necessary) and saving you money because standard speaker cable is less expensive per foot than a shielded cable.
A powered subwoofer, by definition, includes an amplifier. The signal sent from the home theater receiver/processor to the subwoofer amplifier is therefore a "non-powered" signal that needs to be shielded from its surroundings. Shielding prevents unwanted interference, specifically a 60 Hz "hum" from nearby electrical wires, from being picked up and amplified. We offer a shielded powered subwoofer cable in lengths of 3 feet, 12 feet and 30 feet.
The other speakers in a surround sound setup (front left, center and right plus all of the surround speakers) do not have amplifiers built-in. Instead, they are powered by amplifiers in the home theater receiver. It is difficult for an amplified signal to pick up interference, so regular, unshielded speaker cable will do. Regular speaker cable is also what is run between the subwoofer amplifier and the subwoofer. We recommend 14 gauge cable because, in our experience, it is difficult to notice an improvement with even thicker cable. When running cable behind a wall or in the ceiling, most building codes will require that you use UL rated CL-3 cable which has a higher fire retardancy than clear jacket cable.
Click here to purchase HTD speaker cables.
HTD Multipurpose in-wall speakers can accept 14 gauge cable but 16 gauge should also work well for most installations where individual lengths are less than 100 feet. The High Defnition in-wall speakers can accept 10 gauge wire, but 14 gauge seems to be the point of diminishing returns for most listeners, i.e. you can spend more money for 10 or 12 gauge cable but you probably won't hear the difference. While clear jacket cable is suitable for most in-room speaker installations, if you are running cable behind a wall or ceiling, you need to use UL Class 3 rated cable to be in compliance with most building codes. Class 3 cable will not degrade in extreme temperatures because it uses an extra plenim sheath to protect the cable. The letters CL3 should be printed somewhere on the sheath.
Good cable will make a difference in the performance of your speakers but you shouldn't have to take out a second mortgage to get them. Most speaker cable is simple in design because it carries a hi-level or powered signal so it does not require much "shielding" to protect it from interference and hum. On the other hand, audio interconnect cables transmit a line level or non-powered signal from one component to another (such as from a DVD player to a receiver or from a receiver to a powered subwoofer) and are at high risk for interference and thus require a good amount of shielding.
Good speaker cable should adhere to the following three principles:
1. Oxygen Free Copper should be used. Copper of 99.9% or higher concentration is used in most speaker cable today, but to officially be considered "oxygen free", it should be 99.99% pure. Extra, and more costly, processes are used to get to this level which is one reason speaker cable is more expensive than typical copper cable. Look for the letters "OFC" printed on the cable or packaging. Poor quality copper will deteriorate fairly quickly and the conductivity can be reduced to the point that it is noticeable in the speaker's performance.
2. The thicker the cable, the better. A cable's overall thickness is measured by gauge. The lower the gauge, the thicker the cable. HTD recommends using 16 gauge or thicker cable. In general, the longer the cable run, the thicker it should be to minimize signal loss. While Level TWO and Level THREE cabinet speakers can handle down to 8 gauge cable, we have found that the point of diminishing returns seems to be around 14 gauge for most listeners. This means that it becomes difficult to justify spending significantly more on thicker cable for the tiny amount of improvement in speaker performance- an improvement most listeners won't detect.
3. The higher number of strands used to produce the gauge of the cable the better. Speaker cable typically consists of many small wires twisted together. Because electrons flow along the surface area of the copper wire, more surface area means less signal loss. And more strands means more surface area. Further, something called "gap flux" that occurs between strands needs to be minimized and the closer together the strands the smaller the gap flux.
HTD offers a complete line of quality speaker cable that excels in all three points discussed above.
