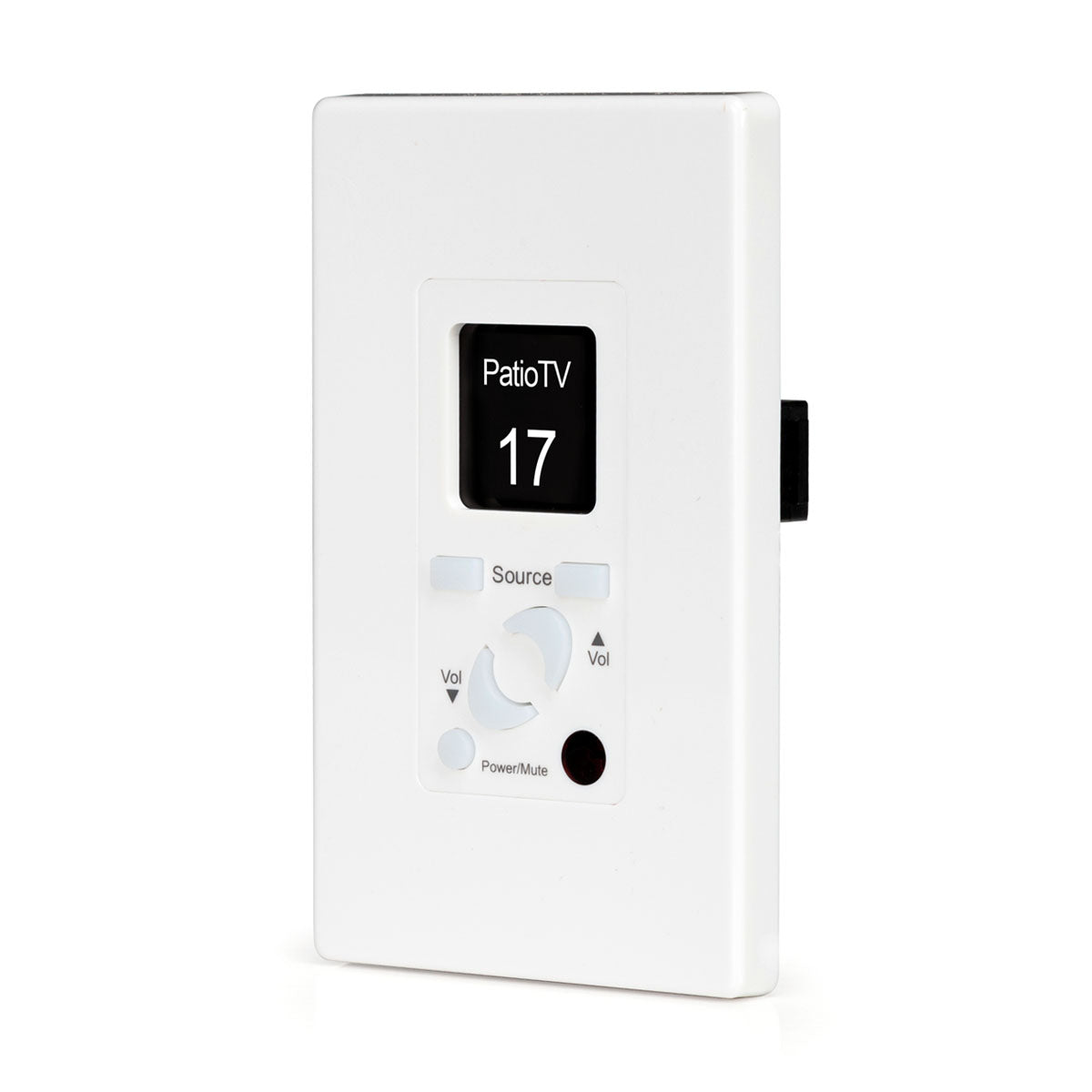

KC7 Control Pad
The KC7 wall-mounted control pad includes an LCD-TFT display and back-lit, soft-touch buttons. It connects to the MC-66 or MCA-66 controller via Cat-5 (or higher) cable. Setup options include display color and brightness for both active and "sleep" modes. Edit the source names as they appear on the KC7 using the HTD Home Audio app.
Use the KC7 to control the zone to which it is connected:
- Power on/off the zone
- Select source
- Control volume, mute
- Set treble, bass, and balance
- Power on all zones to the same source (party mode)
- Power off all zones
This item is currently not in stock but available for pre-order.
Warranty
Warranty
All HTD speakers carry a FIVE YEAR WARRANTY on both parts and labor. All HTD electronics, including our whole-house audio products and subwoofer amplifiers, carry a TWO YEAR WARRANTY on both parts and labor. Visit our Warranty Page for details.
Guarantee
Guarantee
You have 30 days to audition our equipment and return for a full refund. Visit our Guarantee Page for details.
Returns & Exchanges
Returns & Exchanges
HTD products are proudly backed by our 30-Day Guarantee and our 2-5 Year Warranty. Visit our Returns Policy Page for additional returns information.
Delivery and Shipping
Delivery and Shipping
Get *FREE FedEx Ground shipping, including FedEx Home Delivery, on orders over $750 that are delivered to the contiguous 48 states. Ground shipments to Canada are capped at $60. Visit our Shipping Page for details.
Local Pickup available at our Wylie, TX location:
2750 Capital St
Wylie, TX 75098
Usually ready in 2 hours
Contact Us for more information
KC7 Control Pad
Detailed Description
Detailed Description
Our KC7 wall-mounted control pad, with its LCD TFT screen and backlit buttons, is easy to install and easy to use. And unlike other designs, the KC7 is intuitive and can be used by anyone the first time. The KC7 can be combined with KC6 Keypads on the same system.

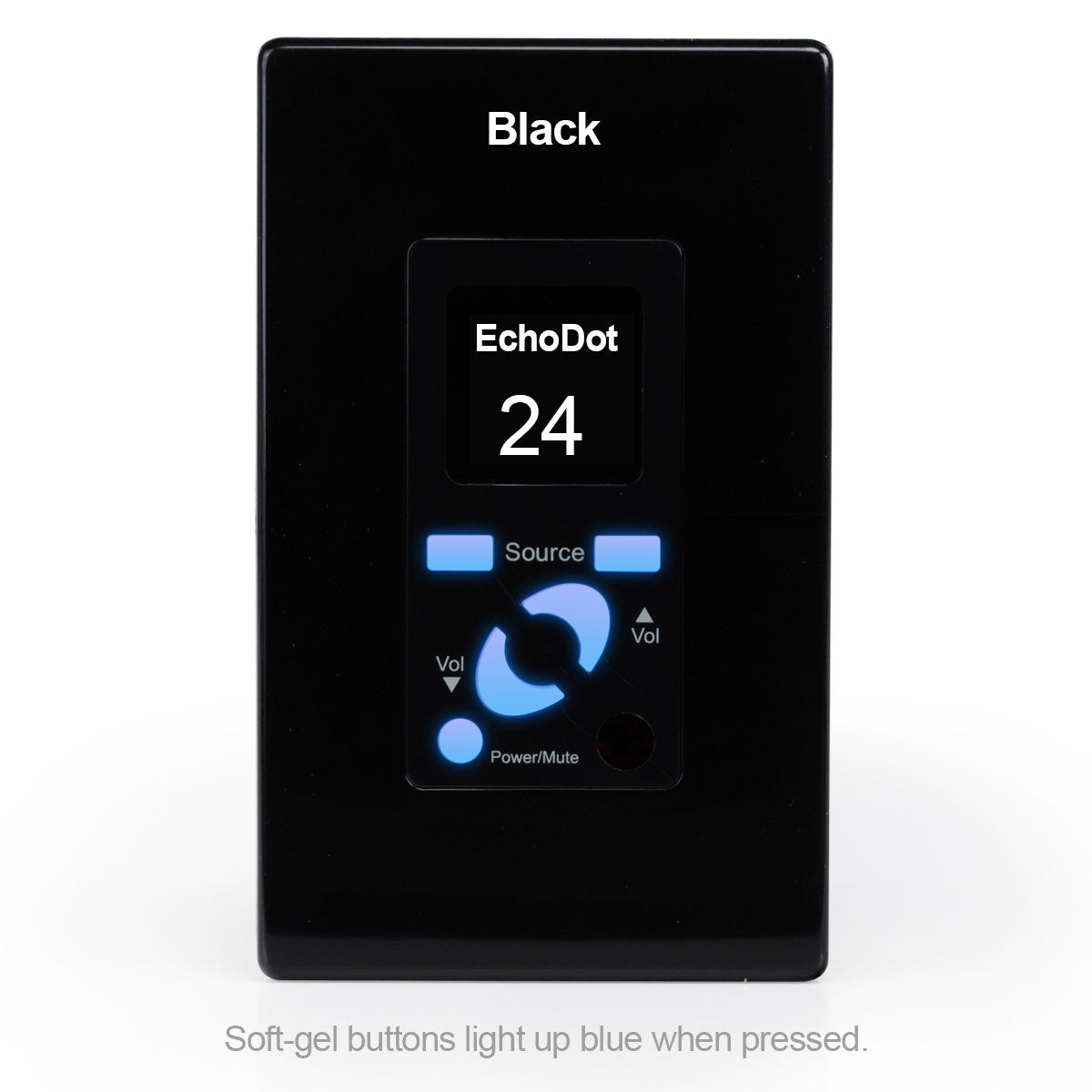

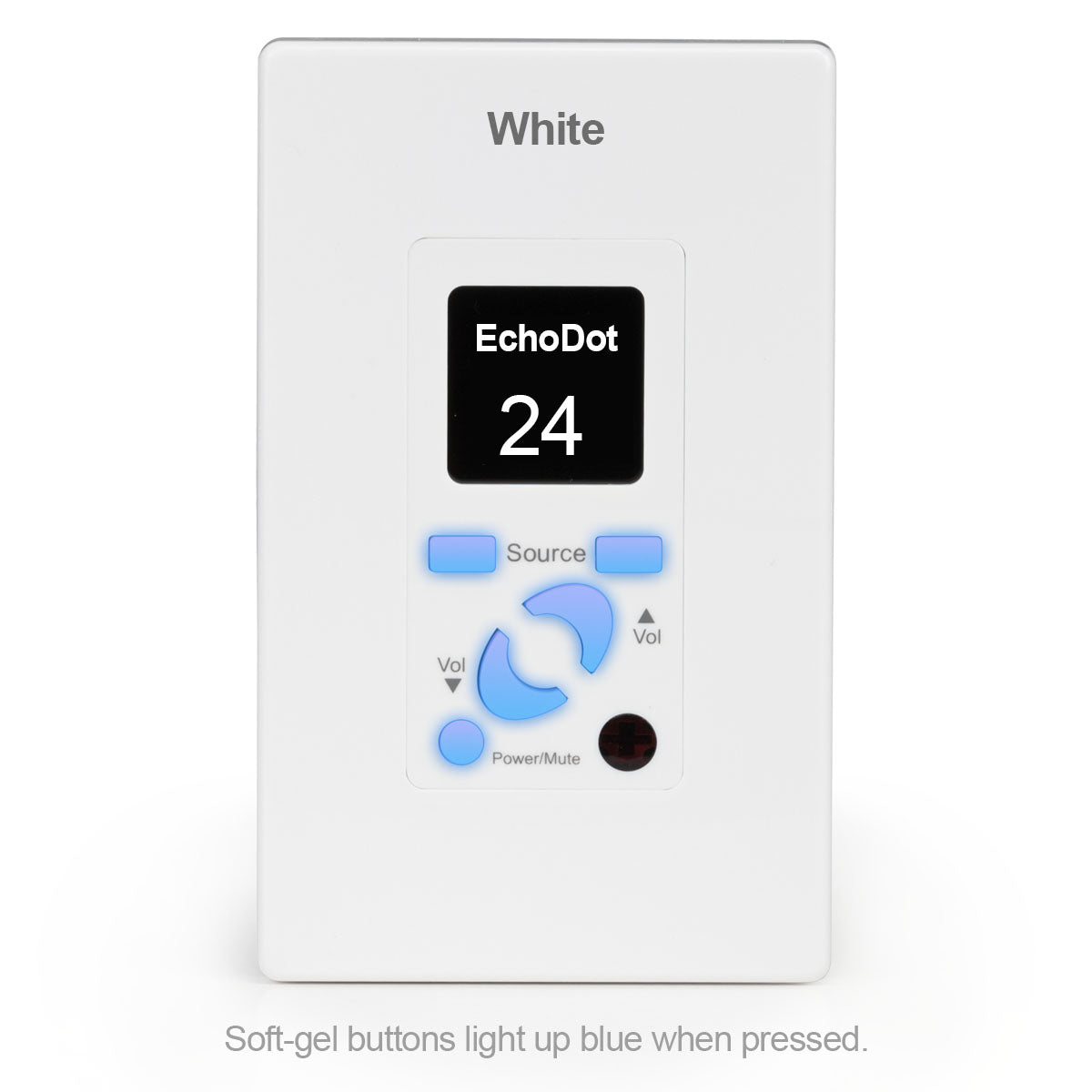

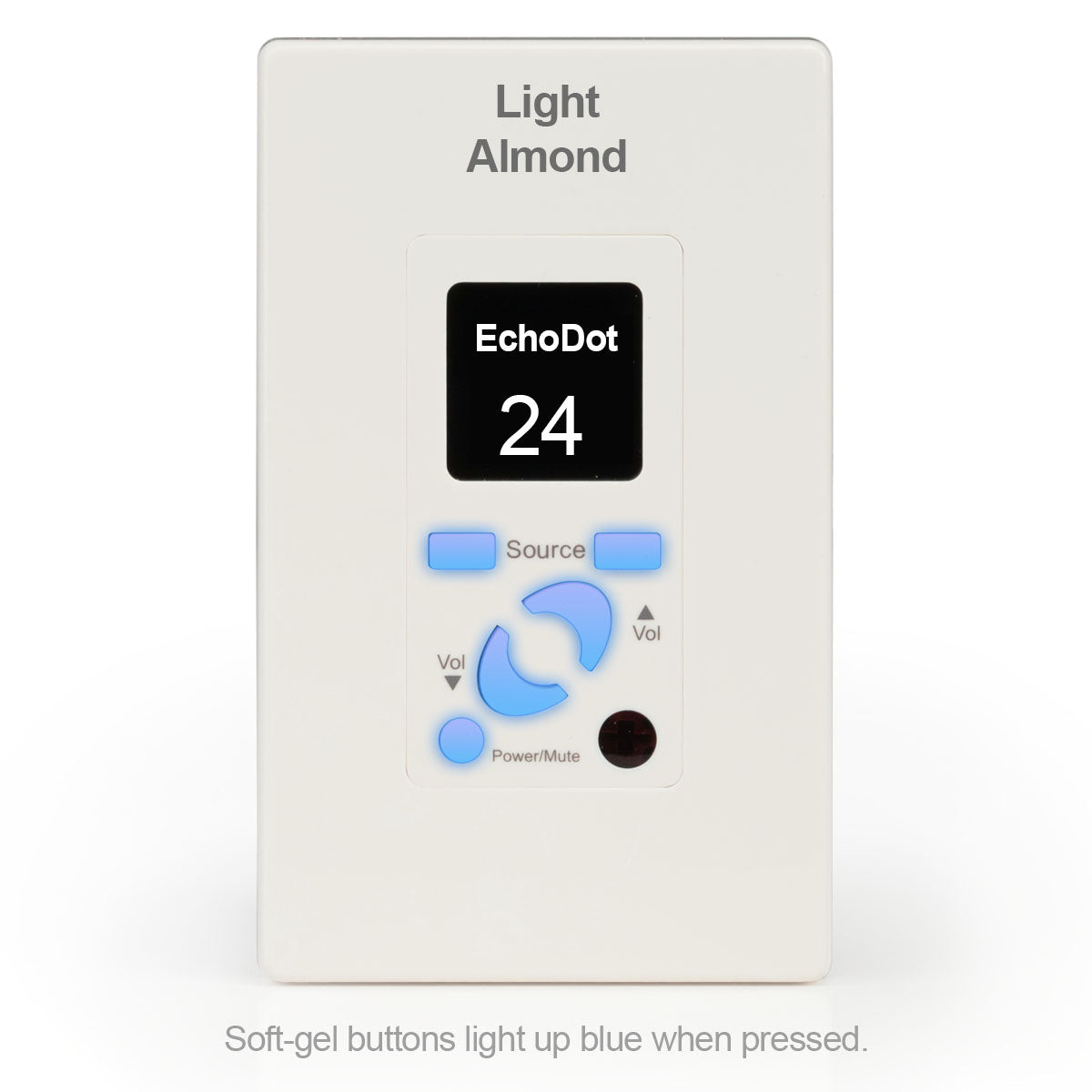

Simply push one of the six soft-gel buttons to select the source you want to hear and control volume with similar up/down buttons. You can easily put the system into "party mode" by pressing a source button for five seconds. All zones, whether currently turned on or off, are immediately switched to on and with that source selected. Volume in each zone returns to the last volume set in that zone.
Press the Power/Mute button once to put a zone into mute. Press it for one second and that zone is turned off. Press it for three seconds and all zones are turned off.
Enter "set-up" mode by pressing both volume buttons at the same time for three seconds. While in set-up mode, you can adjust treble, bass, and balance, adjust color for both background and text, and control the LCD screen's intensity when both active and in sleep mode (including turning the screen completely off).

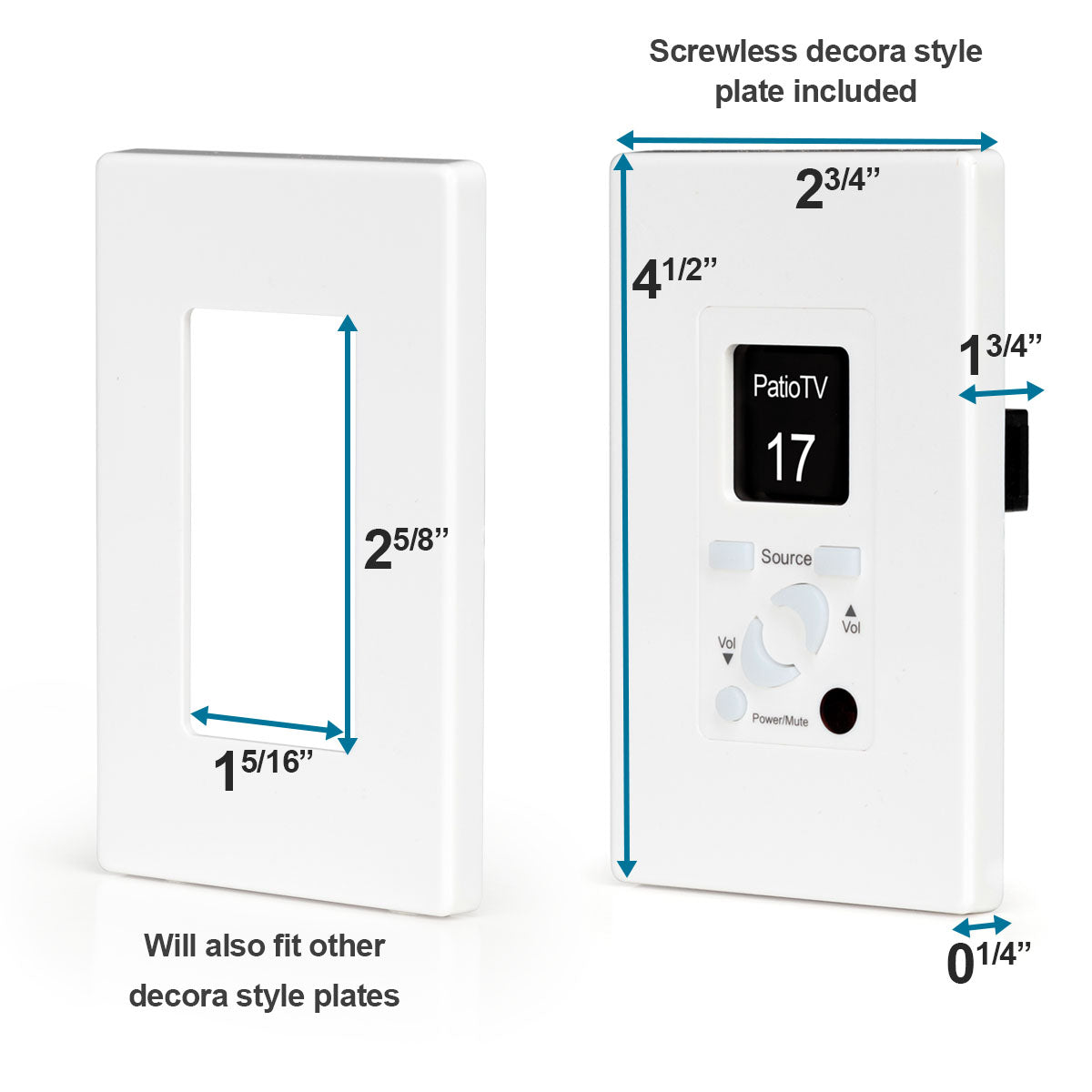

The KC7 is designed to fit a Decora-style cutout. We provide an attractive "screwless" wall plate, but you can instead choose to install the KC7 using your own Decora-style wall plate, including a multi-gang plate. The KC7 connects to the MC-66 or MCA-66 via Cat-5 (or higher) cable. Each KC7 includes two RJ-45 inputs so that up to four control pads can be "daisy chained" together in the same zone.
Each KC7 includes an IR (infra-red) receiver that transmits signals received from any IR remote control (operating in the 37.5 to 56 kHz band) back to the controller. Using IR emitters connected to the back of the MC-66 or MCA-66 controller and positioned in front of source components located near the controller, it is possible to control a component using its remote control from any room that includes a KC7, i.e. you can control centrally located devices from within each zone.
