Mount Kit for Echo Dot Gen 5

SKU DOT KIT 5

New! . . . Mount it. Power it. Hear it . . . through your stereo, home theater, or whole-house audio system.

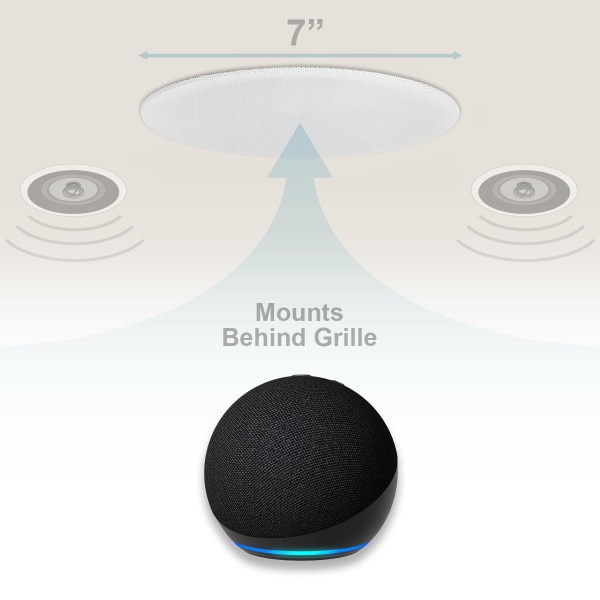

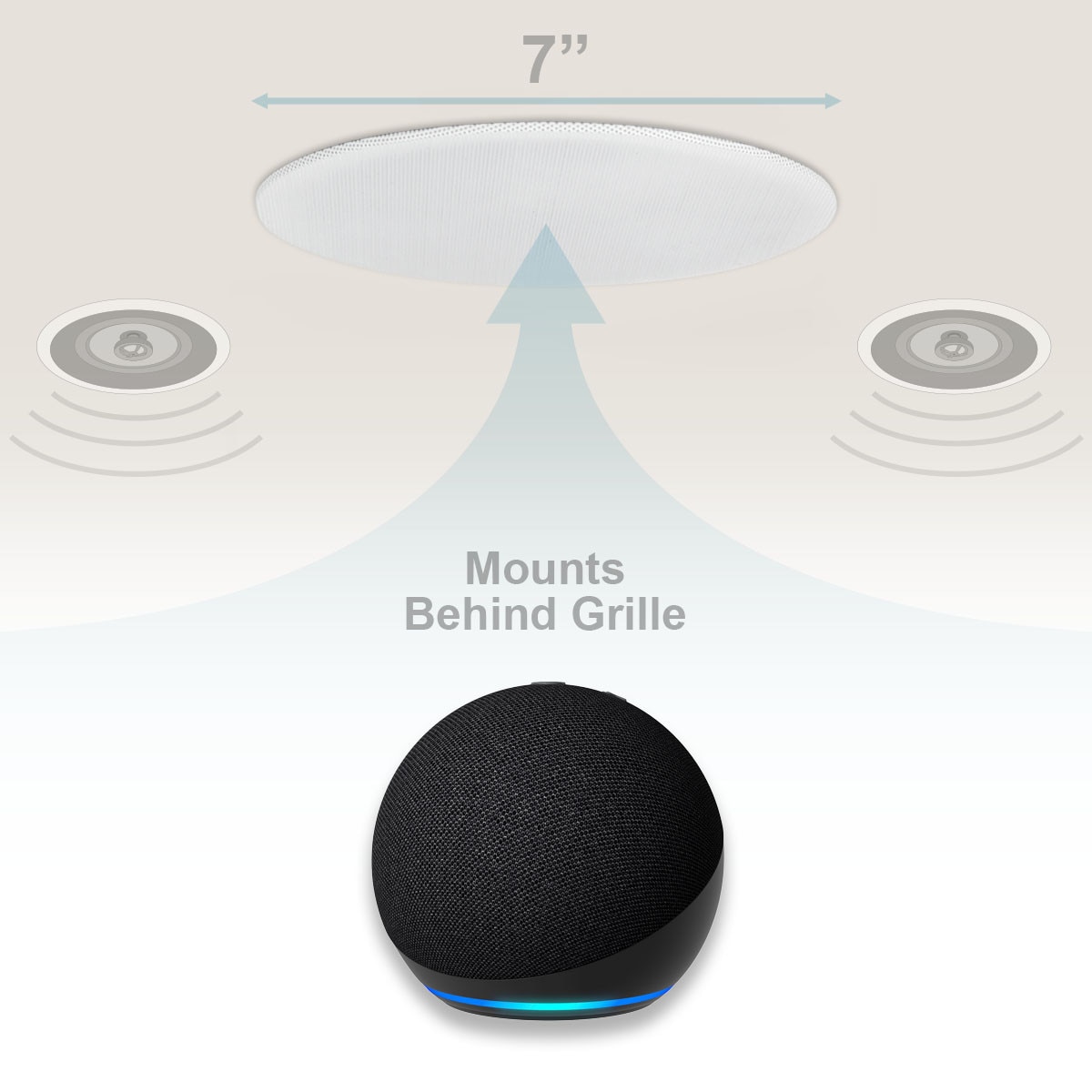

Our innovative solution provides all you need to custom install your Amazon Echo Dot Gen 5 (also works with Gen 3 and 4) into the ceiling or wall of any room and extend Alexa's Bluetooth audio output into your own speakers. A single Cat cable provides power for the Echo Dot and BTX Bluetooth receiver, while simultaneously carrying its audio signal back to your audio equipment.

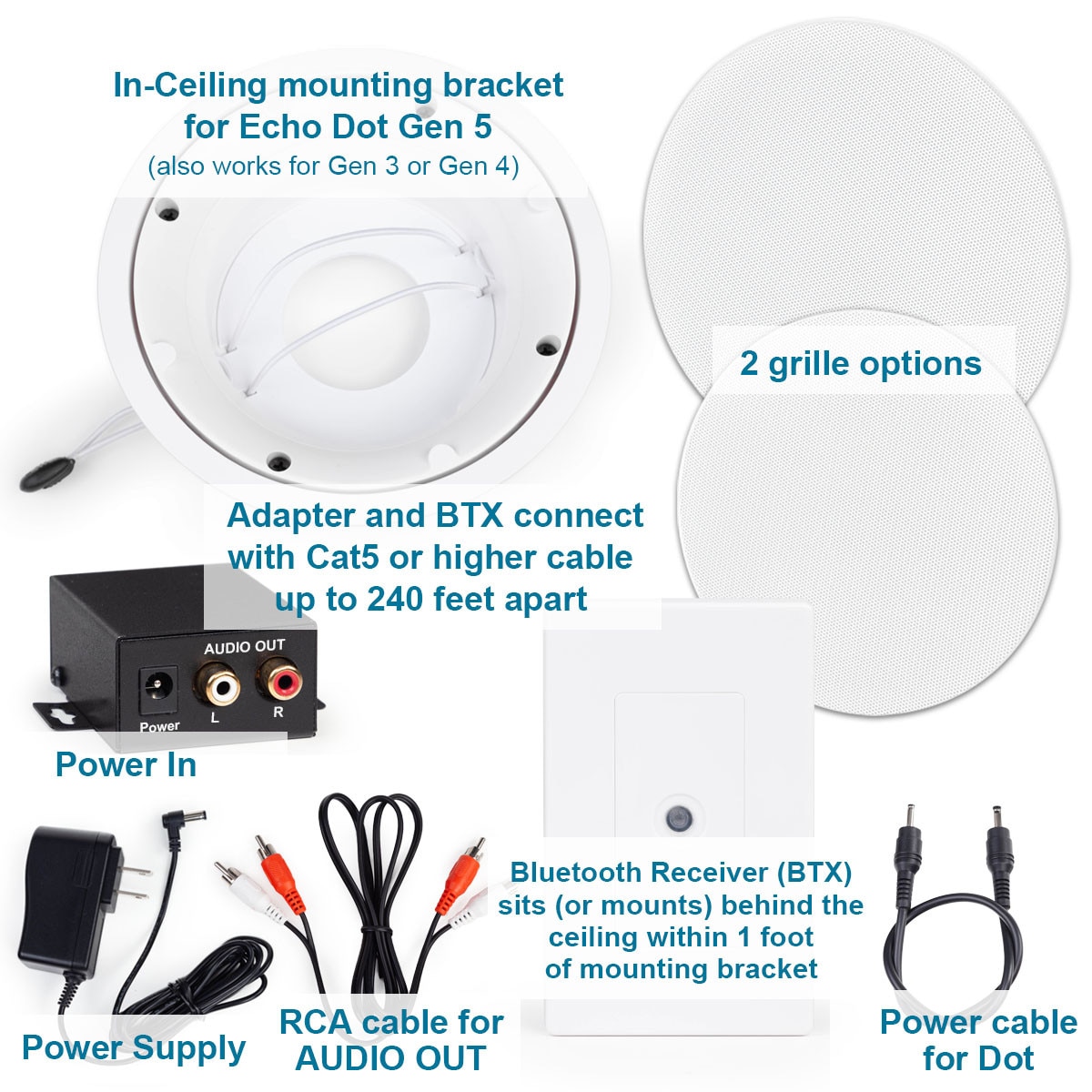

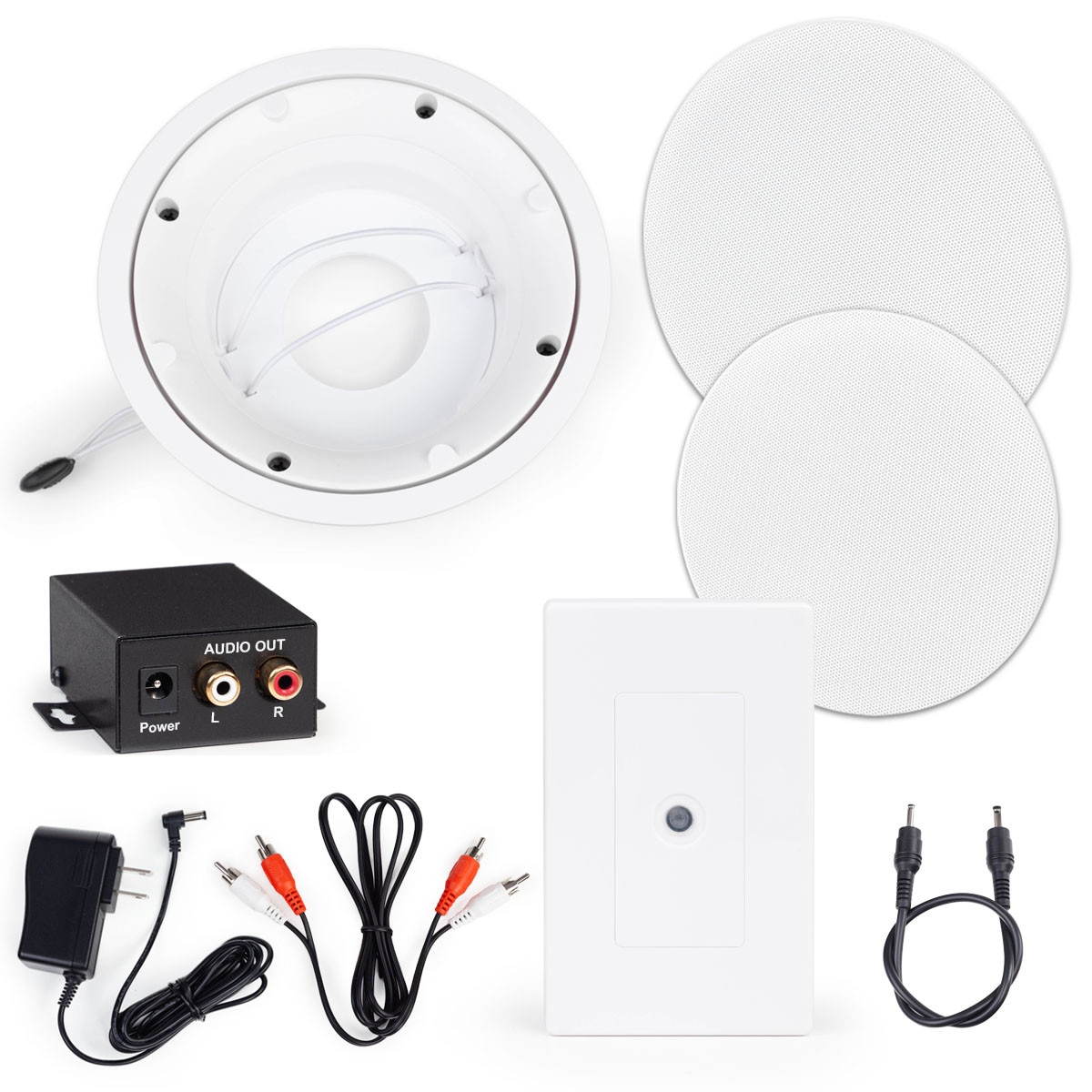

Kit includes:

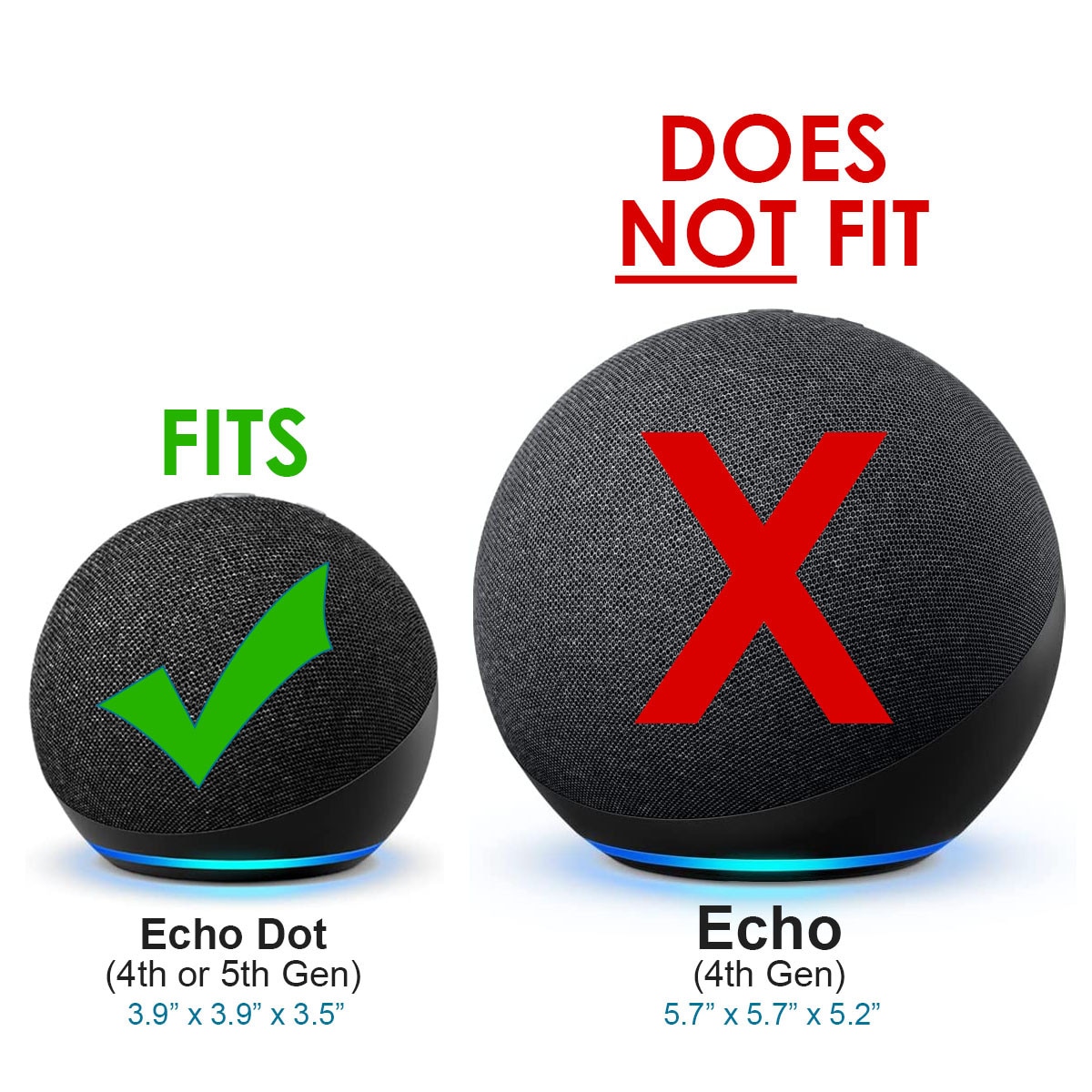

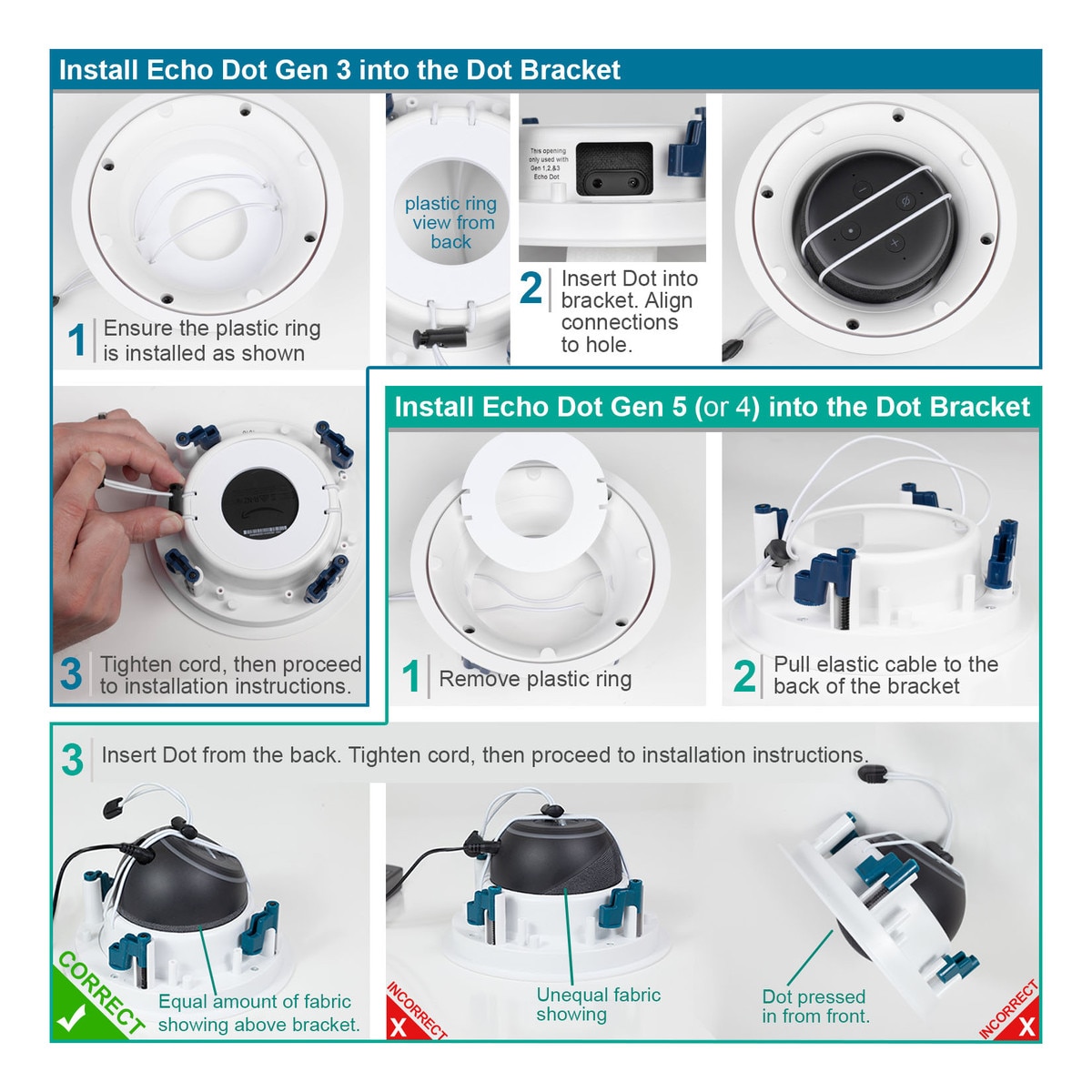

  • Ceiling/Wall mount bracket that securely holds Amazon Echo Dot Gen 5 (also works with Gen 3 and Gen 4)

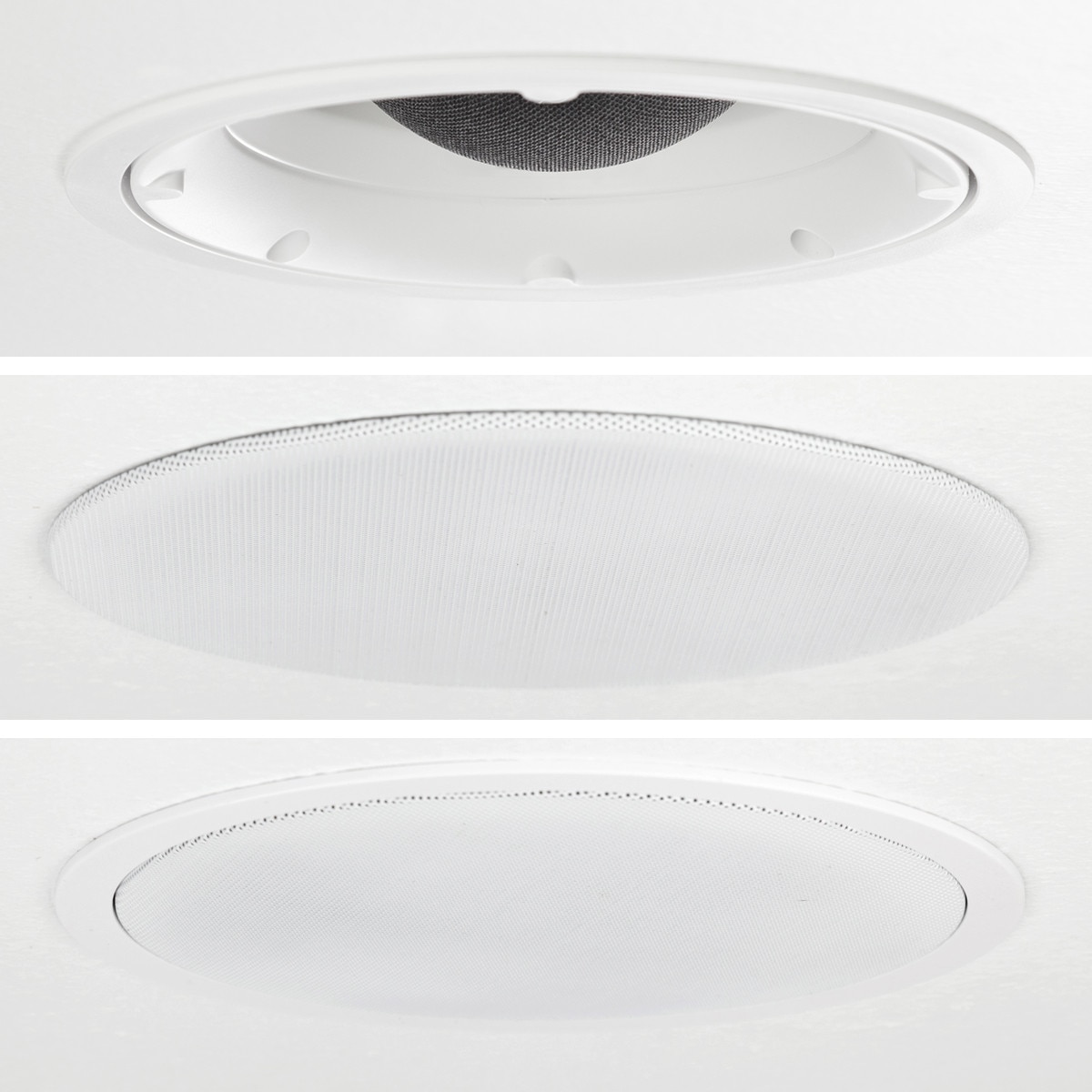

  • 2 grille cover options (one with modest trim similar to canned lighting; one "trimless" grille that covers the entire mount- same as our HDX and SDX speaker lines)
  • UL listed 24V power supply covers long range (power is converted to 12V for the Echo Dot)
  • Custom adapter: Stereo RCA audio output (with RCA patch cable) and power port for power supply
  • BTX Bluetooth Receiver with 12V power output port (with cable) for the Alexa Dot 3rd, 4th, and 5th Gen.

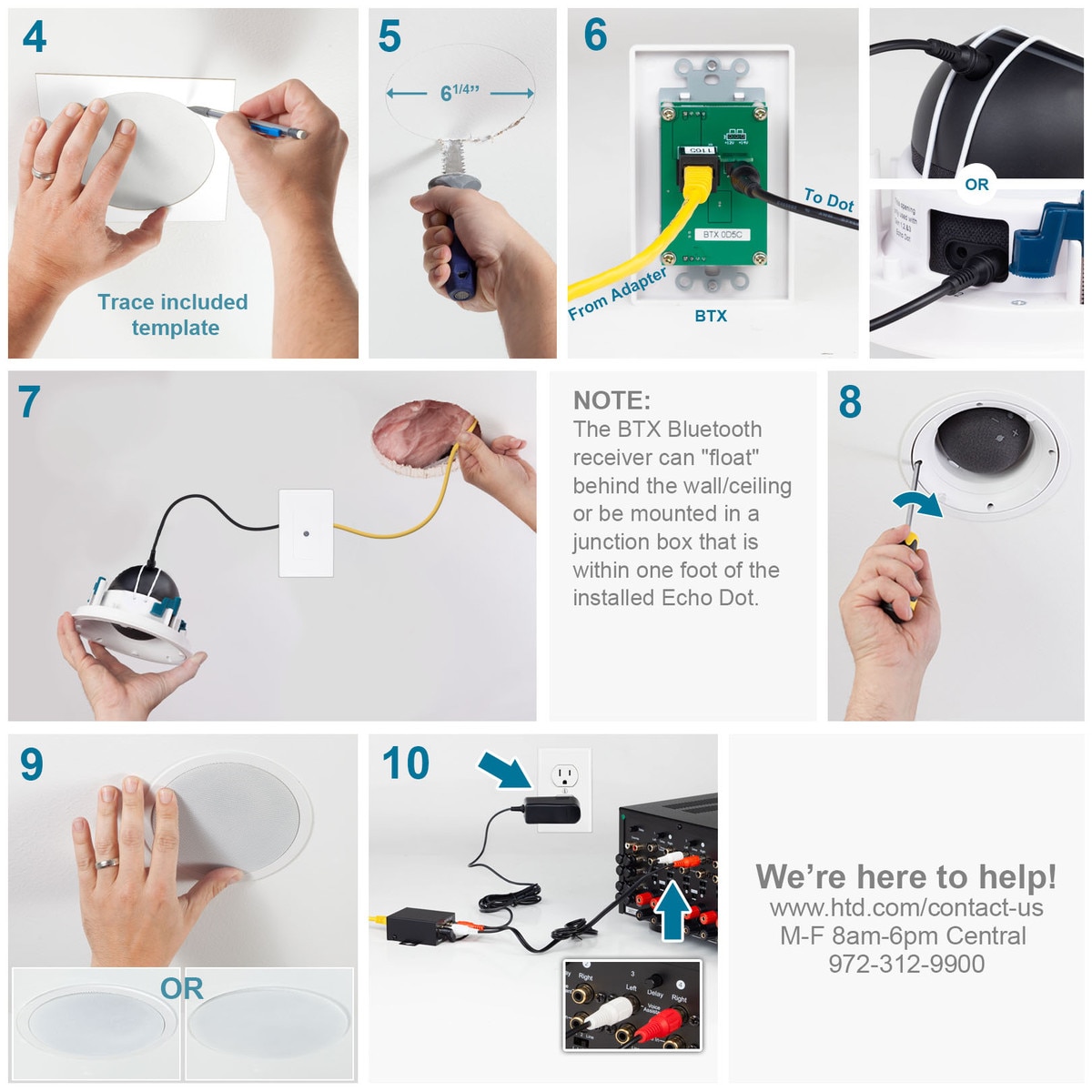

Custom adapter and BTX are connected together with Cat 5 (or higher) cable over a distance up to 240 feet.

A separate model is available for Echo Dot 1st Gen & 2nd Gen as well as a model for Echo Dot Gen 3 and Gen 4 that does not utilize Bluetooth.

$119.00
QuantityPrice
1 – 3$119.00
4 – 9$113.05
10 +$107.10
(0)No Reviews yet
Back

Details


Best uses:

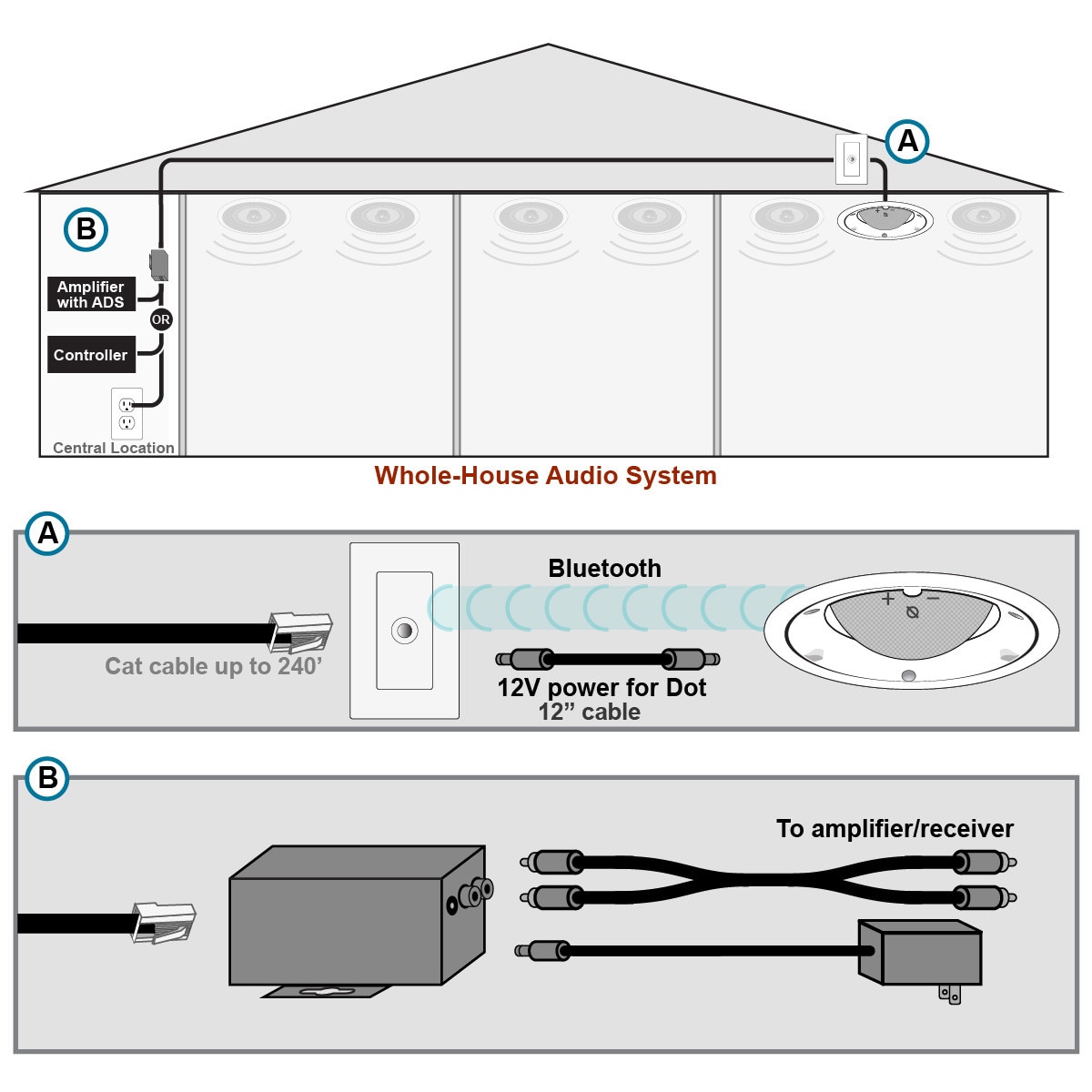

  • Connect to a Whole House Audio system. Run a single Cat cable from your centralized system to every location in which you'd like to install an Echo device. Consider using the multi-channel amplifier DMA-1240ADS if you plan to install one or more Alexa devices, or a single stereo amplifier PLA-240ADS to amplify the speakers in those zones if you'd like the Echo device to automatically take priority over whatever source is currently playing within a zone.
  • Connect to your home theater receiver or stereo receiver. The Echo device provides another source you can select on your receiver. Alexa and the streaming audio from the Echo device is then heard with the full power and acoustics of your existing speakers.
  • Bonus use! If you use an Eero Wifi network, the Echo Dot 5 also acts as a wireless WiFi extender . . . and a perfect location for it is in the ceiling!


PLEASE NOTE: THIS SOLUTION REQUIRES THAT YOU PAIR A DEVICE OVER BLUETOOTH. IF YOUR AMAZON ALEXA OR GOOGLE HOME DEVICE INCLUDES A SPEAKER, IT WILL BE DISABLED AND YOU WILL ONLY HEAR THE AUDIO SIGNAL ON THE SYSTEM TO WHICH YOU HAVE CONNECTED A CABLE FROM THE “AUDIO OUT”.


PLEASE NOTE: IF BUZZING IS HEARD, MAKE SURE THE CAT CABLE IS FULLY INSERTED IN THE RJ45 PORTS LOCATED ON THE BACKSIDE OF THE BTX PANEL AND ADAPTER BOX.

Back

Owner's Manual

Dot Kit 5 Owner's Manual (1 MB PDF)
