Mount Kit for Echo Dot Gen 3 or 4

SKU DOT KIT 34

recently updated! . . . Mount it. Power it. Hear it . . . through your stereo, home theater, or whole-house audio system.

Our innovative solution provides all you need to custom install your Amazon Echo Dot *Gen 3 or*Gen 4 into the ceiling or wall of any room and extend Alexa's analog audio output into your own speakers. A single Cat cable carries both the power for the Dot and its audio signal back to your equipment over a distance up to 240 feet.

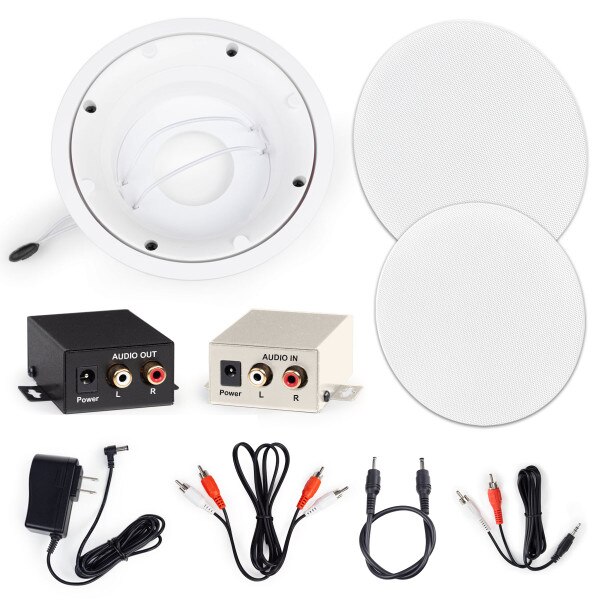

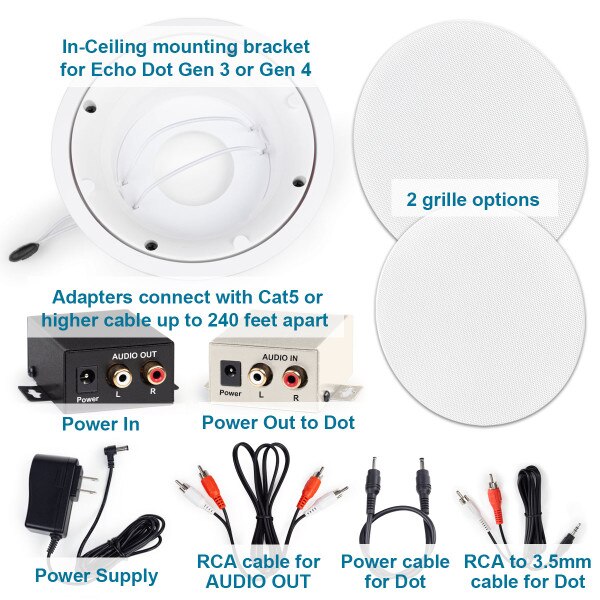

Kit includes:

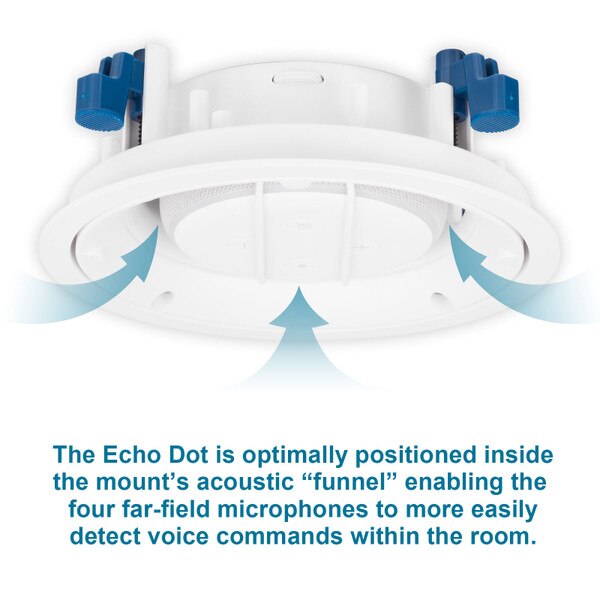

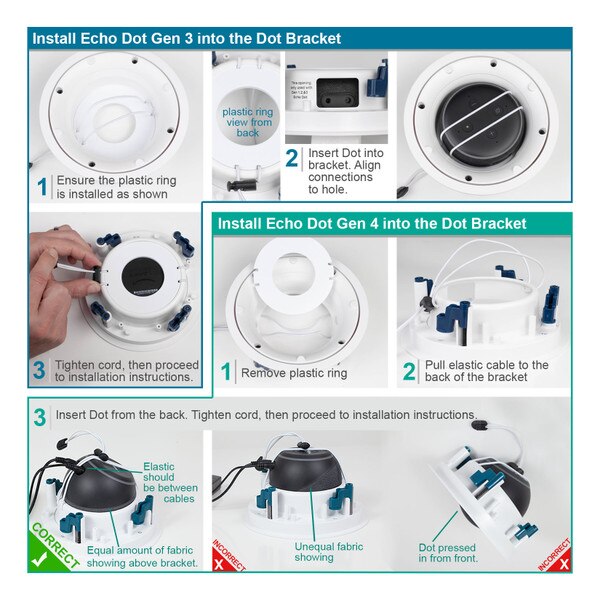

  • Ceiling/Wall mount bracket that securely holds Amazon Echo Dot Gen 3 (puck shape) or Gen 4 (spherical shape)

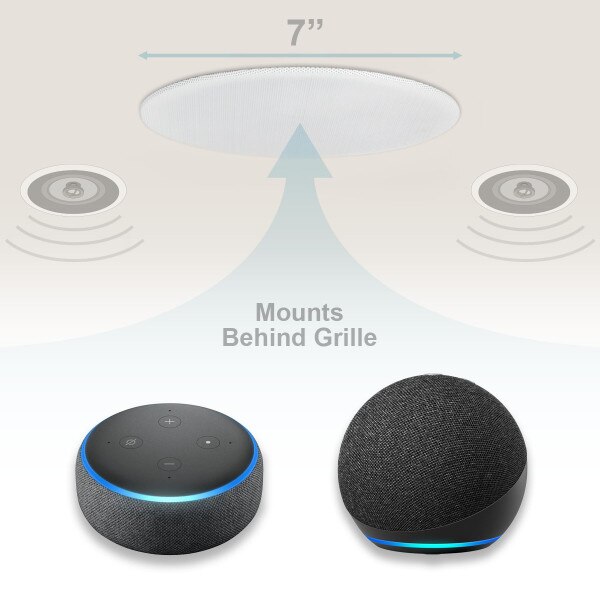

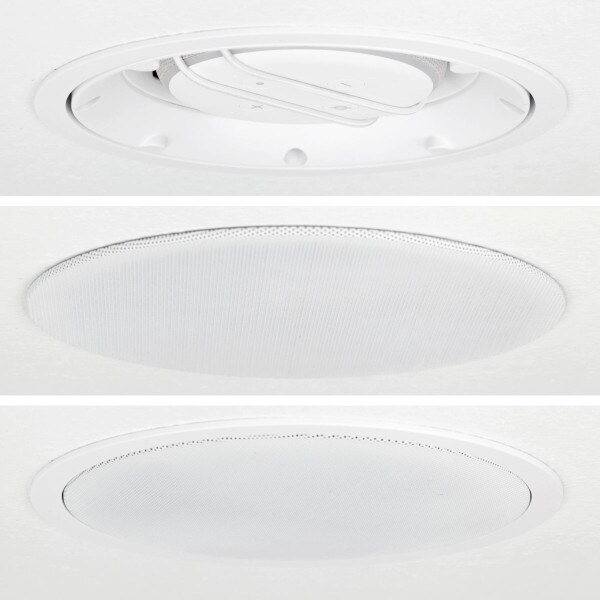

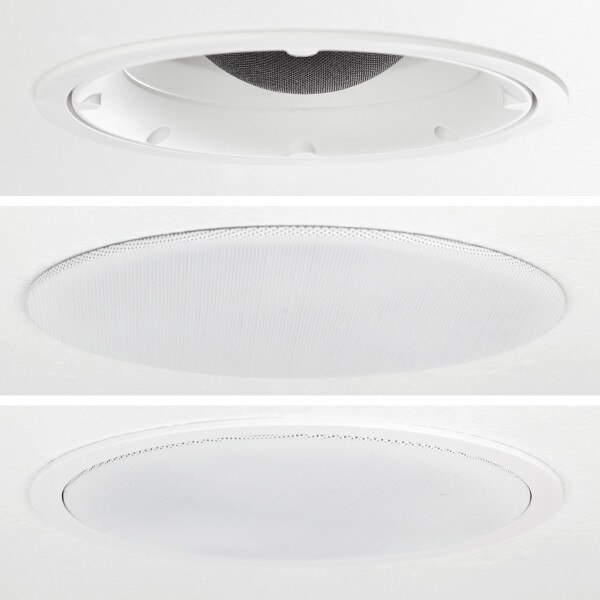

  • 2 grille cover options (one with modest trim similar to canned lighting; one "trimless" grille that covers the entire mount- same as our HDX and SDX speaker lines)
  • UL listed 24V power supply
  • Custom adapter: Stereo RCA audio output (with RCA patch cable) and power port for power supply
  • Custom adapter: Stereo RCA audio input (with RCA to 3.5mm patch cable) and 12V power output port (with cable) for the Alexa Dot, 3rd and 4th Gen
  • Custom adapters are connected together with Cat 5 (or higher) cable over a distance up to 240 feet

*Amazon has discontinued making the Gen 3 and Gen 4, although they are still available on some websites. We recommend purchasing your Echo Dots prior to ordering this kit.

A separate model is available for Echo Dot 1st Gen & 2nd Gen, and Echo Dot Gen 5.
$79.00
QuantityPrice
1 – 3$79.00
4 – 9$75.05
10 +$71.10
(0)No Reviews yet
Back

Details


Best uses:

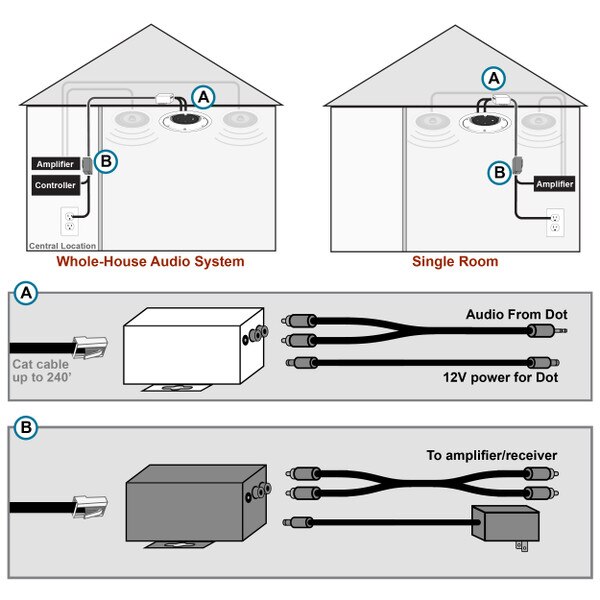

  • Connect to a Whole House Audio system. Run a single Cat cable from your centralized system to every location in which you'd like to install an Echo device. Consider using the multi-channel amplifier DMA-1240ADS if you plan to install one or more Alexa devices, or a single stereo amplifier PLA-240ADS to amplify the speakers in those zones if you'd like the Echo device to automatically take priority over whatever source is currently playing within a zone.
  • Connect to a stereo amplifier as part of a Hybrid Wireless system for independent zones that can be linked together wirelessly. Run a single Cat cable from your PLA-240ADS stereo amplifier to the location in which you'd like to install the Echo device.
  • Connect to your home theater receiver or stereo receiver. The Echo device provides another source you can select on your receiver. Alexa and the streaming audio from the Echo device is then heard with the full power and acoustics of your existing speakers.
  • Bonus use! If you use an Eero Wifi network, the Echo Dot 4 also acts as a wireless WiFi extender . . . and a perfect location for it is in the ceiling!


PLEASE NOTE: THIS SOLUTION REQUIRES THAT YOU PLUG INTO THE 3.5MM AUDIO OUTPUT ON THE ECHO DOT. THE SPEAKER ON THE DOT WILL BE DISABLED AND YOU WILL ONLY HEAR THE AUDIO SIGNAL ON WHATEVER SYSTEM YOU PLUG INTO.


PLEASE NOTE: IF BUZZING IS HEARD, MAKE SURE THE 3.5MM CABLE IS FULLY INSERTED INTO THE DOT.

Back

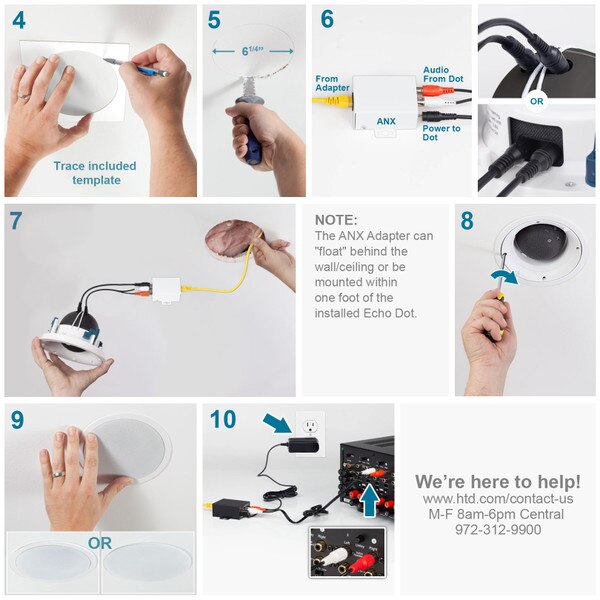

Owner's Manual

Dot Kit Gen 3 or Gen 4 Owner's Manual (1.3 MB PDF)
