BTX Bluetooth Receiver and Audio Extension Kit

SKU BTX

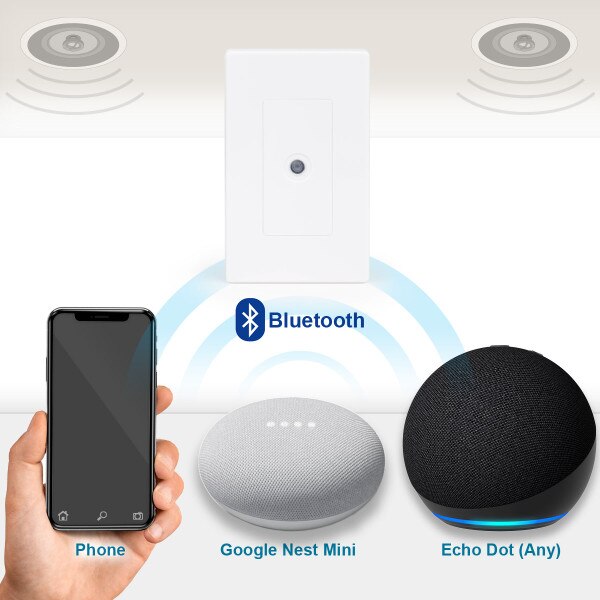

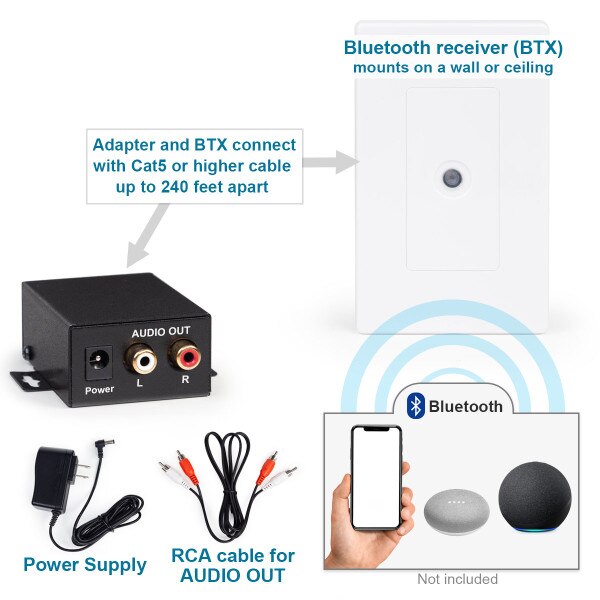

Install the Bluetooth receiver in one location and use a Cat 5 (or better) cable to connect it to the power injector/audio output box located up to 240 feet away. Wirelessly pair your Bluetooth device (phone, Google Nest Mini, Echo Dot, etc.) to the Bluetooth receiver. Connect the audio output to a stereo or centrally located whole house audio controller or amplifier.

Includes a 6 foot stereo RCA cable.

Please note that this extension kit extends the stereo audio output, not the range of Bluetooth, which is still around 10 meters (30 feet).

$89.00
(0)No Reviews yet

New Product ETA April, 2024

Details


Best uses:

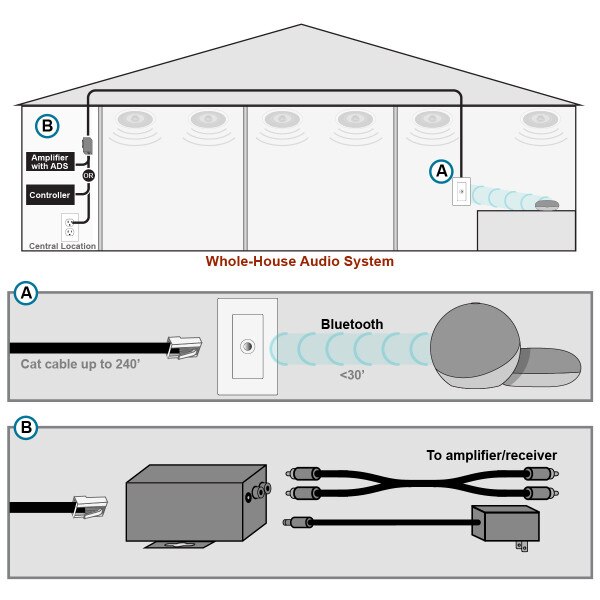

  • Connect to a Whole House Audio system. Run a single Cat cable from your centralized system to every location in which you'd like to install a BTX Bluetooth Receiver. Consider using the multi-channel amplifier DMA-1240ADS or stereo amplifier PLA-240ADS to amplify the speakers in those zones if you'd like the BTX to automatically take priority over whatever source is currently playing within a zone.
  • Connect to your home theater receiver or stereo receiver. The BTX Bluetooth Receiver becomes another source you can select on your receiver. Your voice assistant's streaming audio and voice is then heard with the full power and acoustics of your existing speakers.


PLEASE NOTE: THIS SOLUTION REQUIRES THAT YOU PAIR A DEVICE OVER BLUETOOTH. IF YOUR DEVICE INCLUDES A SPEAKER, IT WILL BE DISABLED AND YOU WILL ONLY HEAR THE AUDIO SIGNAL ON THE SYSTEM TO WHICH YOU HAVE CONNECTED THE AUDIO OUT.


PLEASE NOTE: IF BUZZING IS HEARD, MAKE SURE THE CAT CABLE IS FULLY INSERTED IN THE RJ45 PORT LOCATED ON THE BACKSIDE OF THE BTX.
