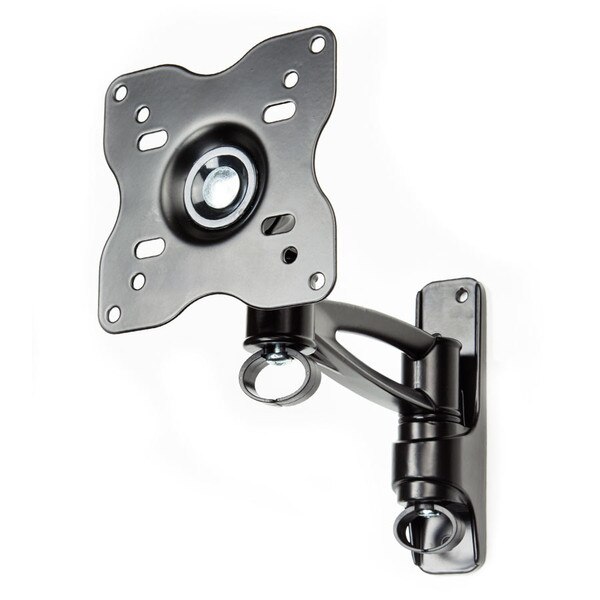

Tilt.  Pan.  Rotate.  Extend.  This HTD super sturdy wall mount speaker bracket includes an extendable arm that can support up to 40 lbs. This new model has better styling than our previous BR1 model and includes one additional adjustment that allows speakers to be tilted and turned at the same time without looking slightly "cock-eyed". The BR-TPRX is best suited for "side wall / front facing" or "side wall / rear facing" installations.

The BR-TPRX is designed to attach to the hardware on the back of our Level TWO and Level THREE bookshelf and center speakers. Its unique design is specifically engineered to securely hold heavy cabinet-style speakers.

The internal ball-and-socket mechanism is tightened by default at the factory to allow some forcible play in the speaker's final positioning. If you find that the speaker "sags" or does not hold its final position, the bracket can be tightened- watch the video.

The mounting plate also works with TVs and monitors that include VESA standard 75mm or 100mm spacing.

(0)No Reviews yet


Speaker mounting holes are spaced 2 1/2" apart.
Speaker can be mounted vertically or horizontally
Speaker plate rotates 360 degrees around post
Ball and socket design allows 180 degree pan and +/- 15 degree tilt.
Must attach to a wall stud or similarly reinforced wall (hardware not included).
Holds up to 40 lbs each (18 kg)
Available only in black
Best for "side wall / front facing" or "side wall / rear facing" installations;  Choose BR-TPR which does NOT include an extendable arm for "rear wall / front facing", "front wall / rear facing" or "side wall / side facing" applications.

Note: The speaker mounting plate is designed to also work well with TVs and monitors that include VESA standard 75mm or 100mm spacing.  Please place your order by phone if you only need a single brackt.
