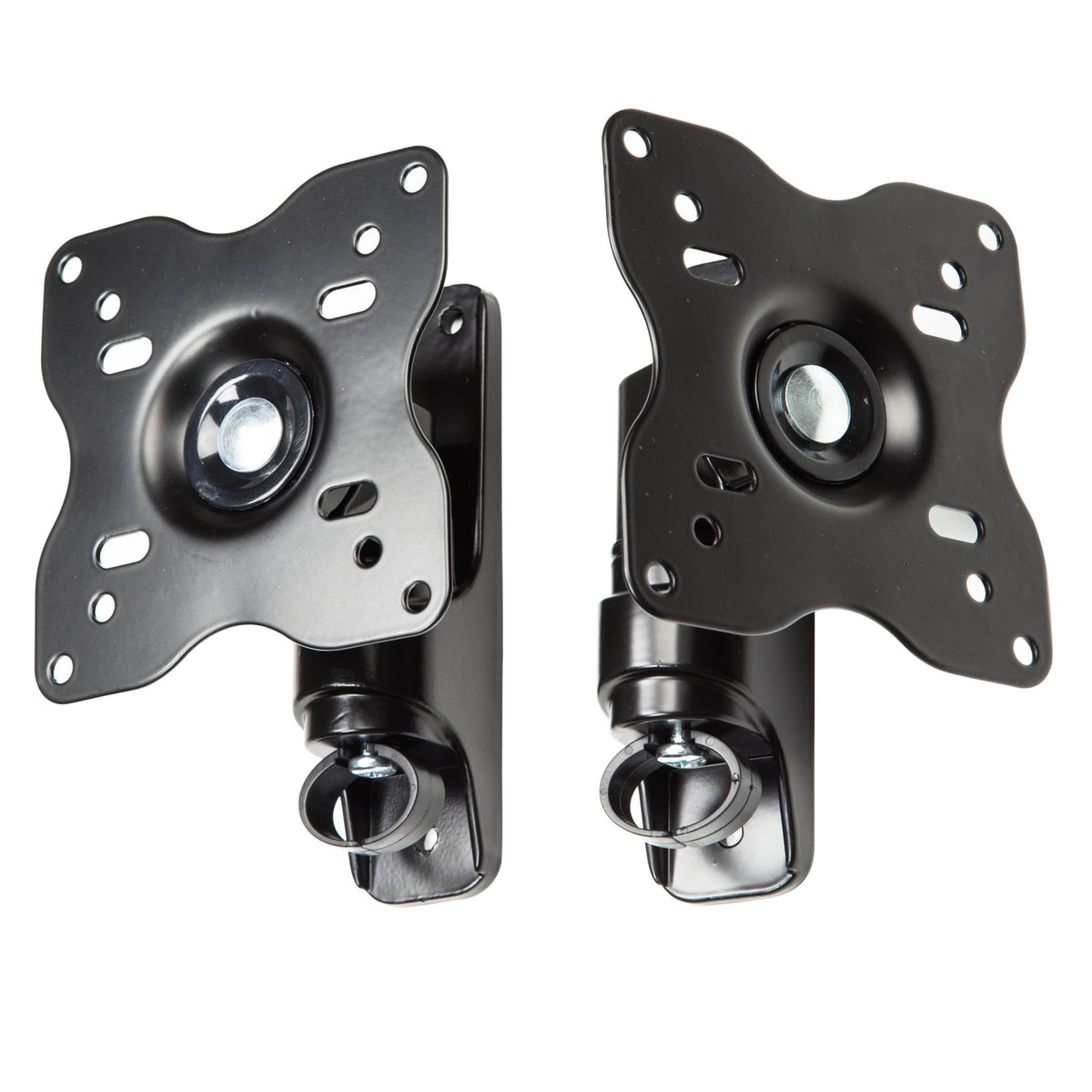

BR-TPR Heavy Duty Brackets
Tilt. Pan. Rotate. This HTD super sturdy wall mount speaker bracket has replaced our popular BR1 bracket. This new model has better styling and includes one additional adjustment that allows speakers to be tilted and turned at the same time without looking slightly "cock-eyed".

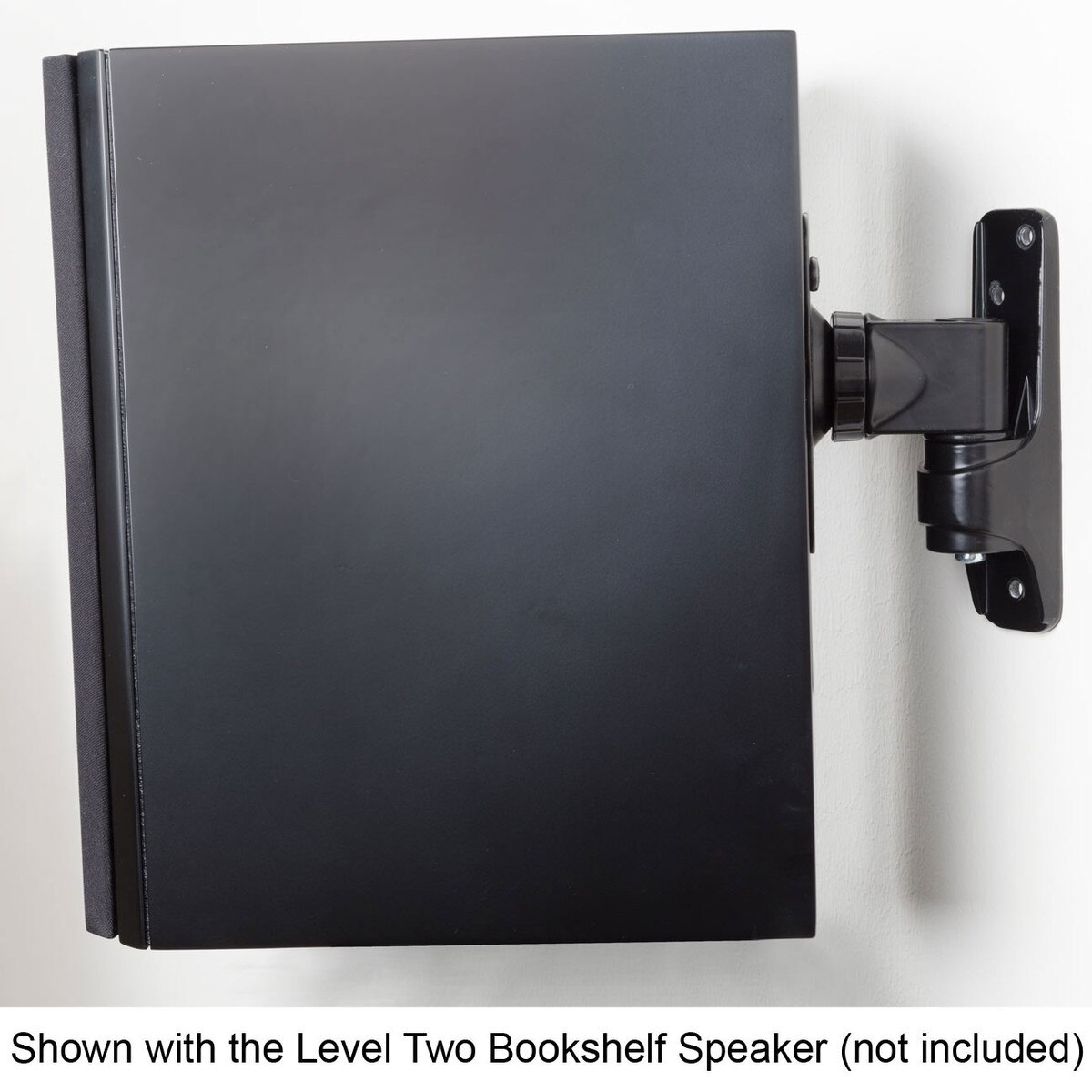

The BR-TPR is designed to attach to the hardware on the back of our Level TWO and Level THREE bookshelf and center speakers. Its unique design is specifically engineered to securely hold heavy cabinet-style speakers. The BR-TPR is best suited for "front wall / rear facing", "rear wall / front facing" or "side wall / side facing" installations.
The internal ball-and-socket mechanism is tightened by default at the factory to allow some forcible play in the speaker's final positioning. If you find that the speaker "sags" or does not hold its final position, the bracket can be tightened- watch the video.

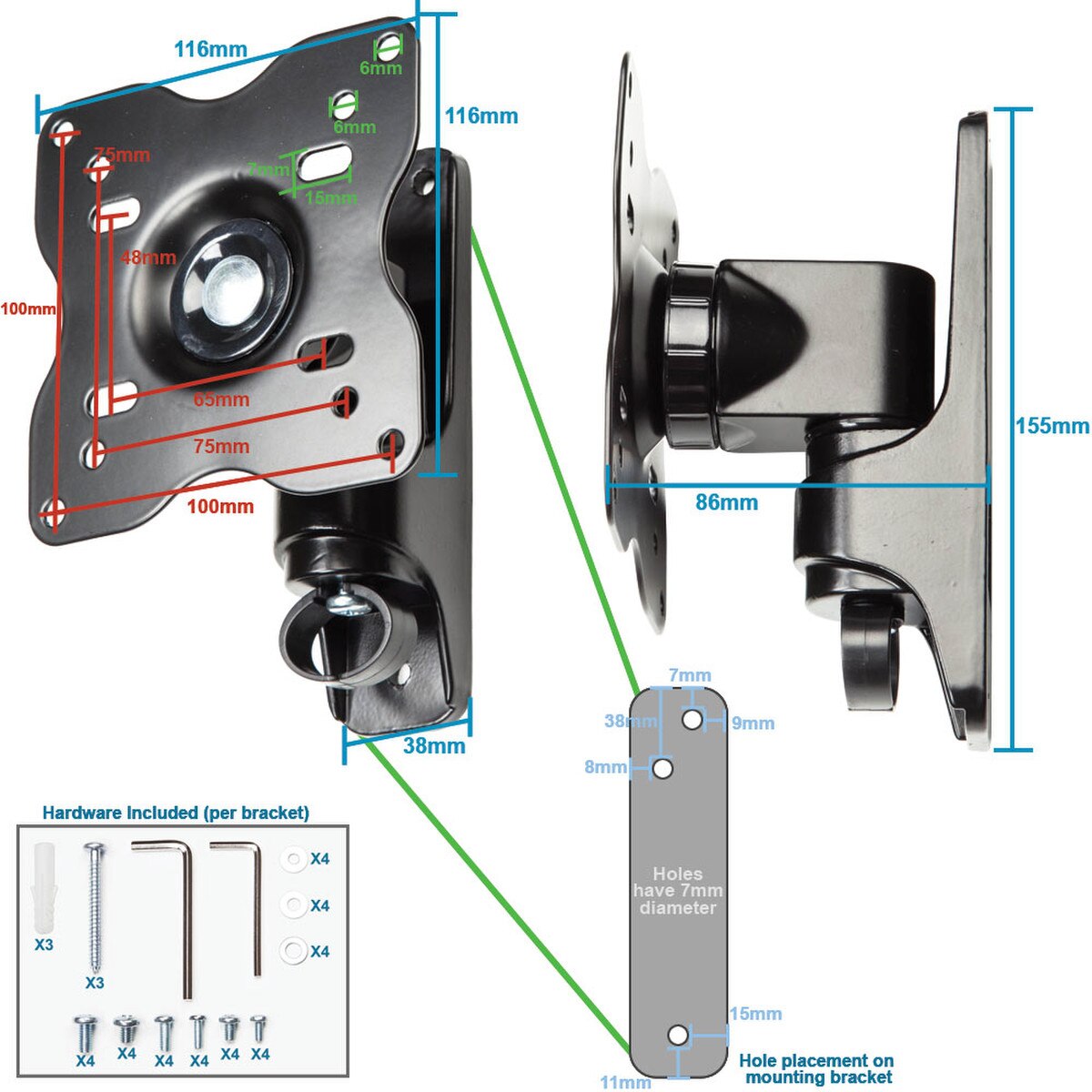

The mounting plate will also work with TVs and monitors that include VESA standard 75mm or 100mm spacing.

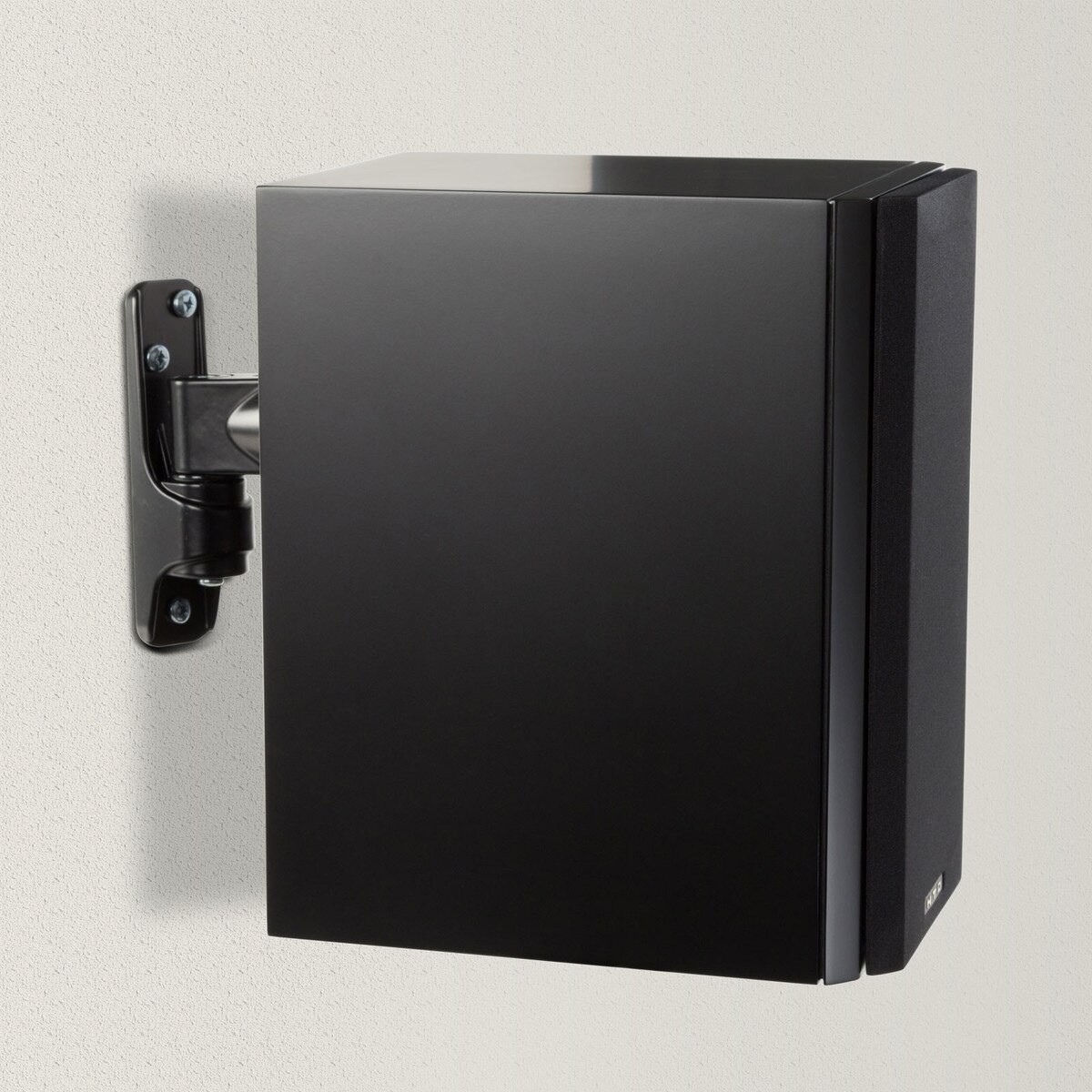

Speaker can be mounted vertically or horizontally
Speaker plate rotates 360 degrees around post

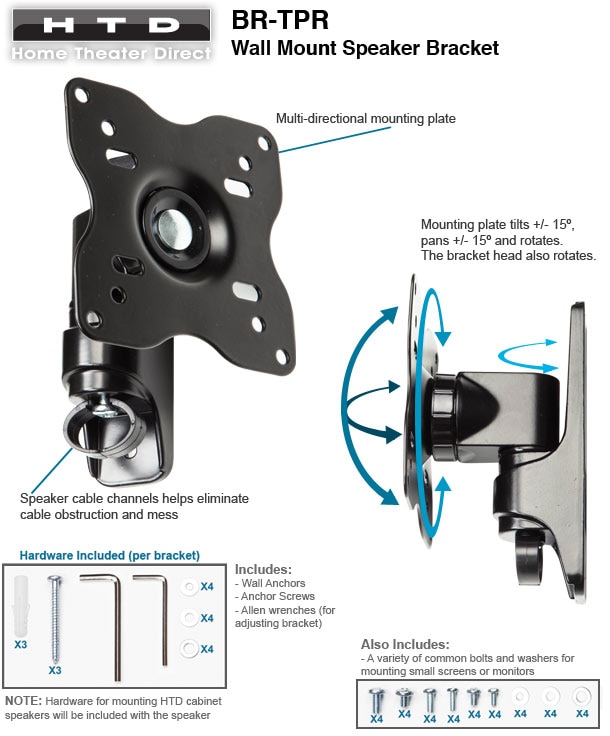

Ball and socket design allows 180 degree pan and +/- 15 degree tilt.
Must attach to a wall stud or similarly reinforced wall (hardware not included).
Holds up to 40 lbs each (18 kg)
Available only in black
Best for "front wall / rear facing", "rear wall / front facing" or "side wall / side facing" installations; Choose BR-TPRX which includes an extendable arm for "side wall / rear facing" and "side wall / front facing" applications.
Note: The speaker mounting plate is designed to also work well with TVs and monitors that include VESA standard 75mm or 100mm spacing.
