Mount Kit for Echo Dot Gen 3 (recommended)

SKU DOT KIT 3

Mount it. Power it. Hear it . . . through your stereo, home theater, or whole-house audio system.

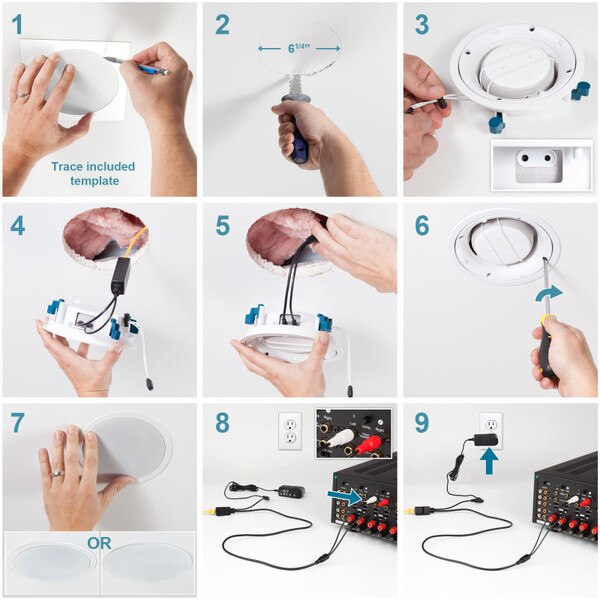

Our innovative solution provides all you need to custom install your Amazon Echo Dot Gen 3 (sold separately at Amazon) into the ceiling or wall of any room and extend Alexa's audio output into your own speakers. A single Cat cable carries both the power for the Dot and its audio signal back to your equipment over a distance up to 200 feet.

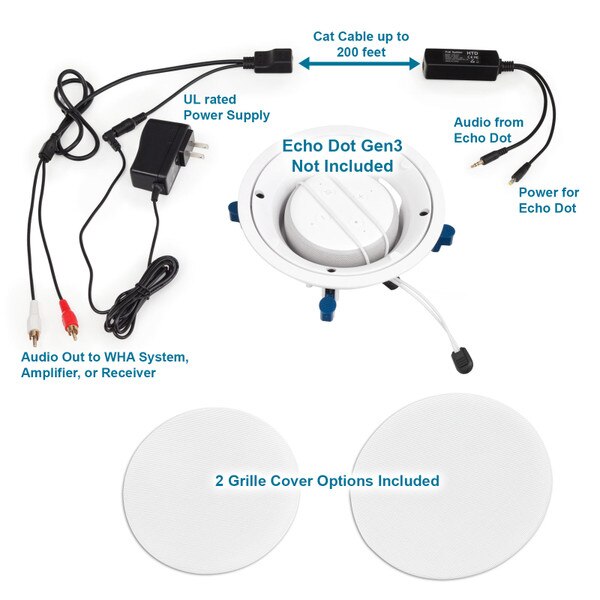

Kit includes:

  • Ceiling/Wall mount bracket that securely holds Amazon Echo Dot Gen 3
  • 2 grille cover options (one with modest trim similar to canned lighting; one "trimless" grille that covers the entire mount- same as our HDX and SDX speaker lines)
  • UL listed 24V power supply
  • Custom stereo RCA audio output and power injector adapter
  • Custom audio/power splitter with stereo 3.5mm audio input and 12V power output (barrel type) for the Echo Dot Gen 3

Works great with auto-switching amplifiers DMA-1240ADS and PLA-240ADS. Interested in creating a decentralized multi-room audio system?  Check out our Hybrid Wireless video.

A separate model is available for Echo Dot 1st Gen & 2nd Gen and Echo Dot 4th Gen. This item is currently limited to 12 per customer; please call for larger quantities.
$65.00
QuantityPrice
1 – 3$65.00
4 – 9$61.75
10 – 12$58.50
(0)No Reviews yet
Back

Details

This kit includes:

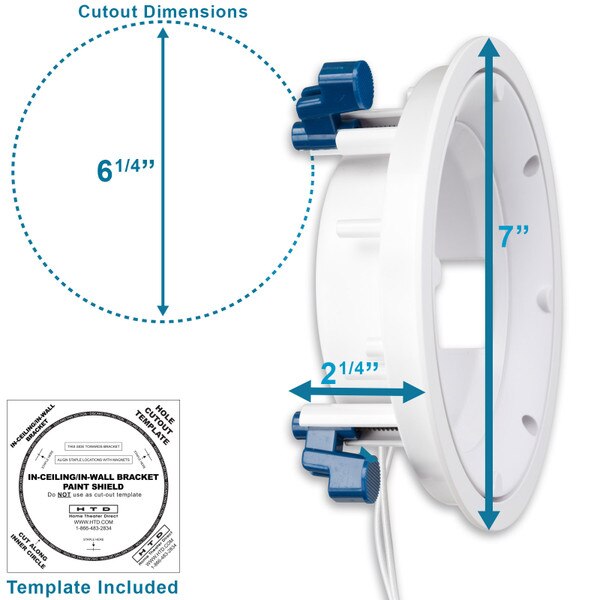

  • Custom Ceiling/Wall Mount Bracket with tightening cord for securely holding an Amazon Echo Dot Gen 3.
  • Two grille cover options: Use the smaller grille to achieve an appearance similar to canned lighting with a modest trim; Use the larger "trimless" grille when you want the installation to disappear into your ceiling; (also looks great without any grille installed)
  • UL listed 24V power supply
  • Custom audio/power injector with stereo RCA connectors for your whole-house audio system, amplifier or home audio receiver
  • Custom audio/power splitter with stereo 3.5mm audio connector and 12V power output  (barrel type) for the Echo Dot, 3rd Gen

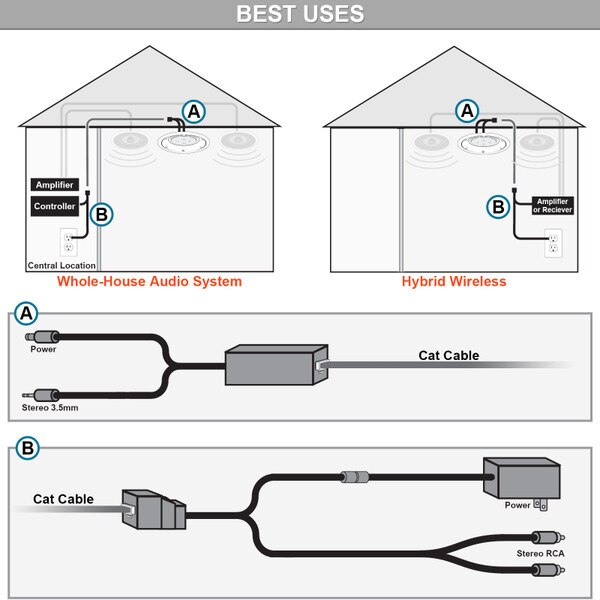

Best uses:

  • Connect to a Whole House Audio system. Run a single Cat cable from your centralized system to every location in which you'd like to install an Echo device.  Consider using the multi-channel amplifier DMA-1240ADS if you plan to install one or more Alexa devices, or a single stereo amplifier PLA-240ADS to amplify the speakers in those zones if you'd like the Echo device to automatically take priority over whatever source is currently playing within a zone.
  • Connect to a stereo amplifier as part of a Hybrid Wireless system for independent zones that can be linked together wirelessly. Run a single Cat cable from your PLA-240ADS stereo amplifier to the location in which you'd like to install the Echo device.
  • Connect to your home theater receiver or stereo receiver. The Echo device provides another source you can select on your receiver. Alexa and the streaming audio from the Echo device is then heard with the full power and acoustics of your existing speakers.


PLEASE NOTE: THIS SOLUTION REQUIRES THAT YOU PLUG INTO THE 3.5MM AUDIO OUTPUT ON THE ECHO DOT. THE SPEAKER ON THE DOT WILL BE DISABLED AND YOU WILL ONLY HEAR THE AUDIO SIGNAL ON WHATEVER SYSTEM YOU PLUG INTO.

Back

Owner's Manual

Dot Kit 3 Owner's Manual (1 MB PDF)

Ratings & Reviews

No reviews available

Be the first to Write a Review
